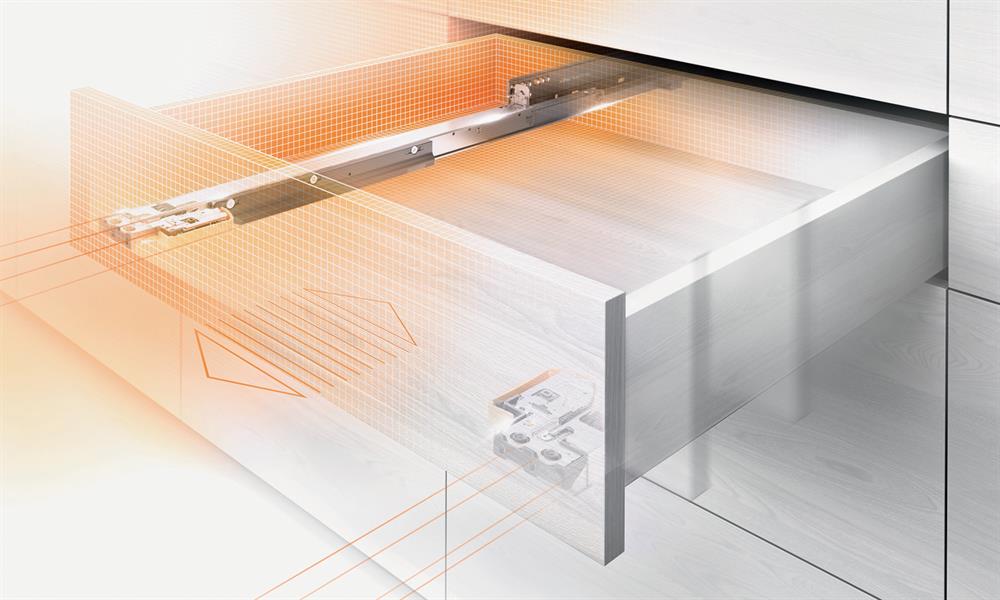

Blum Movento

View Blum Resources & Technical Information

Blum's Movento low friction runners make opening and closing drawers even more effortless than before. The 4-dimensional setting option makes adjusting the position of the drawer front as easy as 1-2-3-4.

40 kg and 60 kg carrying capacity, excellent sag values, high stability and Tip-On, Blumotion & Servo Drive compatibility means Movento runners can be used in many applications.

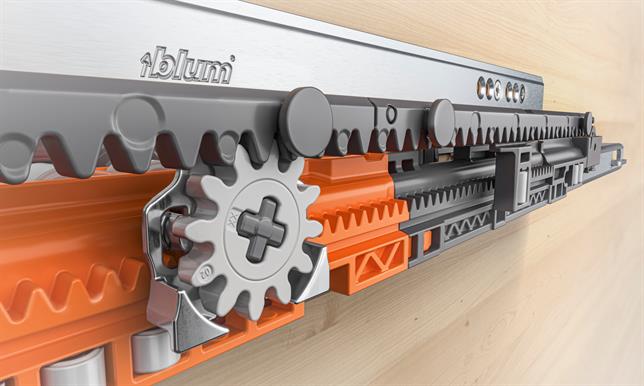

All Movento runners feature synchronised feather-light glide action, side, height, tilt and depth adjustment, together with built-in width and depth tolerance compensation.

Read More About Blum Movento >>

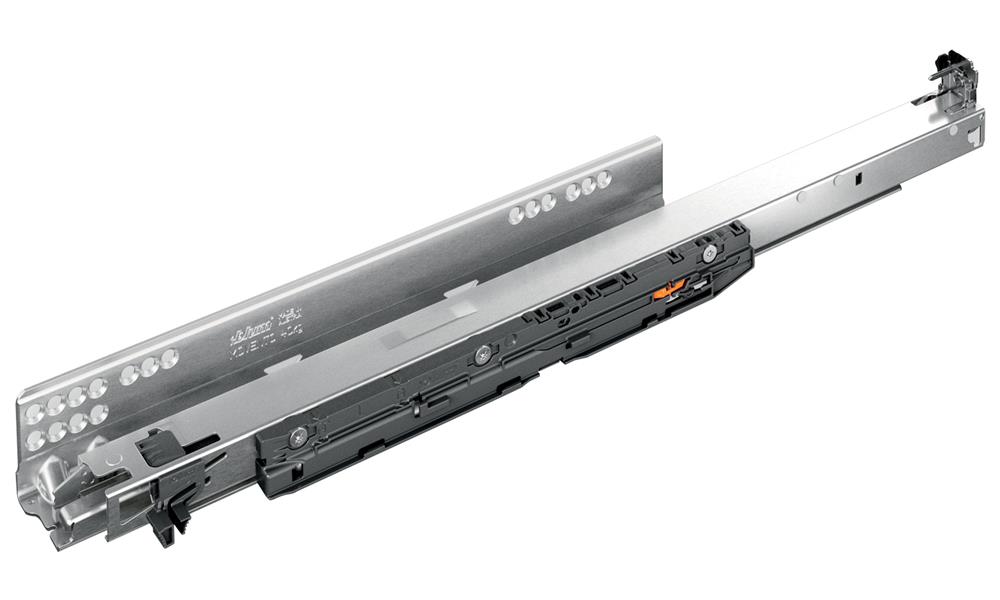

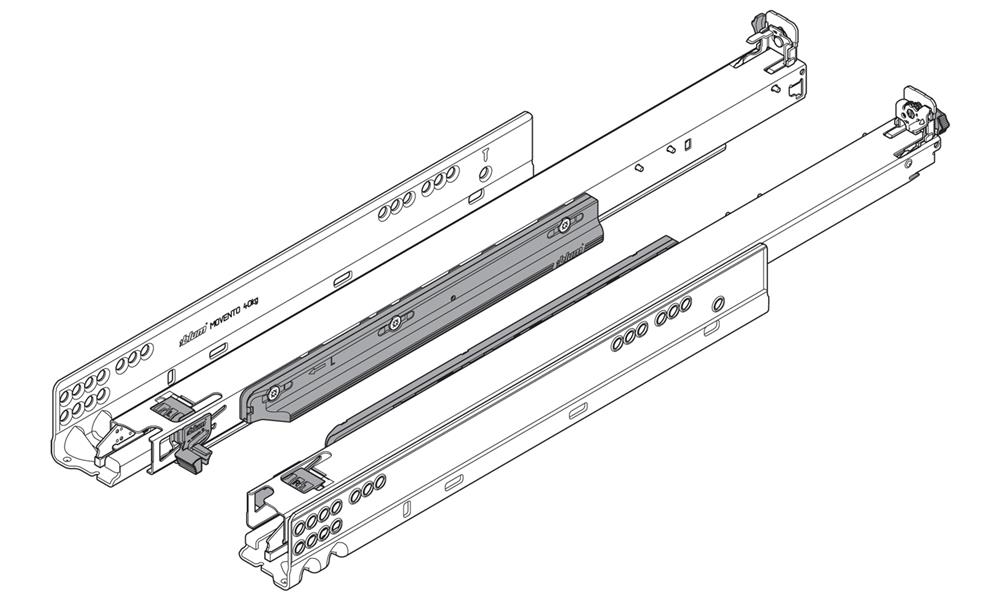

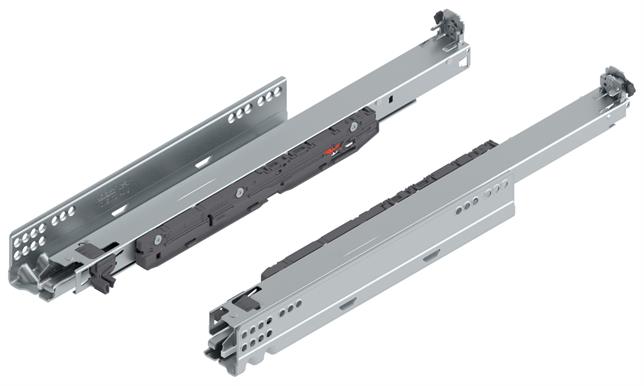

Movento Blumotion S Runners

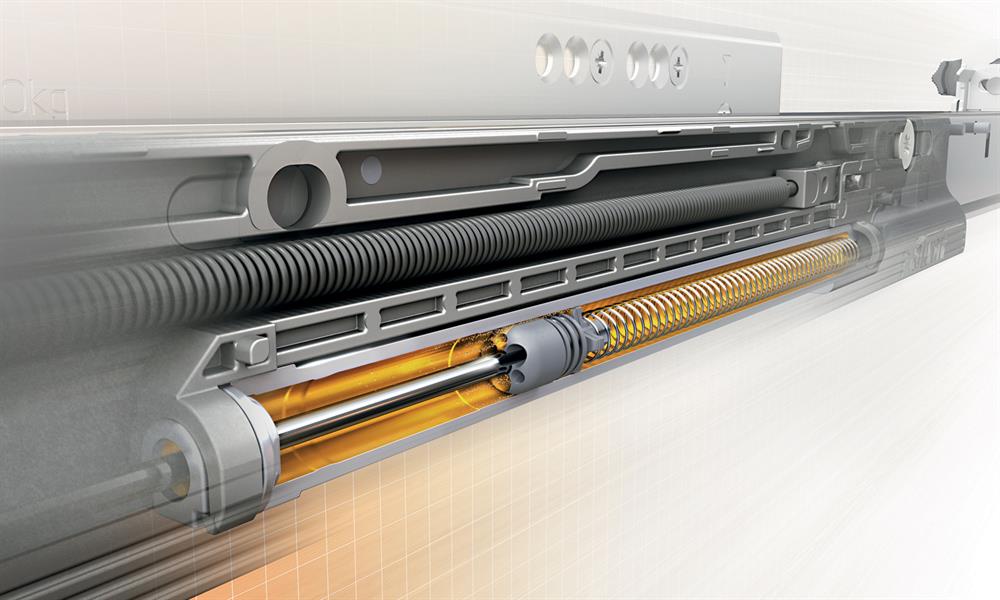

One solution – three technologies. Blumotion S runners offer the flexibility to implement multiple motion technologies with only one runner.

  • The runner can be used for three motion technologies: Servo-Drive, Blumotion and Tip-On
  • Integrated, switchable Blumotion S for a silent and effortless closing action
  • The dampening path will be automatically adapted to the respective motion technology

760H2500S is not suitable for TIP ON.

Stuart Rules
Stuart Rules
CodeLengthWeight RatingPrice
760H2500S
79568
Blum full extension integrated Blumotion S Movento runner 40kg 250mm250mm40kg£POA
760H2700S
12751
Blum full extension integrated Blumotion S Movento runner 40kg 270mm270mm40kg£POA
760H3000S
35407
Blum full extension integrated Blumotion S Movento runner 40kg 300mm300mm40kg£POA
760H3500S
86376
Blum full extension integrated Blumotion S Movento runner 40kg 350mm350mm40kg£POA
760H4000S
30953
Blum full extension integrated Blumotion S Movento runner 40kg 400mm400mm40kg£POA
760H4500S
67183
Blum full extension integrated Blumotion S Movento runner 40kg 450mm450mm40kg£POA
760H5000S
36851
Blum full extension integrated Blumotion S Movento runner 40kg 500mm500mm40kg£POA
760H5500S
12641
Blum full extension integrated Blumotion S Movento runner 40kg 550mm550mm40kg£POA
766H4500S
62531
Blum full extension integrated Blumotion S Movento runner 70kg 450mm450mm70kg£POA
766H5000S
89750
Blum full extension integrated Blumotion S Movento runner 70kg 500mm500mm70kg£POA
766H5500S
00467
Blum full extension integrated Blumotion S Movento runner 70kg 550mm550mm70kg£POA
766H6000S
00209
Blum full extension integrated Blumotion S Movento runner 70kg 600mm600mm70kg£POA
766H6500S
07398
Blum full extension integrated Blumotion S Movento runner 70kg 650mm650mm70kg£POA
766H7000S
89796
Blum full extension integrated Blumotion S Movento runner 70kg 700mm700mm70kg£POA
766H7500S
36134
Blum full extension integrated Blumotion S Movento runner 70kg 750mm750mm70kg£POA

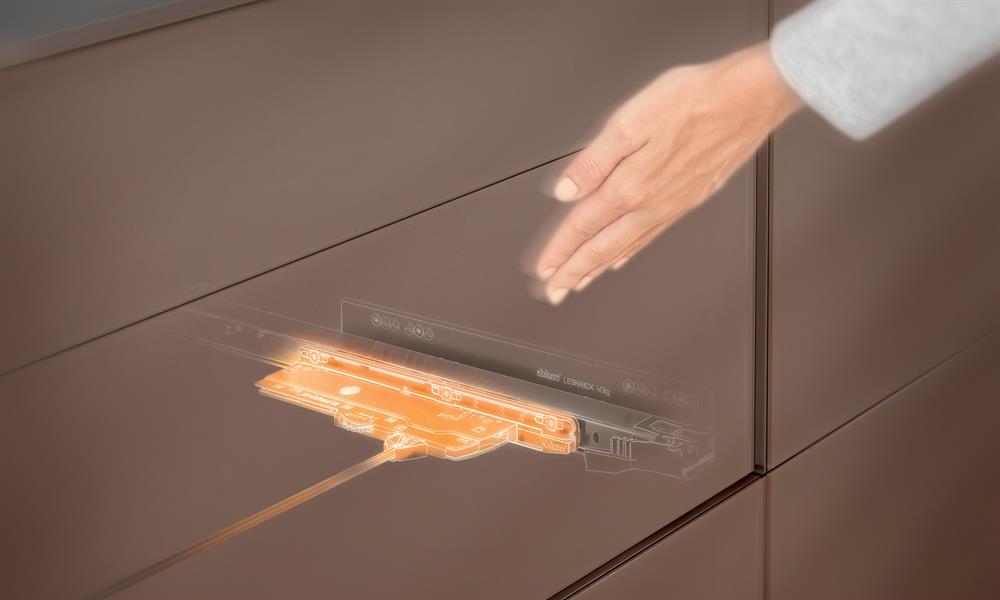

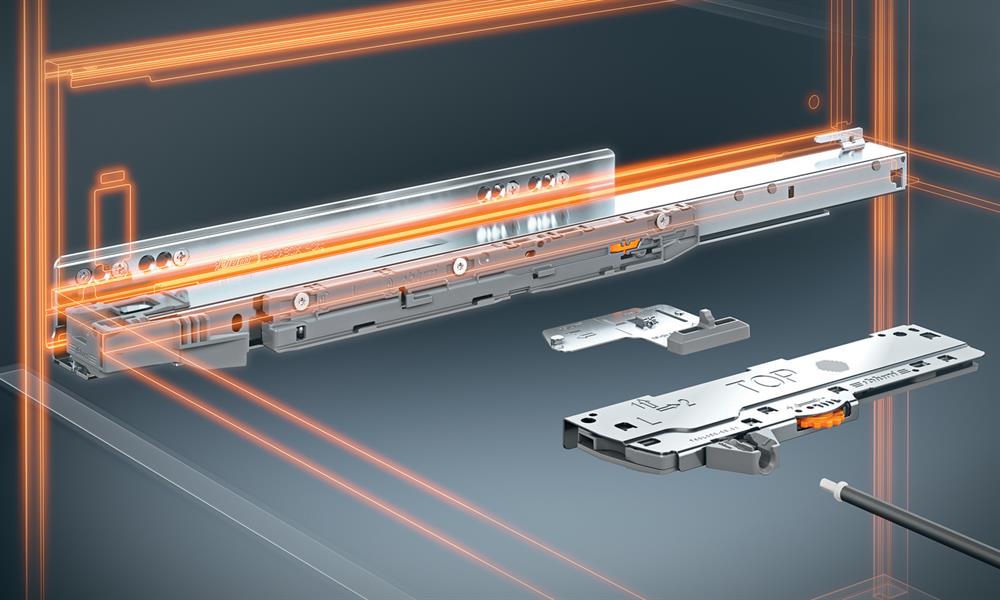

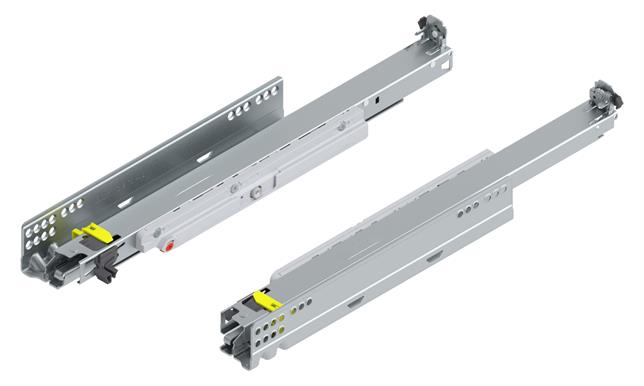

Movento Tip-On Runners

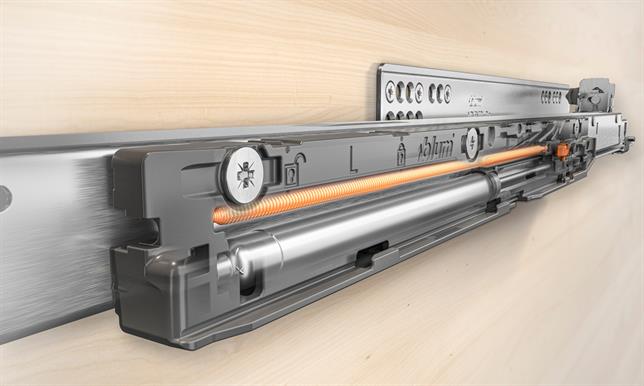

  • Concealed full extension with integrated Tip-On
  • Compatible with the side stabilisation for Movento
  • Optional Tip-On synchronisation for secure triggering even with wide fronts
  • Left and right runner included
Stuart Rules
Stuart Rules
Stuart Rules
Stuart Rules
Stuart Rules
CodeLengthWeight RatingPrice
760H4000T
02431
Blum full extension Movento runner with Tip On 40kg 400mm400mm40kg£POA
760H4500T
46980
Blum full extension Movento runner with Tip On 40kg 450mm450mm40kg£POA
766H7000T
44655
Blum MOVENTO with TIP-ON full extension runner 60 kg NL=700 mm L&R700mm60kg£POA

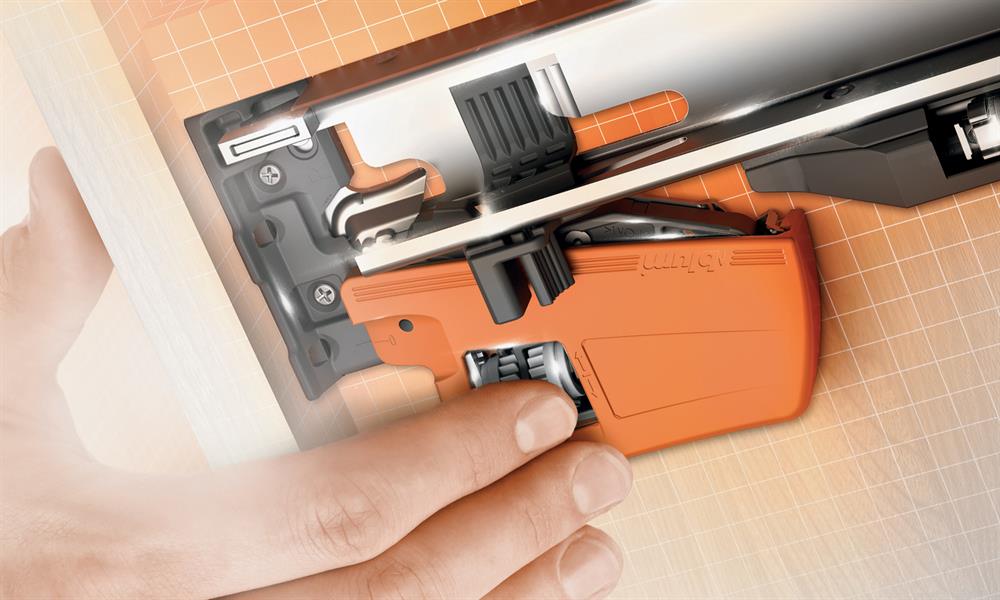

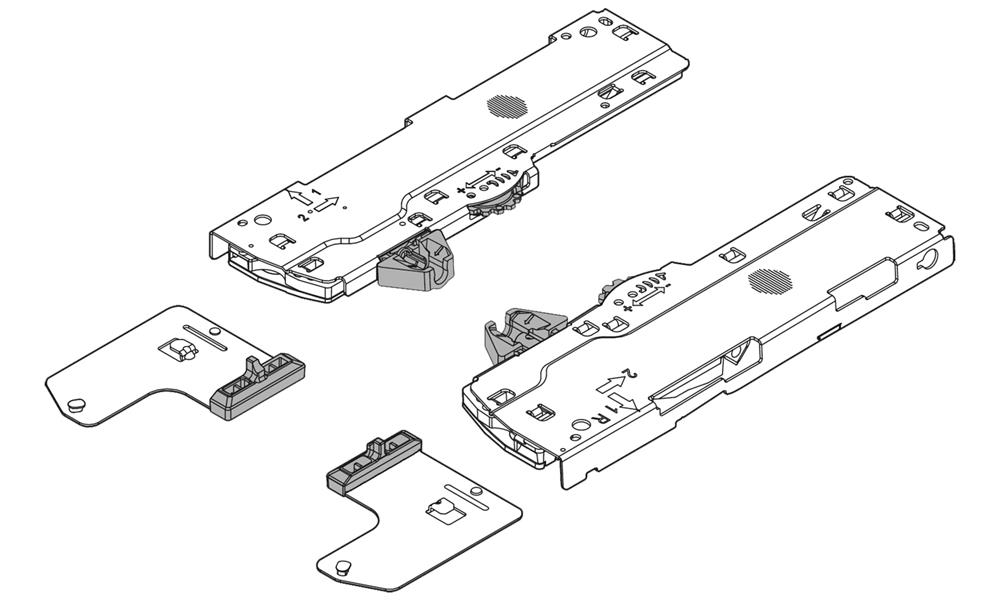

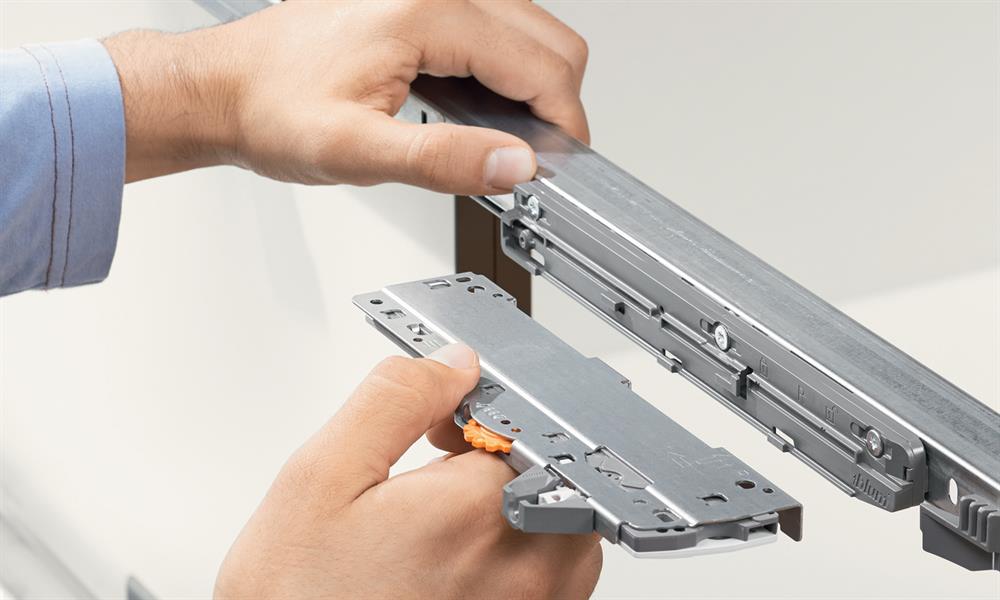

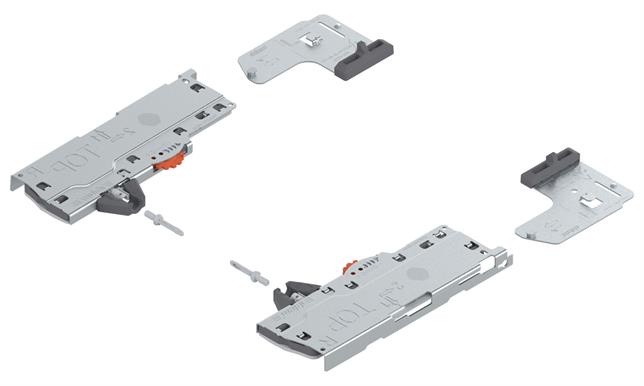

Tip-On Blumotion Unit and Latch Sets

SO (T60L7040) / S1 (T60L7140) units suitable for 270mm-300mm depth drawers.

L1/L3/L5 units suitable for 350mm-650mm depth drawers.

See the images and PDF document to identify the unit that best suits your requirements.

Stuart Rules
Stuart Rules
Stuart Rules
Stuart Rules
Stuart Rules
CodeNominal LengthWeight RangePrice
T60L7140
50504
Blum Tip-On Blumotion Unit and Latch set S1270mm-300mm10-20kg£POA
T60L7340
28845
Blum Tip-On Blumotion Unit and Latch set L1350mm-600mmLess Than 20kg£POA
T60L7540
08906
Blum Tip-On Blumotion Unit and Latch set L3350mm-600mm15-40kg£POA
T60L7570
57643
Blum Tip-On Blumotion Unit and Latch set L5450mm-750mm35-70kg£POA

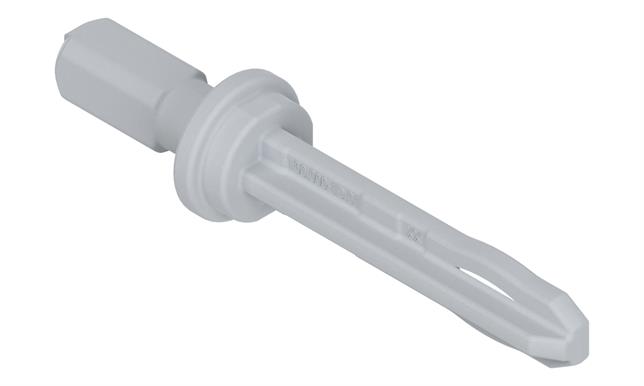

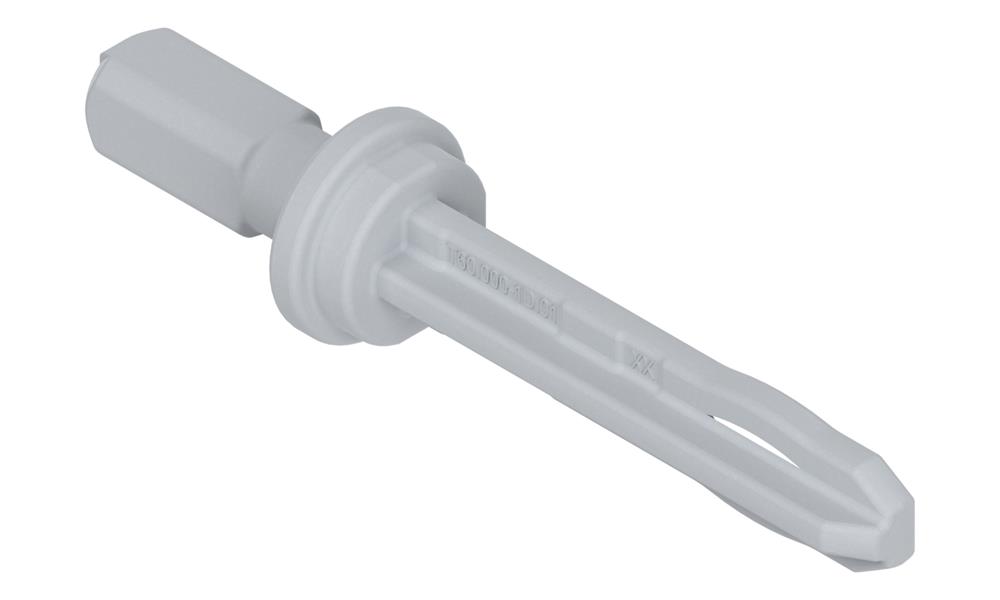

Tip-On Blumotion Synchronisation Adapter

Spare adapters for use with the synchronisation linkage.

Stuart Rules
CodeDescriptionPrice
T60.000D
87656
Blum Tip-On Blumotion Synchronisation AdaptorBlum Tip-On Blumotion Synchronisation Adaptor£POA

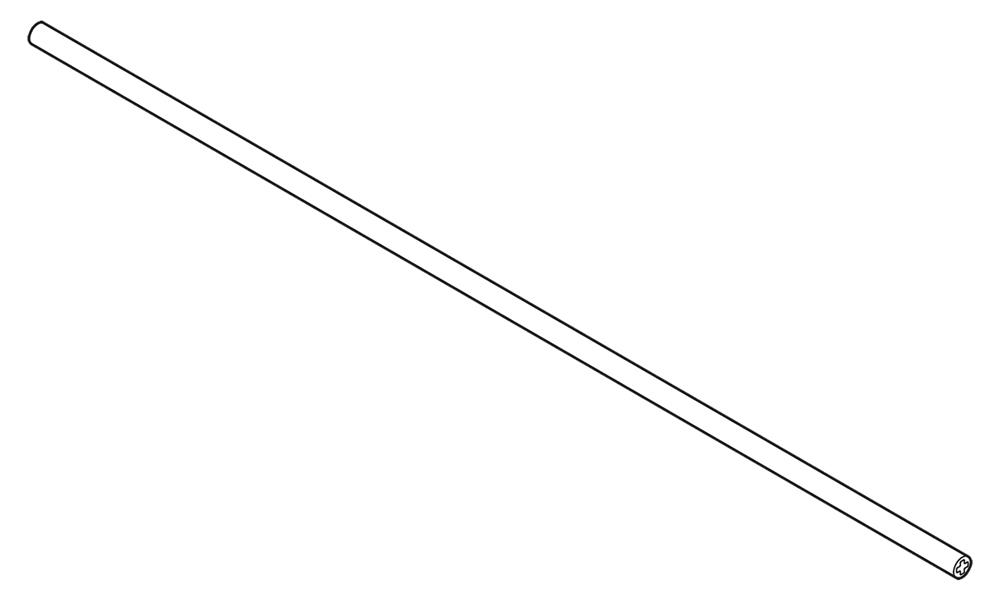

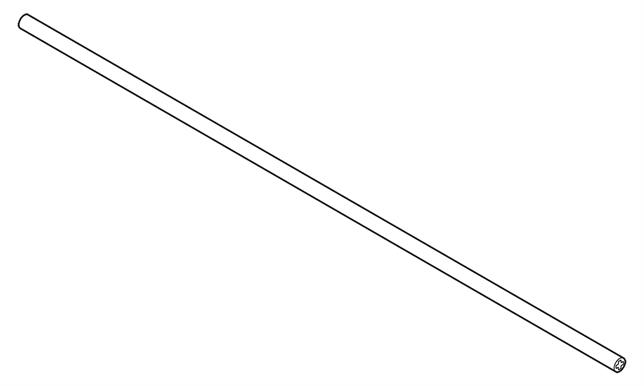

Tip-On Blumotion Synchronisation Linkage

For cutting to size.

Stuart Rules
CodeLengthPrice
T60.1125W
29646
Blum Tip-On Blumotion Synchronisation Linkage for cutting to size1125mm£POA

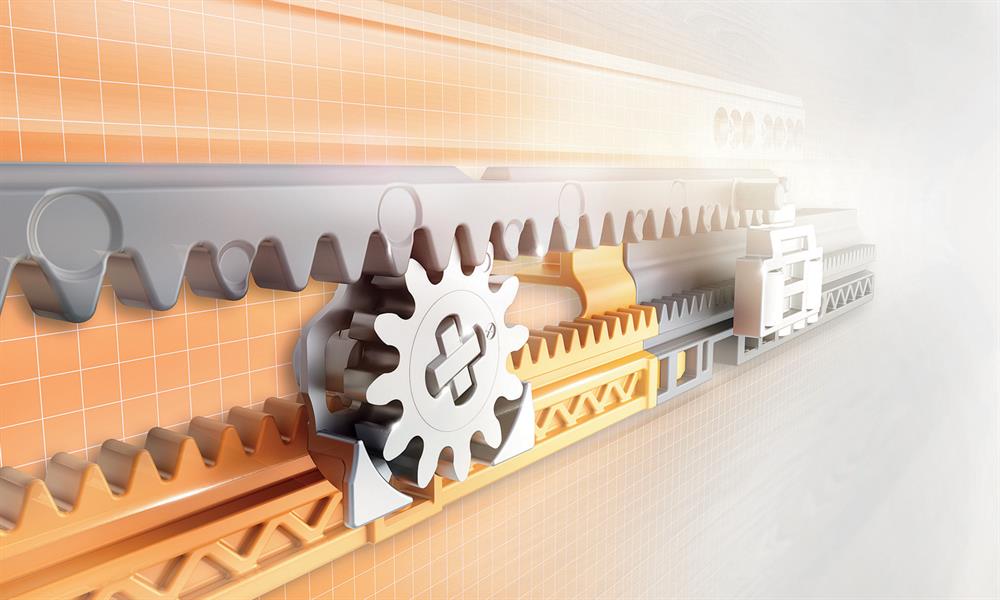

Movento Side Stabilisation

Optional, provides side stabilisation which may be needed for wide drawers with a short length. For cutting to size.

Stuart Rules
CodeLengthPrice
ZS7M750MU
25883
Blum MOVENTO Side Stabilisation for Extra Wide Drawersup to 750mm£POA

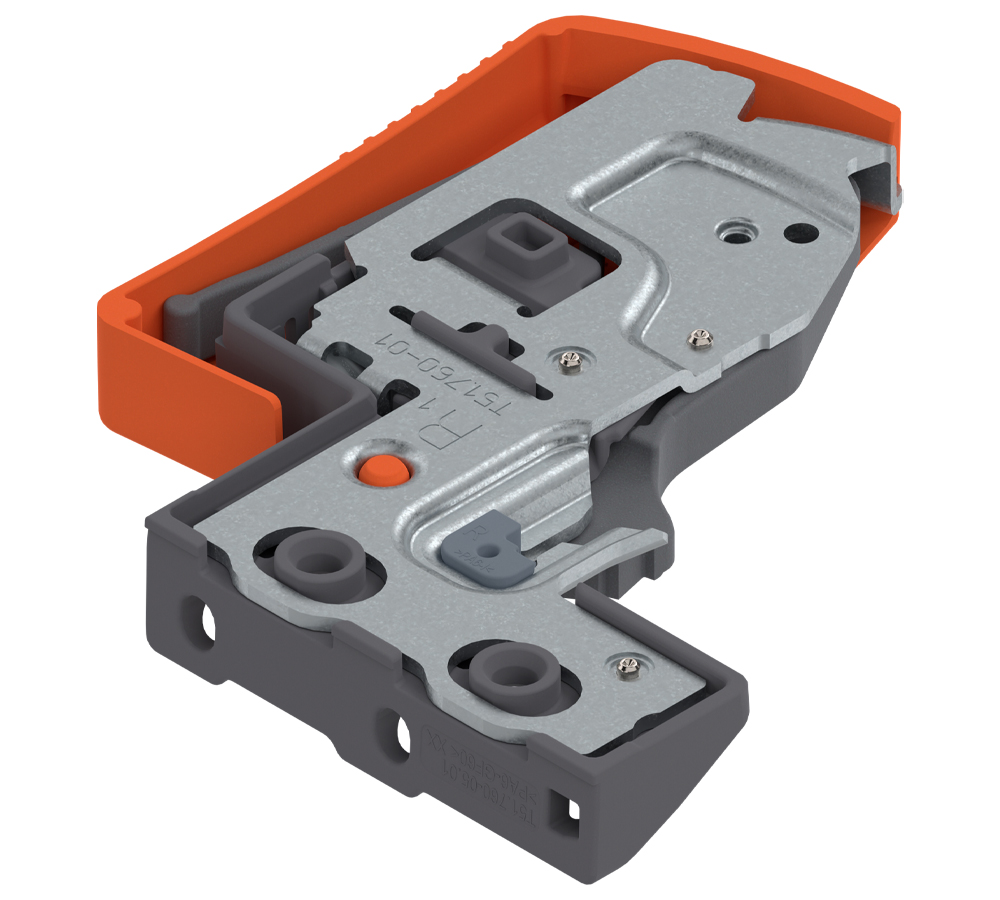

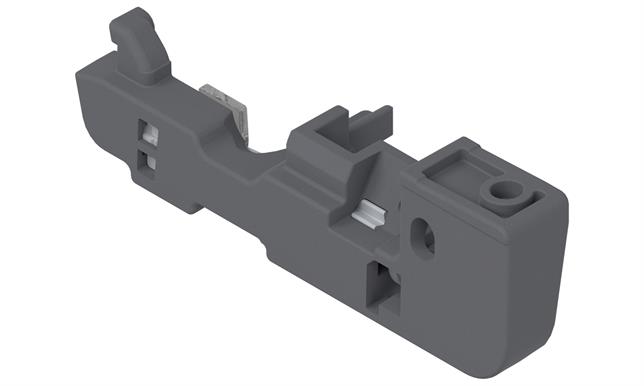

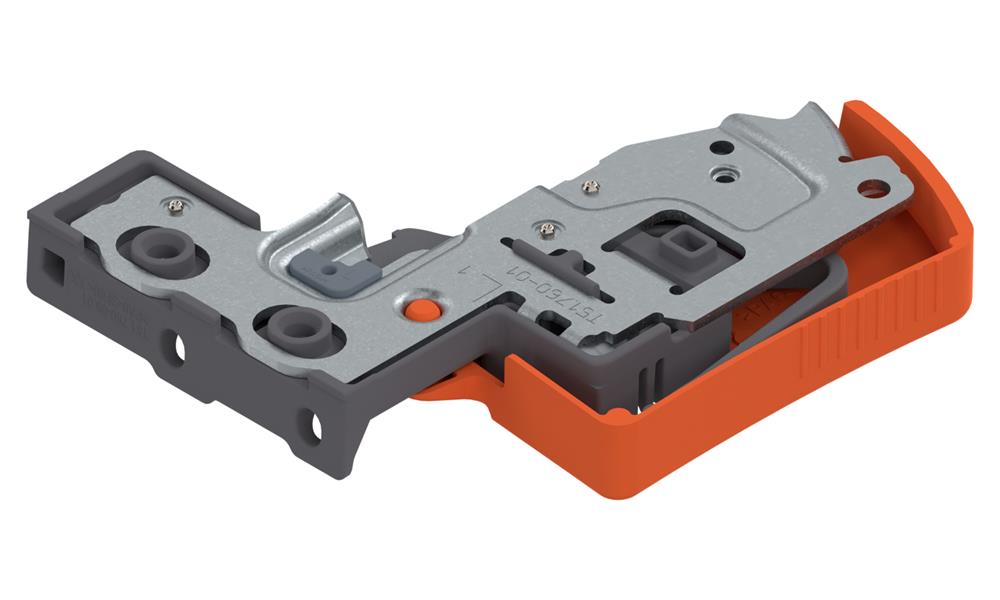

Movento Front Fixing Brackets

Left
Right
CodeHandPrice
T51.7601L
57844
Blum Movento runner front fixing bracket LHLeft£POA
T51.7601R
35377
Blum Movento runner front fixing bracket RHRight£POA

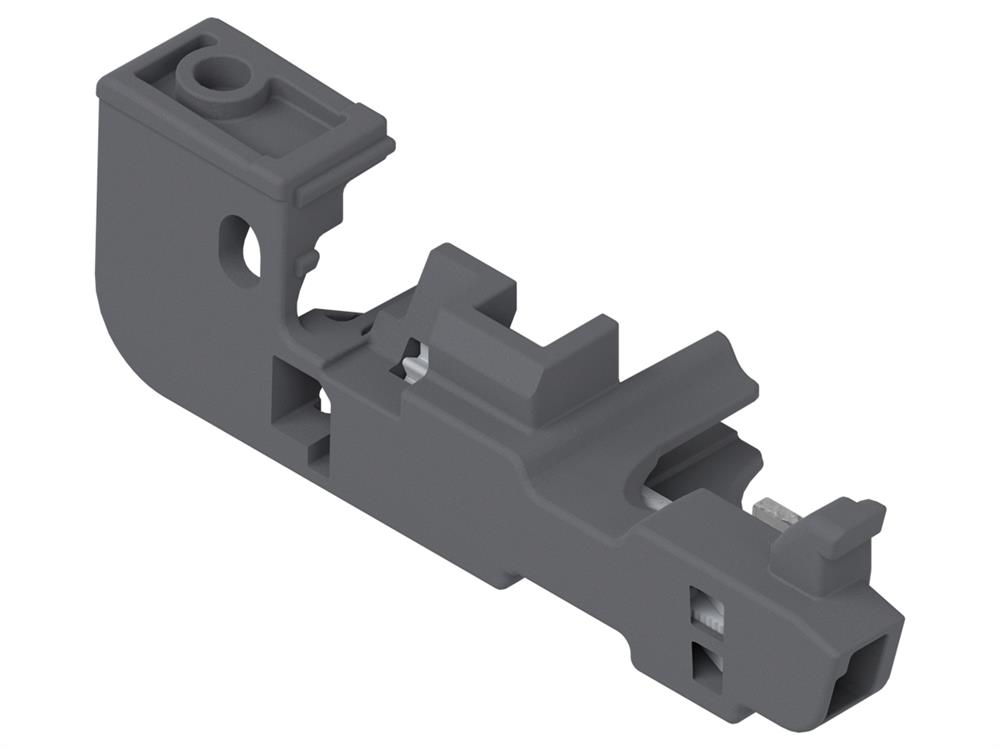

Movento Depth Adjustment

For use on inset applications.

Left
Right
Stuart Rules
CodeHandPrice
298.7601L
29047
Blum Movento runner depth adjustment attachment LHLeft£POA
298.7601R
87683
Blum Movento runner depth adjustment attachment RHRight£POA
