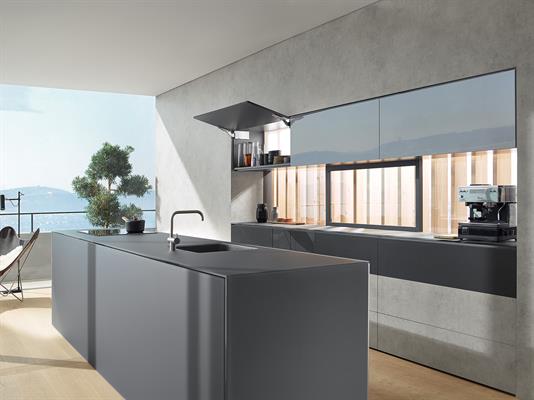

Blum Aventos HK top

Blum Aventos HK top
  • Blum Aventos HK top image 1
  • Blum Aventos HK top image 2
  • Blum Aventos HK top image 3
  • Blum Aventos HK top image 4

HK top offers a stylish, more compact design, allowing more space in the cabinet, improving visual appearance and giving more storage space.

  • Simplified installation process negates the need for a template, saving time and cost
  • Enhanced strength adjustment: easily accessible & efficient method meaning quicker & more consistent results
  • Integrated opening angle stop enabling variable opening angle, therefore no need for additional component to order/fit
  • Clip on optional name plates, simplified branding giving an opportunity to promote brand awareness
  • Built-in switch, keeps arms in closed position until the front is to be fitted – ensuring maximum safety
  • Finger release for front removal: tool-free for easy removal of fronts
  • Additional colour option of cover cap gives more choice & better cabinet co-ordination
Show More Information

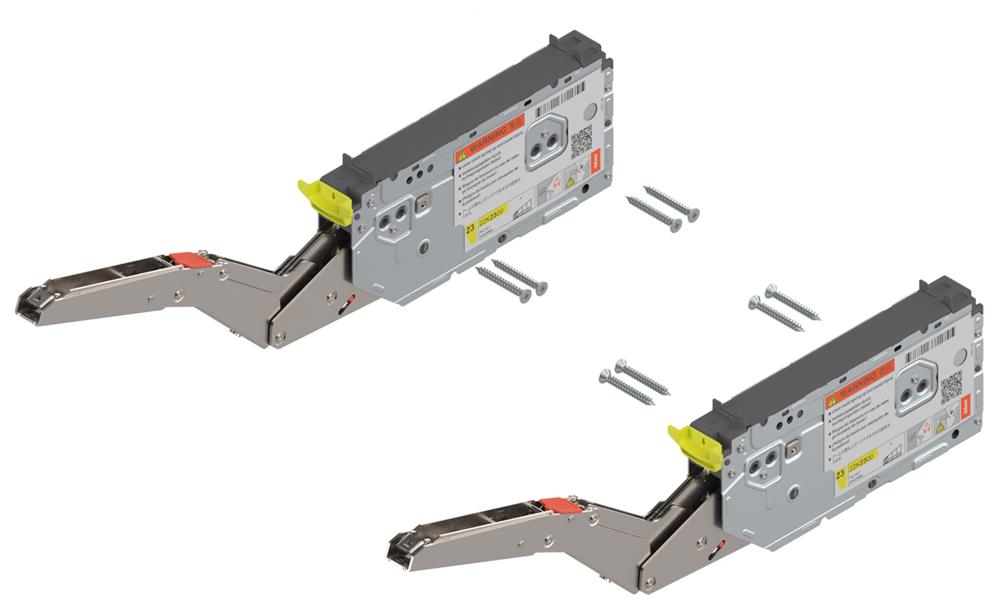

Blum Aventos HK top Lifts

Power factor = carcass height (mm) x front weight including 2 x handle (kg).

CodeTip-OnPower Factor
22K2300
46259
Blum Aventos HK top lift mechanism set, PF 420-1610, Servo Drive compatible
No420 - 1610£60.76  ex vat
22K2500
45735
Blum Aventos HK top lift mechanism set, PF 930-2800, Servo Drive compatible
No930 - 2800£60.76  ex vat
22K2700
64517
Blum Aventos HK top lift mechanism set, PF 1730-5200, Servo Drive compatible
No1730 - 5200£61.07  ex vat
22K2900
93815
Blum Aventos HK top lift mechanism set, PF 3200-9000, Servo Drive compatible
No3200 - 9000£71.47  ex vat
22K2300T
78270
Blum Aventos HK top stay lift, lift mechanism, PF 420-1610, for TIP-ON
Yes420 - 1610£58.60  ex vat
22K2500T
18663
Blum Aventos HK top stay lift, lift mechanism, PF 930-2800, for TIP-ON
Yes930 - 2800£59.68  ex vat
22K2700T
87707
Blum Aventos HK top stay lift, lift mechanism, PF 1730-5200, for TIP-ON
Yes1730 - 5200£70.76  ex vat
22K2900T
94583
Blum Aventos HK top stay lift, lift mechanism, PF 3200-9000, for TIP-ON
Yes3200 - 9000£79.76  ex vat

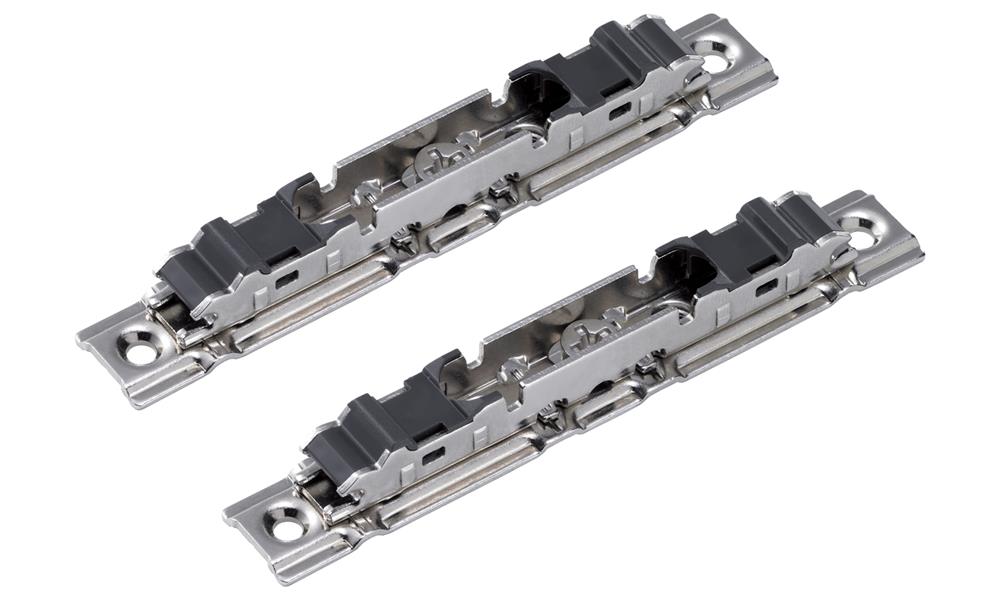

Blum Aventos HK top Front Fixing Brackets

Front fixing bracket for wooden fronts.

CodeDescription
20S4200
67079
Blum Aventos HK, HK Top, HL and HS front fixing bracket
Blum Aventos HK, HK Top, HL and HS front fixing bracket£4.82  ex vat

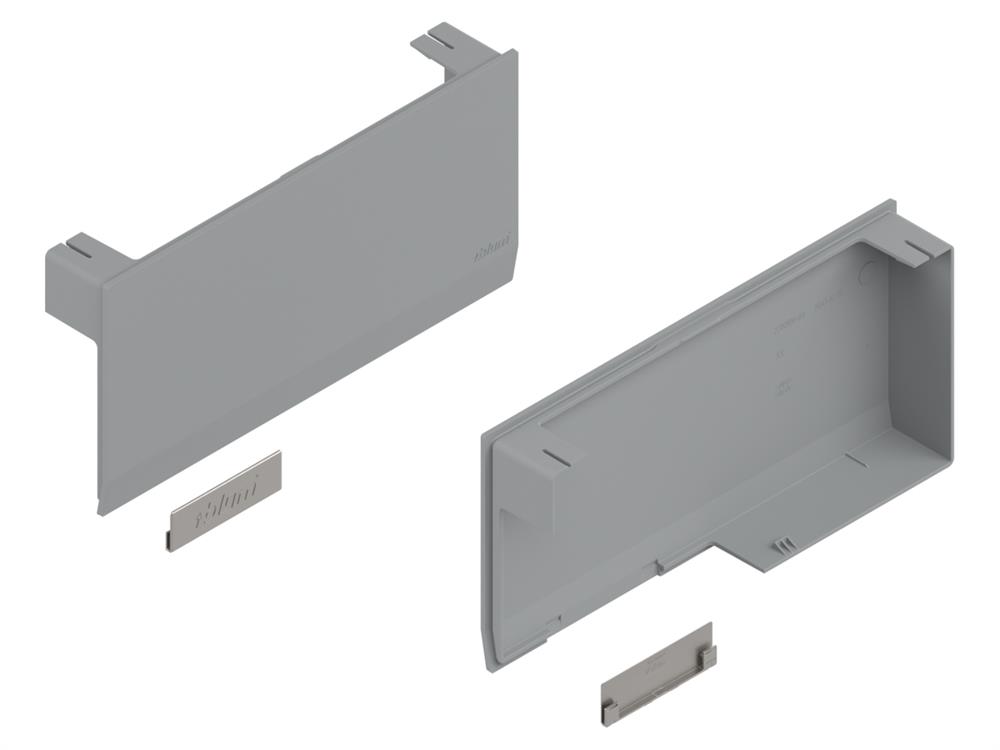

Blum Aventos HK top Cover Cap Set

Includes left and right cover caps.

CodeFinish
22K8000LG
68496
Blum Aventos HK top cover cap set L + R Light grey
Light Grey£9.14  ex vat
22K8000DG
33422
Blum Aventos HK Top cover cap set L + R Dark grey
Dark Grey£9.14  ex vat

Blum Aventos HK top Tip-On Set

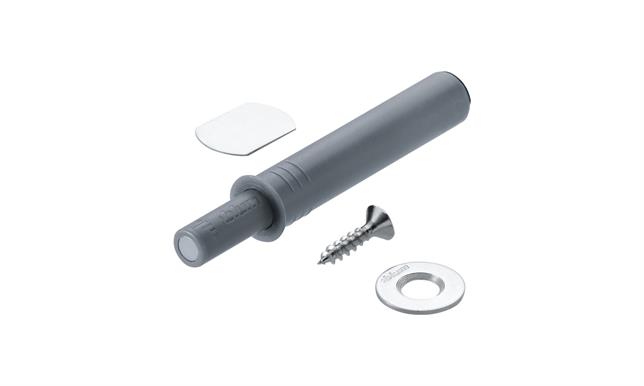

Short Version Set

For use in conjunction with an appropriate HK top Tip-On lift mechanism.

  • Short set for cabinet height up to 500mm

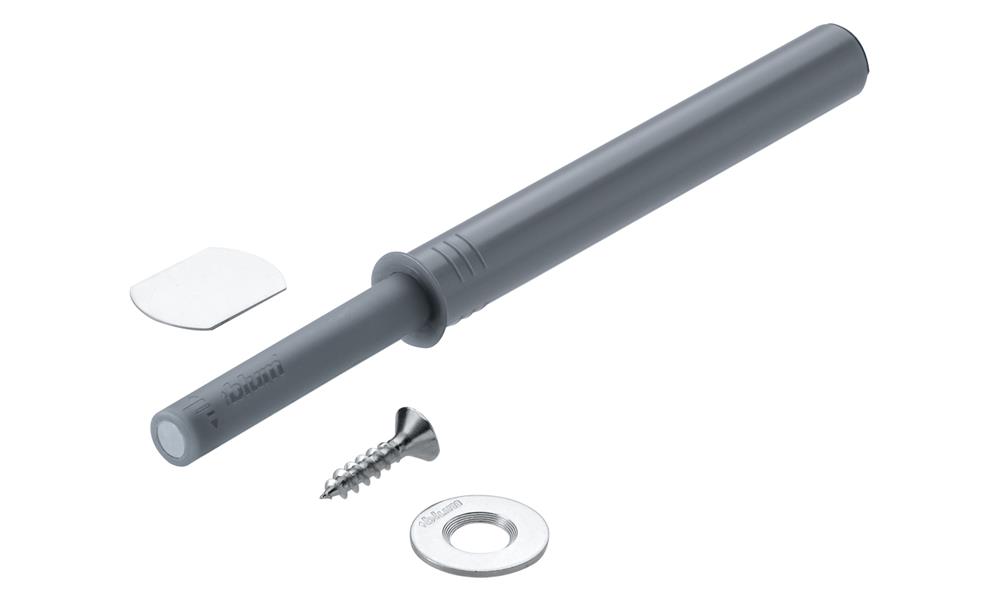

  • Long set for cabinet height above 500mm
CodeDescription
956.1004
72312
Blum TIP-ON for doors short version set
Blum TIP-ON for doors short version set£5.15  ex vat
956A1004
44528
Blum TIP-ON for doors long version set (Magnetic)
Blum TIP-ON for doors long version set (Magnetic)£6.45  ex vat

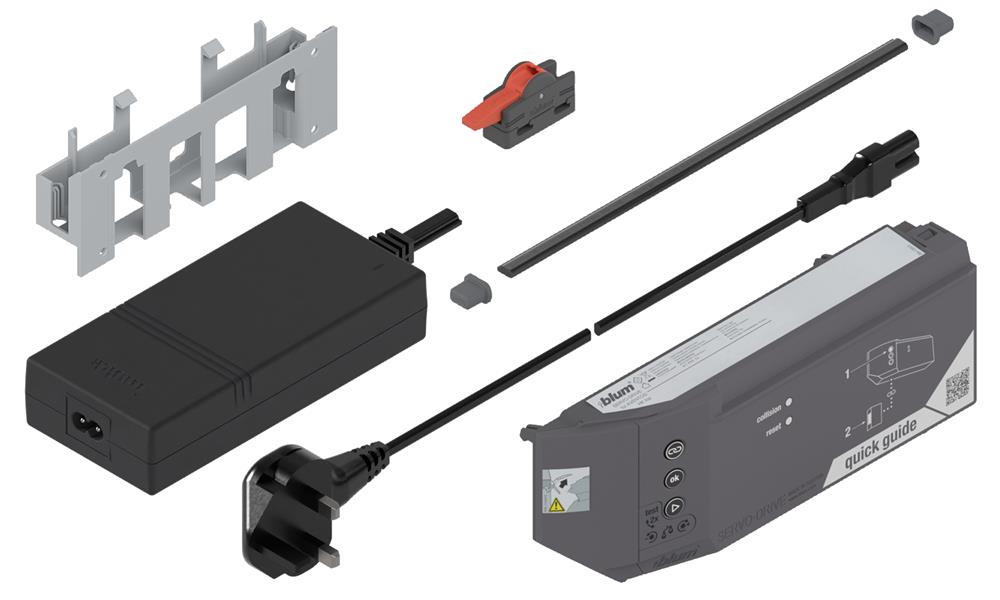

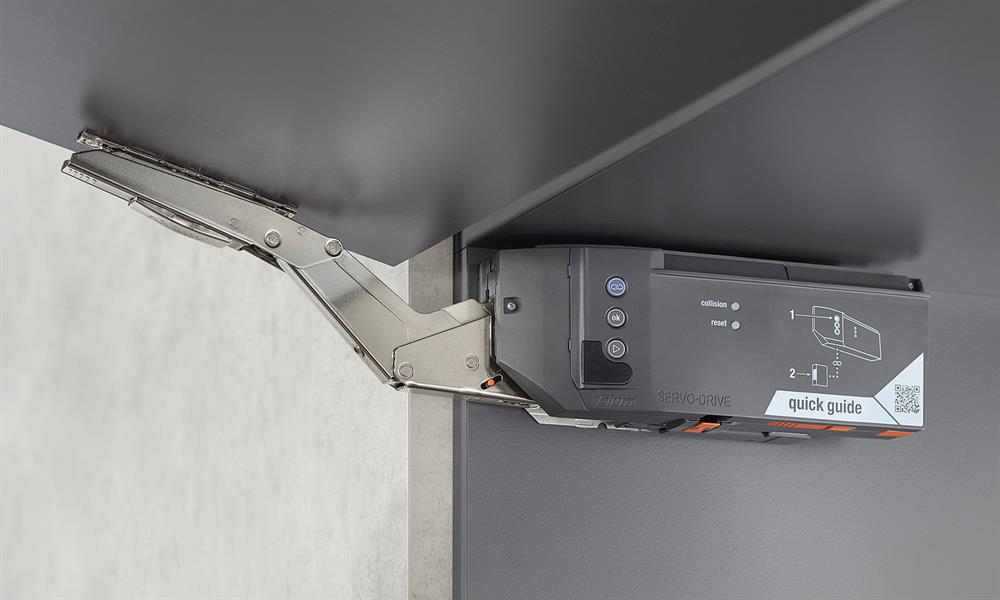

Blum Aventos HK top Servo Drive

Additional products to convert a standard Aventos HK top to Servo Drive.

CodeType
23KA000
55366
Blum Aventos HK Top Servo-Drive Unit
Aventos HK top drive unit£384.80  ex vat
Z10NE030A
69281
Blum Servo-Drive transformer 24W
24W Transformer£157.63  ex vat
Z10M200B
45550
Blum Servo-Drive power cord 2mtr
2mtr Power Cord£19.29  ex vat
Z10NG120
77561
Blum Servo-Drive side mounted transformer housing Z10NG120
Side Mounted Housing£7.08  ex vat

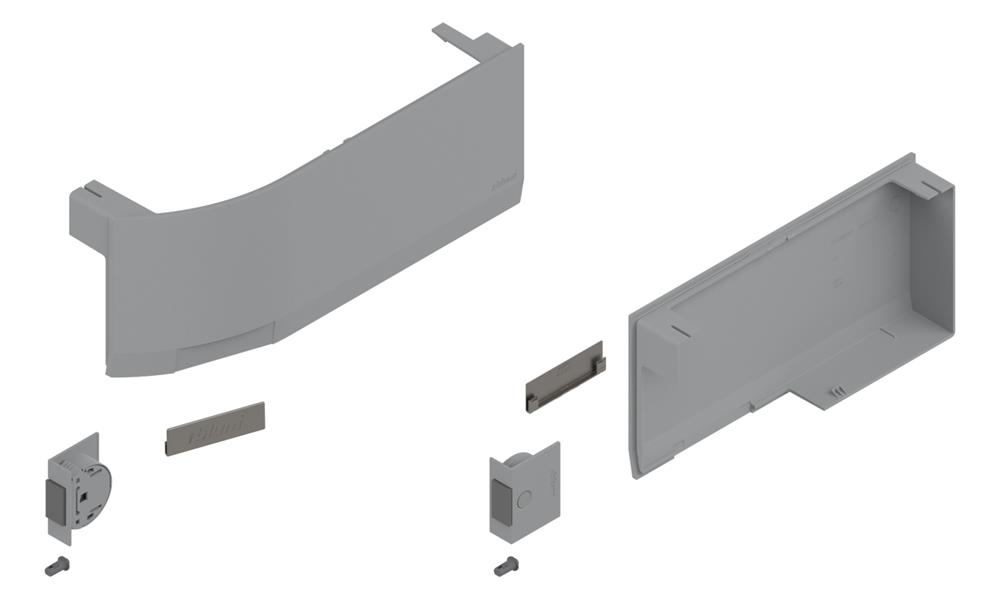

Blum Aventos HK top Servo Drive Cover Cap Set

Includes left and right cover caps, Servo Drive switches and distance bumpers.

CodeType
23K8000LG
66699
Blum Aventos HK top stay lift cover cap set (R & L) for Servo Drive. Light Grey
Light Grey£127.40  ex vat
23K8000DG
93535
Blum Aventos HK top stay lift & cover cap set (R & L) for Servo Drive. Dark Grey
Dark Grey£127.40  ex vat
