Blum Aventos HS top

Blum Aventos HS top

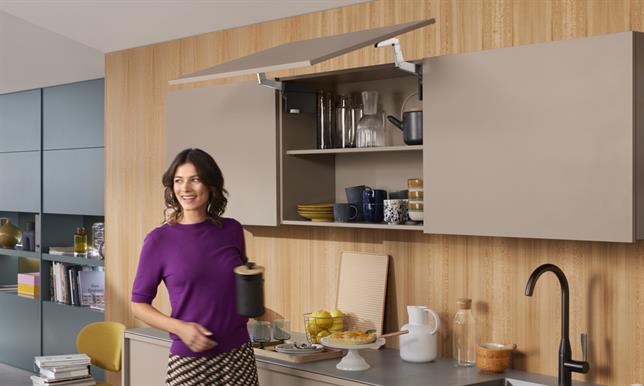

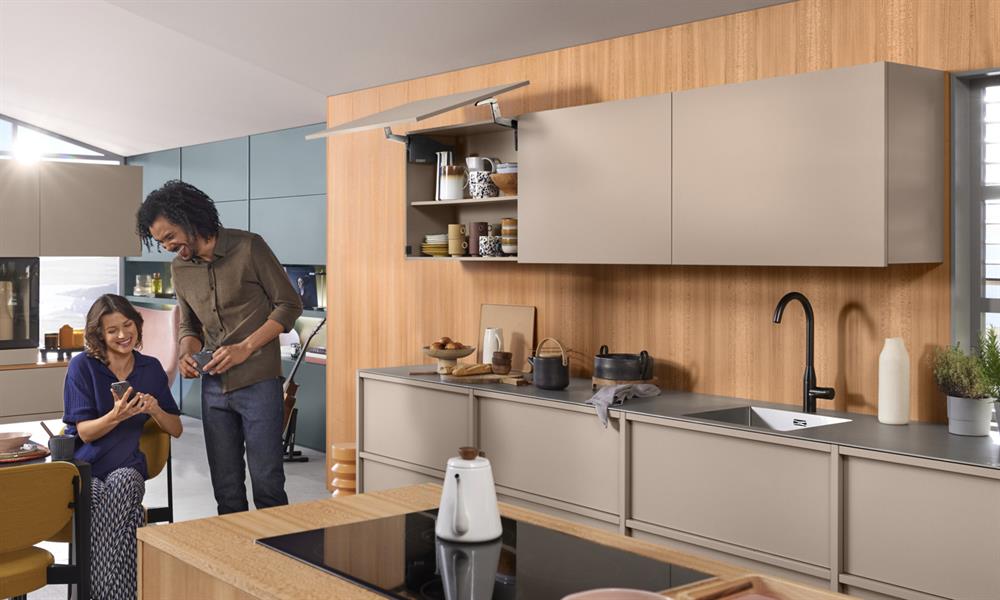

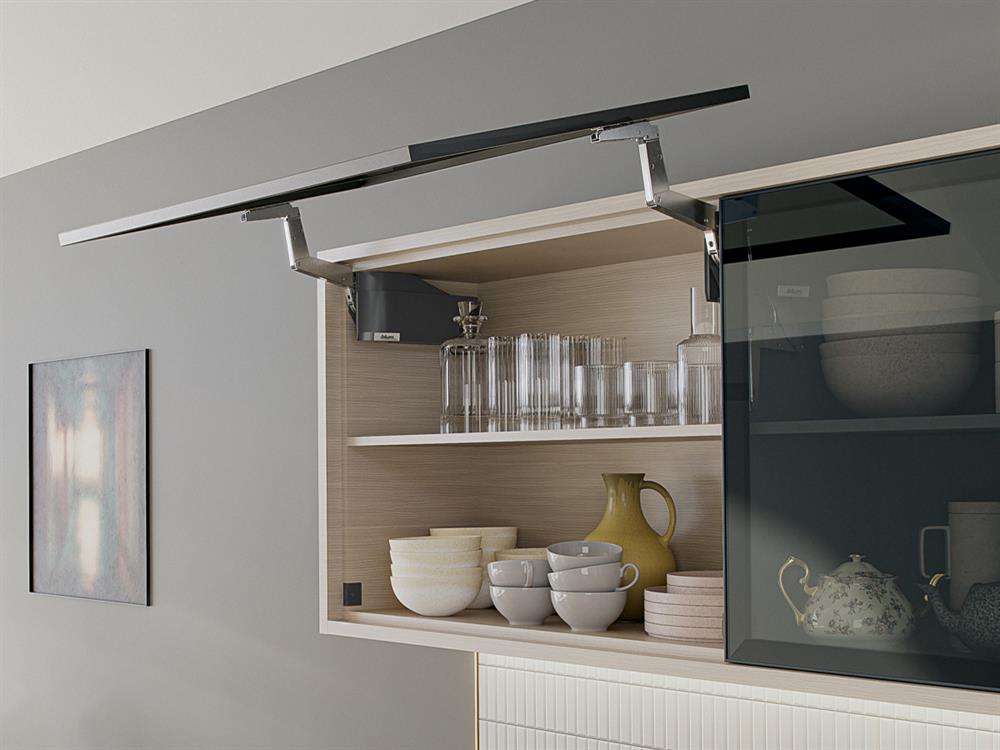

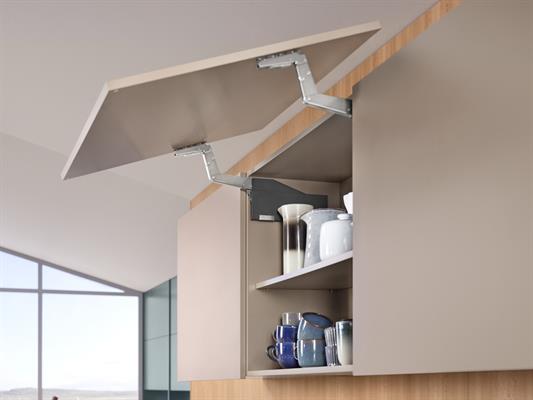

  • Blum Aventos HS top image 1
  • Blum Aventos HS top image 2
  • Blum Aventos HS top image 3
  • Blum Aventos HS top image 4

The AVENTOS HS top lift system exudes a sense of weightlessness. Large one-part fronts can be opened with the utmost ease. The lift system swings up and over the cabinet, giving easy access to storage items while preserving a gap between the front and cabinet top edge. A compelling feature that gives furniture design more scope – for example for integrating cornice or crown mouldings.

  • Ideal for large, one-part fronts
  • Cabinet height 350–800 mm
  • Cabinet width up to 1800 mm
  • Internal depth of at least 264 mm
  • Integrated BLUMOTION adjustment feature for soft and effortless closing
  • Light operating forces
  • Variable stop
  • Fixed position of the lift mechanism and front fixing bracket
  • Symmetrical lever arm
  • Tool-free assembly
  • Two lift mechanism fixing methods
  • 3-dimensional adjustment of the front
Read More...

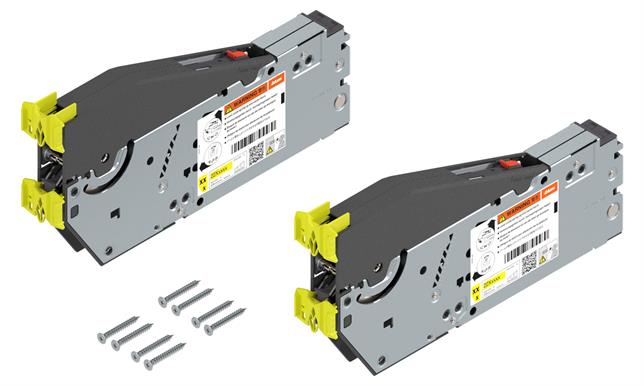

Blum Aventos HS top Lifts

Minimum carcass depth for Aventos HS top is 264mm.

CodeCabinet Height
22S2200
07003
Blum Aventos HS lift mechanism set suitable for Servo Drive
350 - 540mm£POA  ex vat
22S2500
68137
Blum Aventos HS lift mechanism set suitable for Servo Drive
480 - 660mm£POA  ex vat
22S2800
29670
Blum Aventos HS lift mechanism set suitable for Servo Drive
650 - 800mm£POA  ex vat

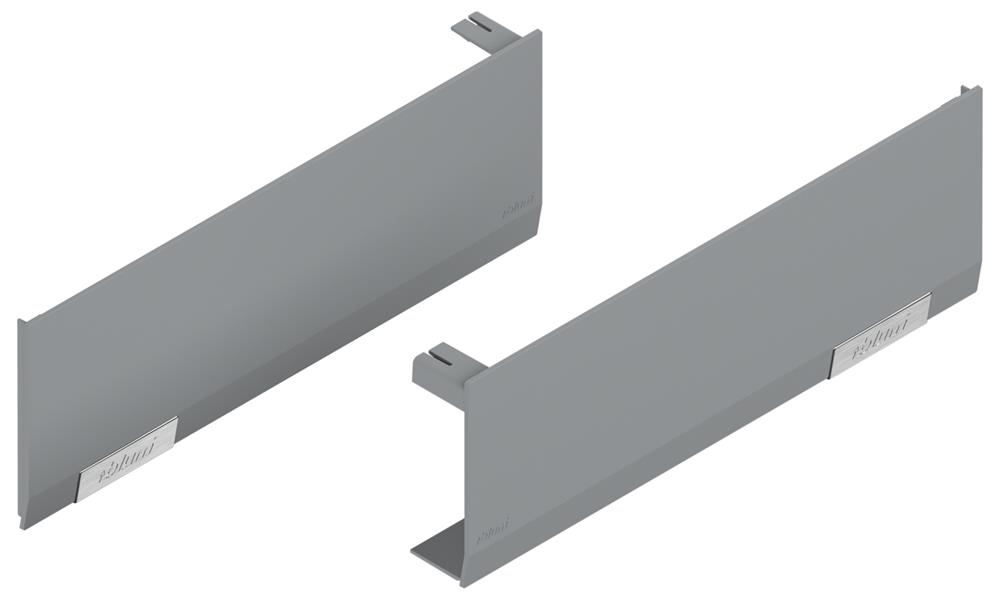

Blum Aventos top Cover Caps

Aventos top range cover caps sets: willl fit HF top, HS top and HL top installations. Not suitable for Servo-Drive applications.

CodeFinish
22.8000
88050
Blum Aventos HF/HS/HL top cover cap set L&R Light Grey
Light Grey£POA  ex vat
22.8000DG
12708
Blum Aventos HF/HS/HL top cover cap set L&R Dark Grey
Dark Grey£POA  ex vat

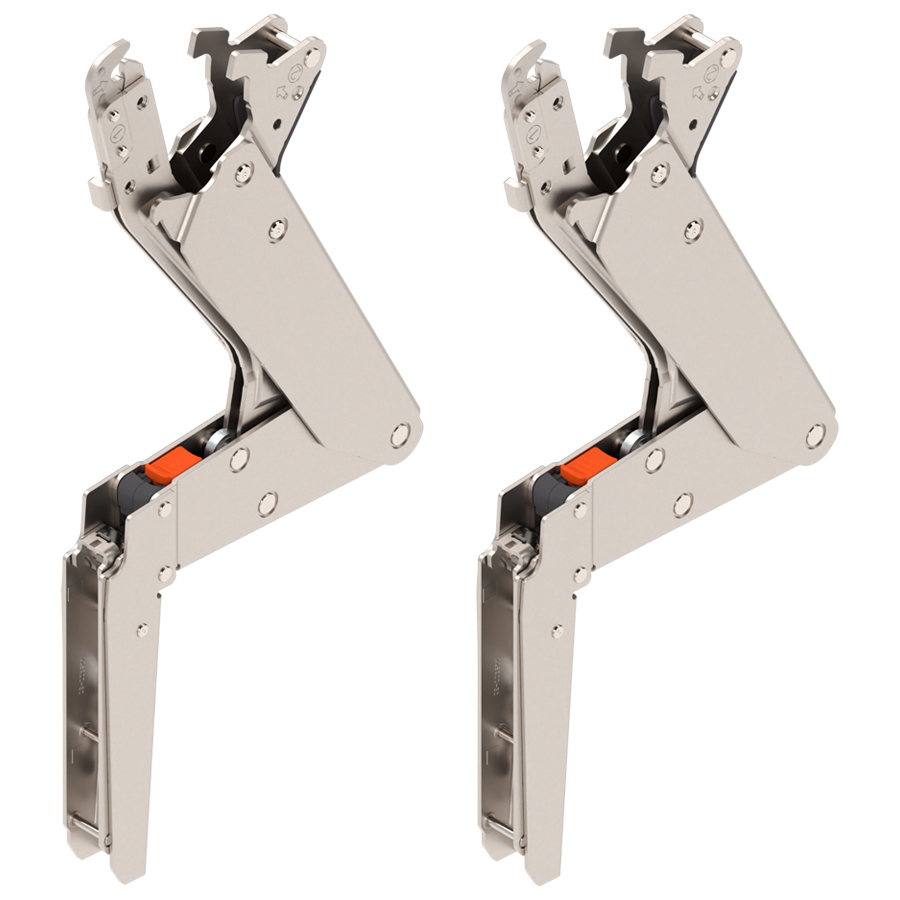

Blum Aventos HS top Arms

CodeCabinet Height
22S3500
09034
Blum Aventos HS lever arm set Cabinet Height 350-800mm (non-handed)
350-800mm£POA  ex vat

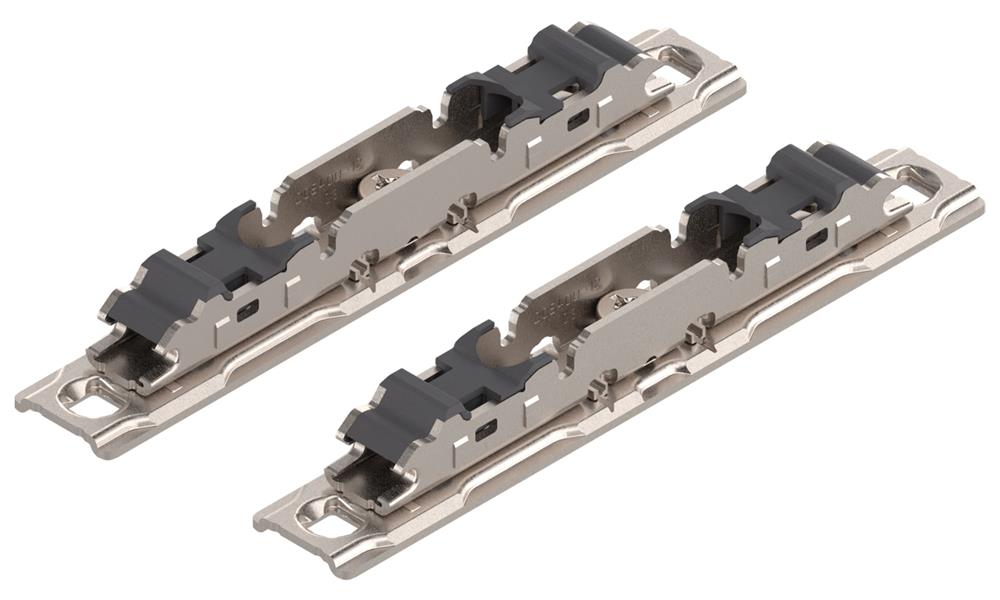

Blum Aventos HS top Fixing Bracket Set

CodeDescription
20S4200
67079
Blum Aventos HK/HL/HS top Front Fixing Bracket Set
Blum Aventos HK/HL/HS top Front Fixing Bracket Set£POA  ex vat

Blum Aventos HF/HS/HL top Servo Drive

Aventos HF drive unit

Additional products required to convert a standard Aventos HF/HS/HL installation to Servo-Drive.

CodeType
23.A000
68925
Blum Aventos servo-drive unit set for HF
Aventos HF drive unit£POA  ex vat
23.8000
02148
Blum Aventos HF/HS/HL covercap set servo-drive inc trigger switch L/R Light Grey
HF/HS/HL top cover caps Servo Drive - Light Grey£POA  ex vat
23.8000DG
81649
Blum Aventos HF/HS/HL covercap for servo-drive incl trigger switch L&R Dark Grey
HF/HS/HL top cover caps Servo Drive - Dark Grey£POA  ex vat
Z10NE030A
69281
Blum Servo-Drive transformer 24W
24W Transformer£POA  ex vat
Z10M200B
45550
Blum Servo-Drive power cord 2mtr
2mtr Power Cord£POA  ex vat
Z10NG120
77561
Blum Servo-Drive side mounted transformer housing Z10NG120
Side Mounted Housing£POA  ex vat
