Blum Aventos HL top

Blum Aventos HL top

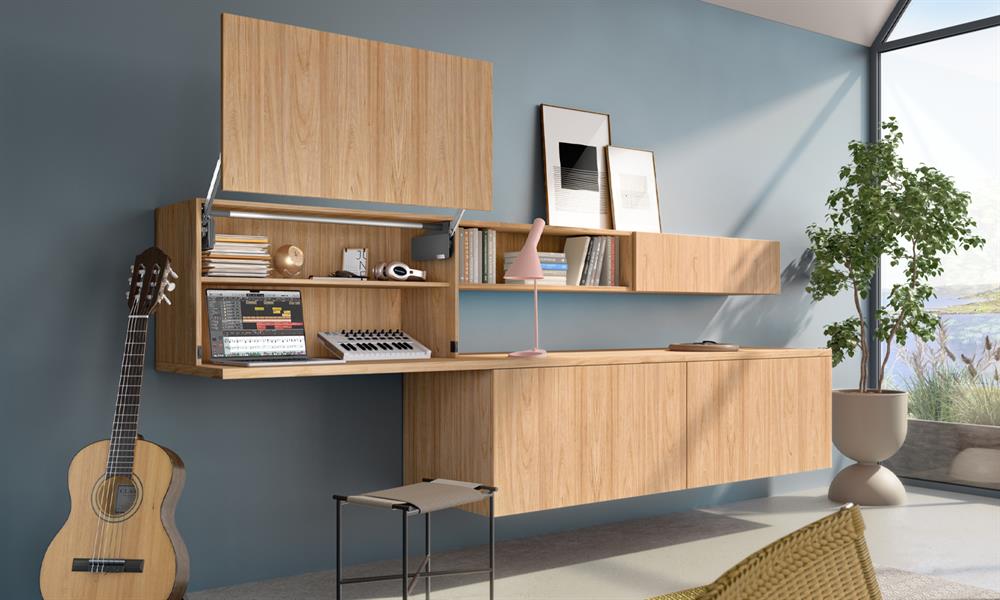

  • Blum Aventos HL top image 1
  • Blum Aventos HL top image 2

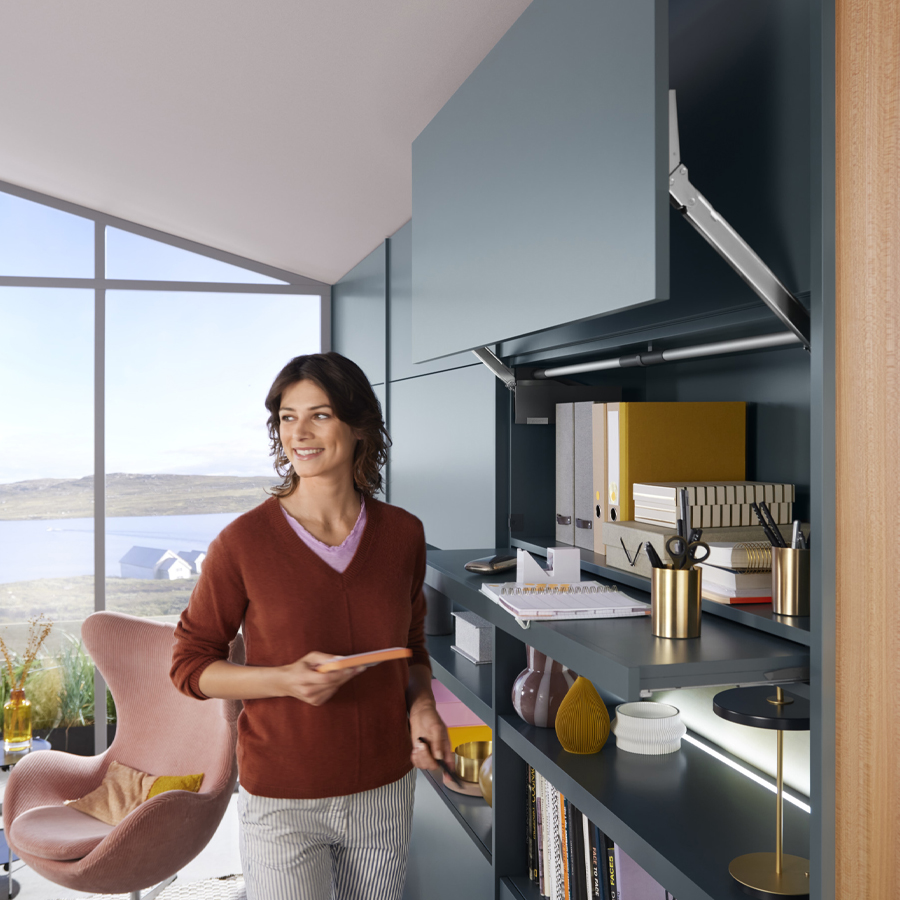

  • Blum Aventos HL top image 3

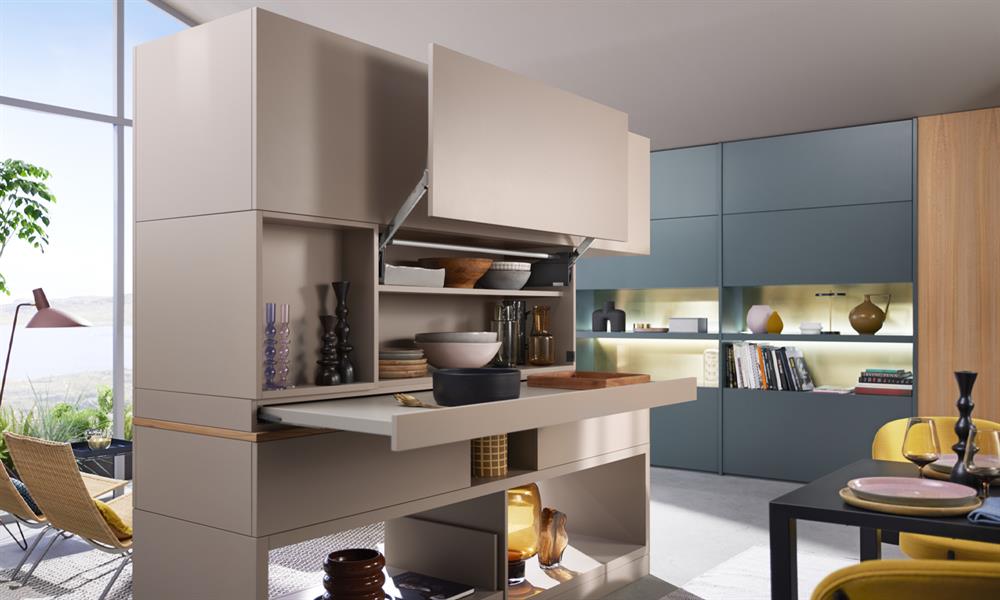

  • Blum Aventos HL top image 4

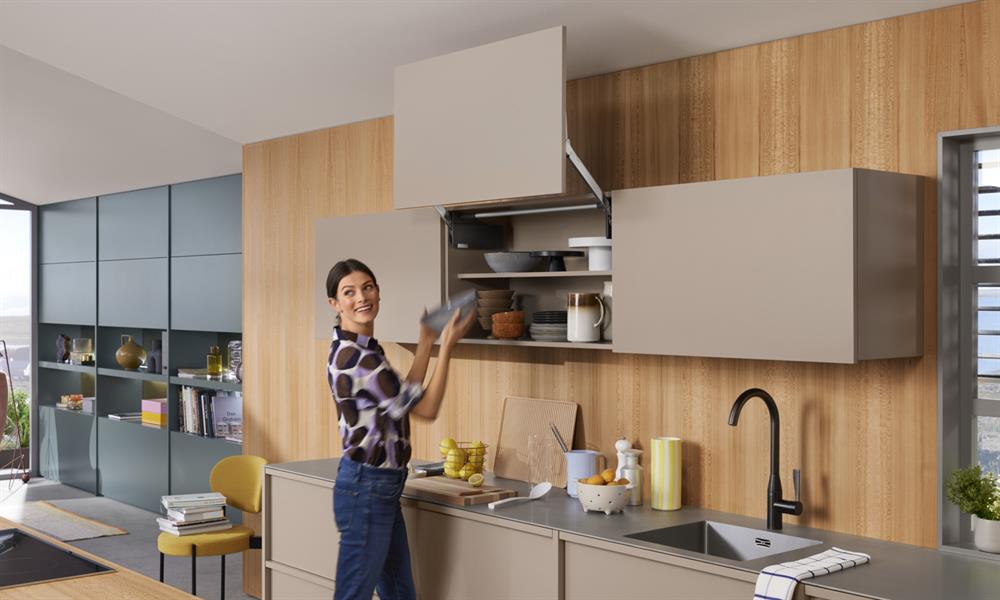

  • Blum Aventos HL top image 5

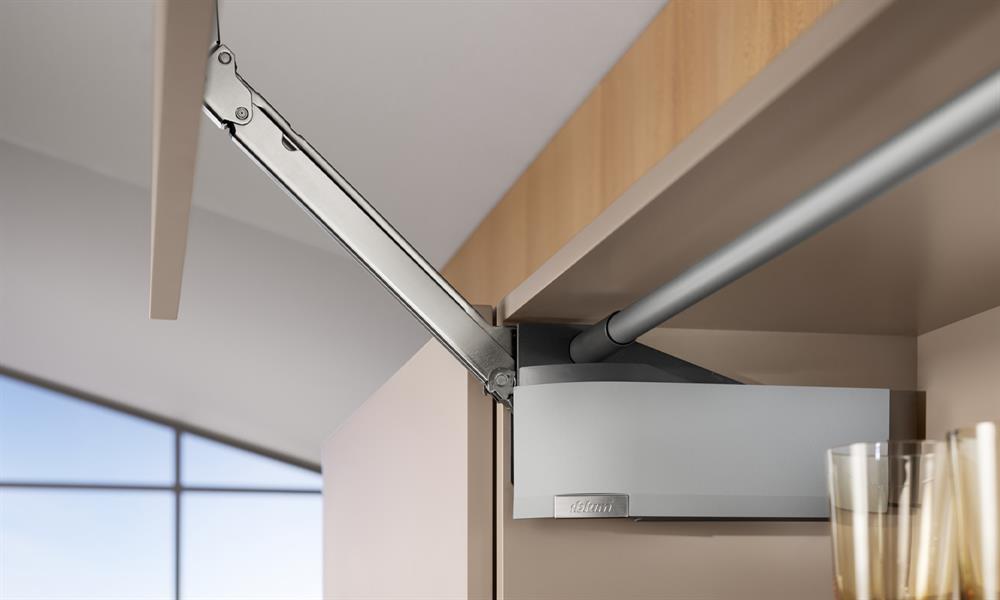

AVENTOS HL top is well suited for cabinets that are positioned above and on worktops: a lift system that gives full freedom of movement. The lift up fitting can be used in cabinets up to 580 mm high and 1800 mm wide. With a cabinet mounted on the worktop, electrical appliances can be concealed behind the front.

  • Ideal for small one-part fronts
  • Cabinet height 300-580 mm
  • Cabinet width up to 1800 mm
  • Internal depth of at least 264 mm
  • Integrated BLUMOTION adjustment feature for soft and effortless closing
  • Light operating forces
  • Variable stop
  • Fixed position of the lift mechanism and front fixing bracket
  • Symmetrical lever arm
  • Tool-free assembly
  • Two lift mechanism fixing methods
  • 3-dimensional adjustment of the front
Read More...

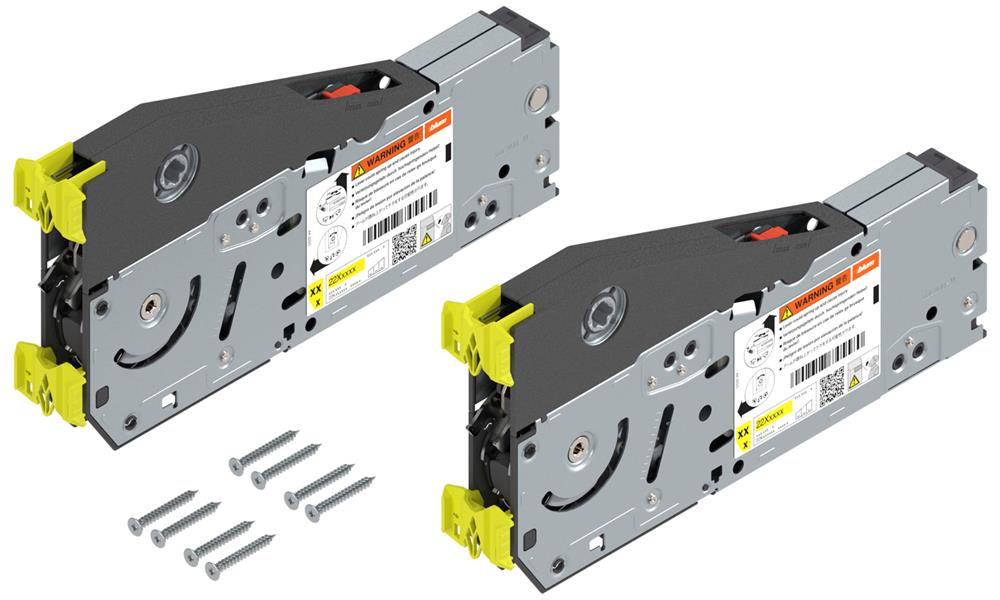

Blum Aventos HL top Lifts

Minimum carcass depth for Aventos HL top is 264mm.

CodeCabinet Height
22L2200
65979
Blum Aventos HL lift mechanism set (1 pair) 300 - 389mm - Servo Drive Compatible
300-389mm£POA  ex vat
22L2500
48109
Blum Aventos HL lift mechanism set (1 pair) 390 - 580mm Servo Drive Compatible
390-580mm£POA  ex vat

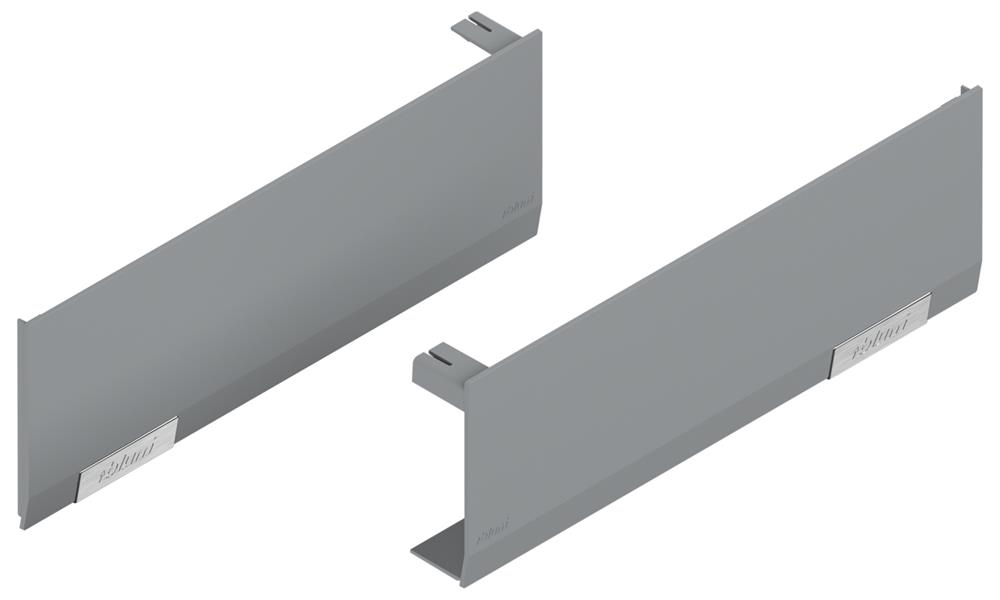

Blum Aventos top Cover Caps

Aventos top range cover caps sets: willl fit HF top, HS top and HL top installations. Not suitable for Servo-Drive applications.

CodeFinish
22.8000
88050

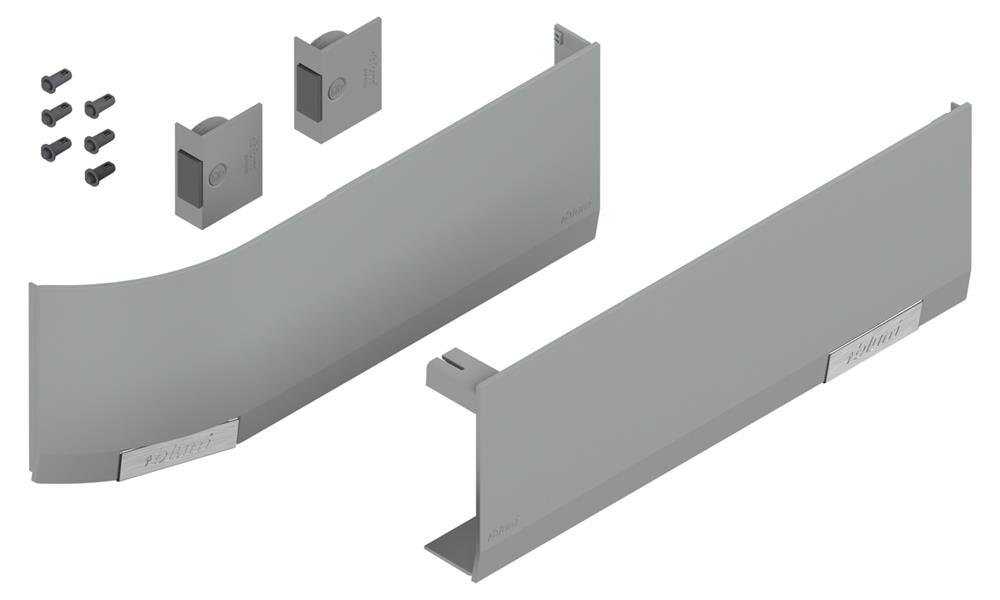

Blum Aventos HF/HS/HL top cover cap set L&R Light Grey
Light Grey£POA  ex vat
22.8000DG
12708

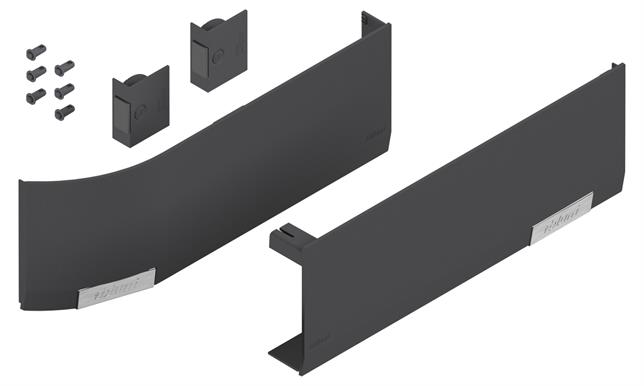

Blum Aventos HF/HS/HL top cover cap set L&R Dark Grey
Dark Grey£POA  ex vat

Blum Aventos HL top Arms

CodeCabinet Height
22L3500
55602

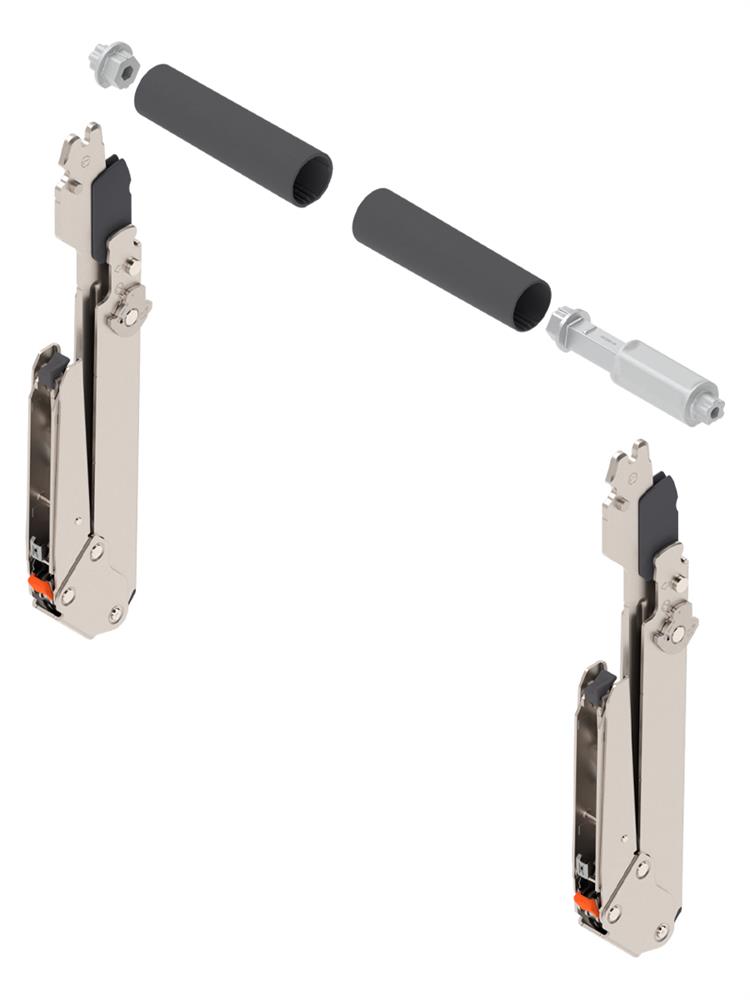

Blum Aventos HL lever arm set (1 pair) 340-389mm high cabinets
340-389mm£POA  ex vat
22L3800
87789
Blum Aventos HL lever arm set (non-handed) 390-540mm high cabinets
390-540mm£POA  ex vat
22L3900
76156
Blum Aventos HL lever arm set (non-handed) 480-580mm high cabinets
480-580mm£POA  ex vat

Blum Aventos HL top Stabiliser Rod

CodeLength
22Q1076U
35523

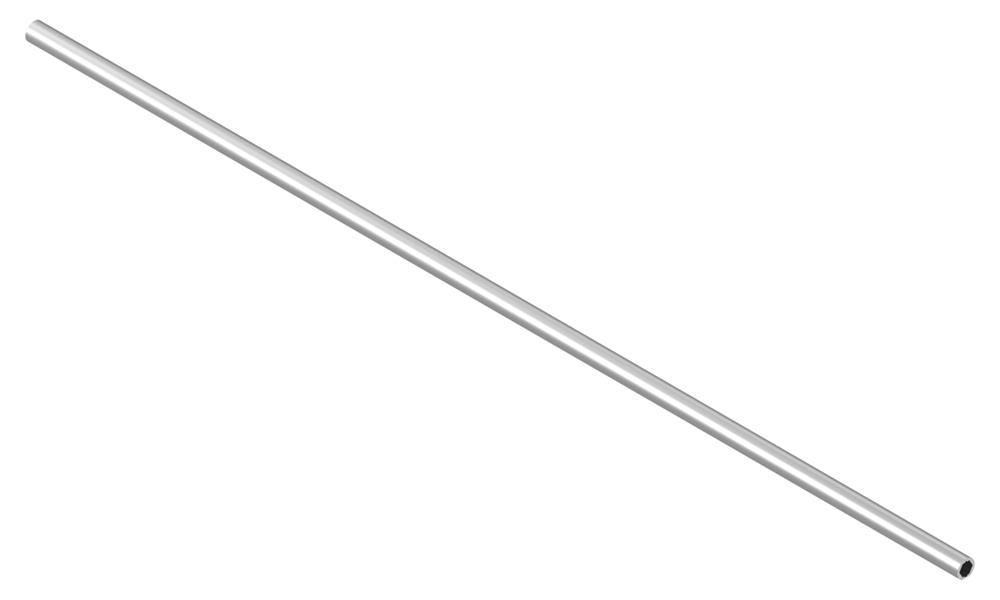

Blum Aventos HL aluminium stabiliser rod 1076mm for cutting to length
1076mm£POA  ex vat

Blum Aventos HL top Fixing Bracket Set

CodeDescription
20S4200
67079

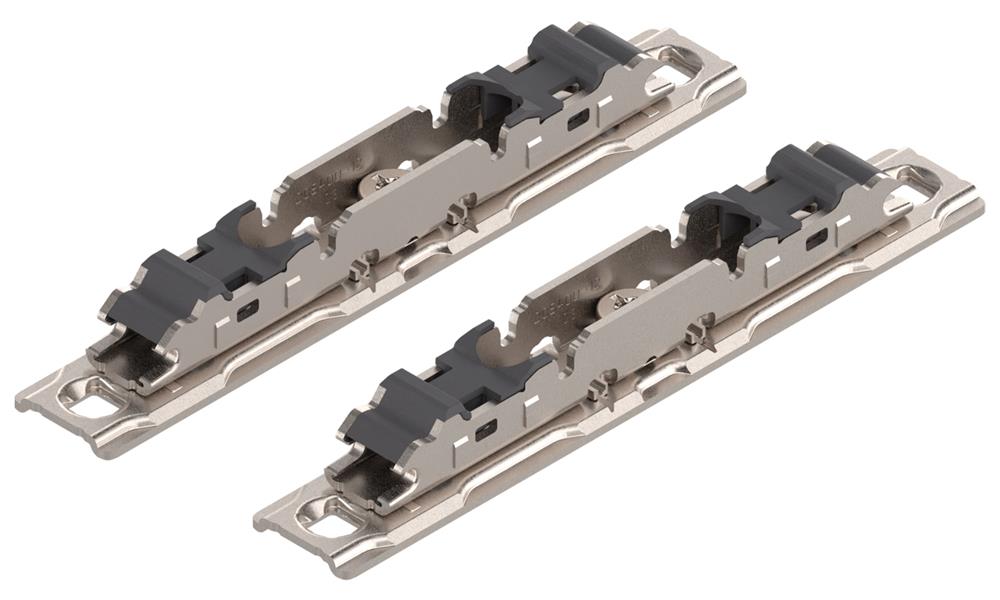

Blum Aventos HK/HL/HS top Front Fixing Bracket Set
Blum Aventos HK/HL/HS top Front Fixing Bracket Set£POA  ex vat

Blum Aventos HF/HS/HL top Servo Drive

Aventos HF drive unit

Additional products required to convert a standard Aventos HF/HS/HL installation to Servo-Drive.

CodeType
23.A000
68925

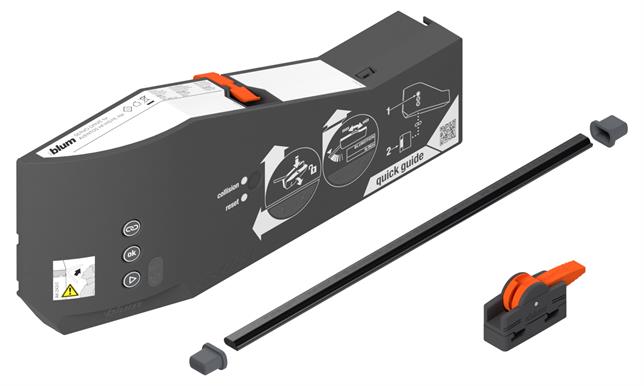

Blum Aventos servo-drive unit set for HF
Aventos HF drive unit£POA  ex vat
23.8000
02148
Blum Aventos HF/HS/HL covercap set servo-drive inc trigger switch L/R Light Grey
HF/HS/HL top cover caps Servo Drive - Light Grey£POA  ex vat
23.8000DG
81649
Blum Aventos HF/HS/HL covercap for servo-drive incl trigger switch L&R Dark Grey
HF/HS/HL top cover caps Servo Drive - Dark Grey£POA  ex vat
Z10NE030A
69281

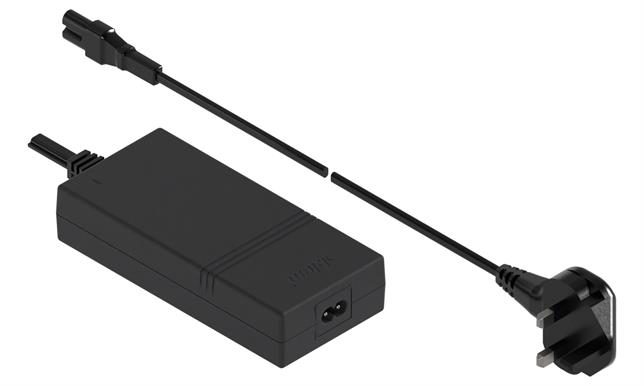

Blum Servo-Drive transformer 24W
24W Transformer£POA  ex vat
Z10M200B
45550
Blum Servo-Drive power cord 2mtr
2mtr Power Cord£POA  ex vat
Z10NG120
77561

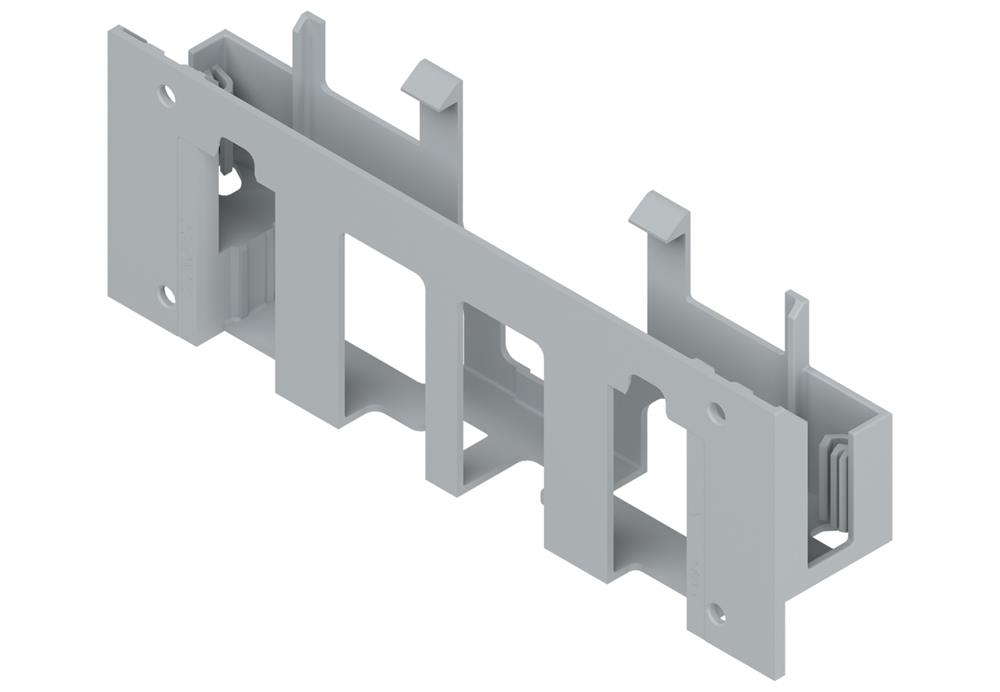

Blum Servo-Drive side mounted transformer housing Z10NG120
Side Mounted Housing£POA  ex vat
