Blum Aventos HF top

Blum Aventos HF top
  • Blum Aventos HF top image 1
  • Blum Aventos HF top image 2
  • Blum Aventos HF top image 3
  • Blum Aventos HF top image 4
  • Blum Aventos HF top image 5

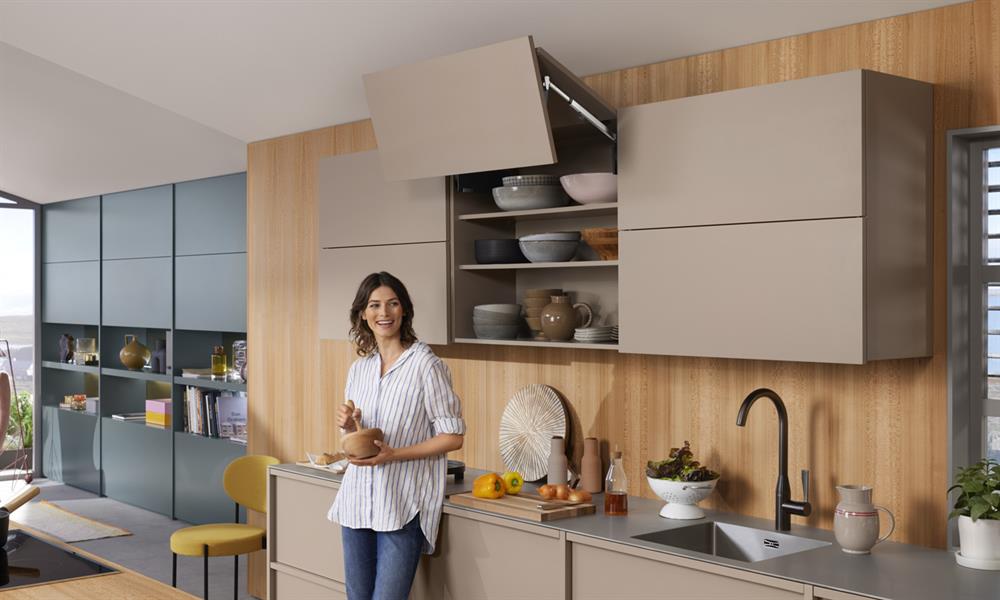

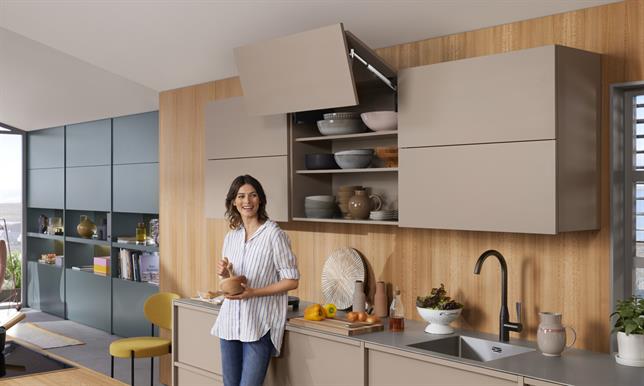

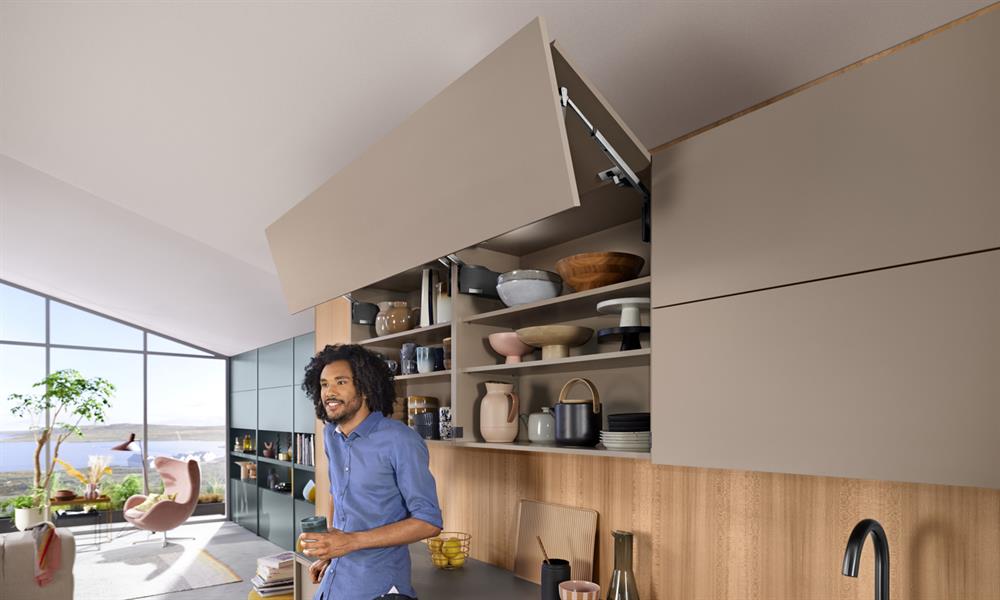

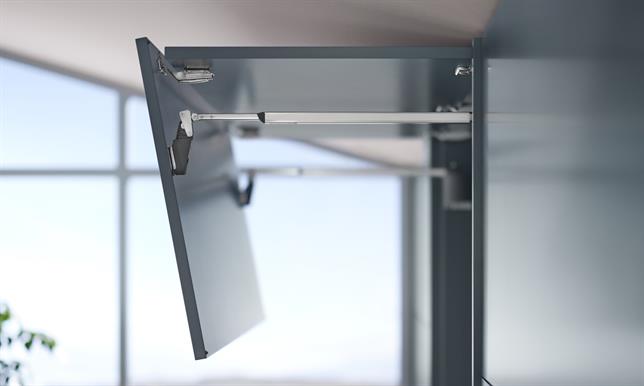

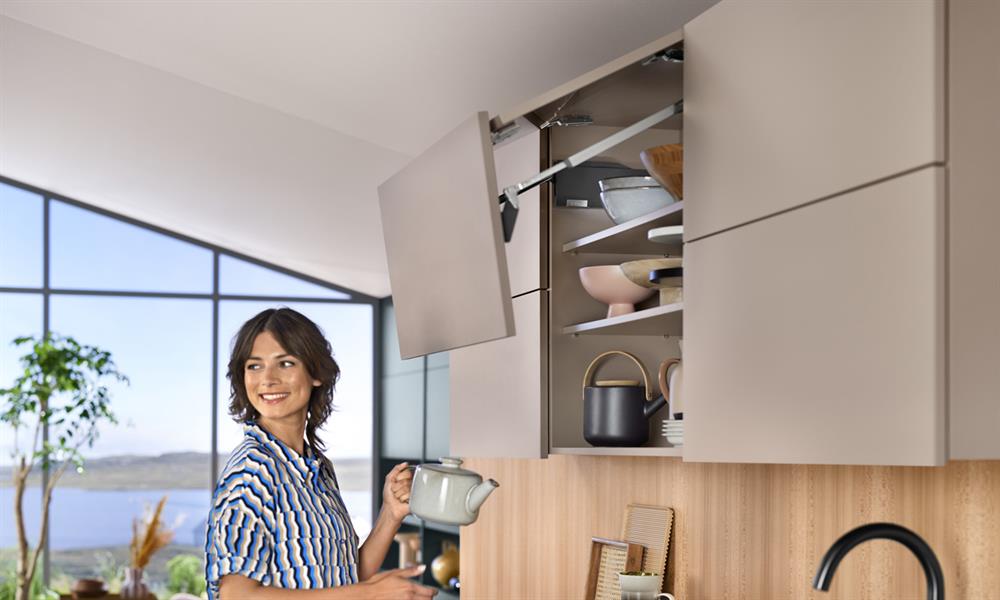

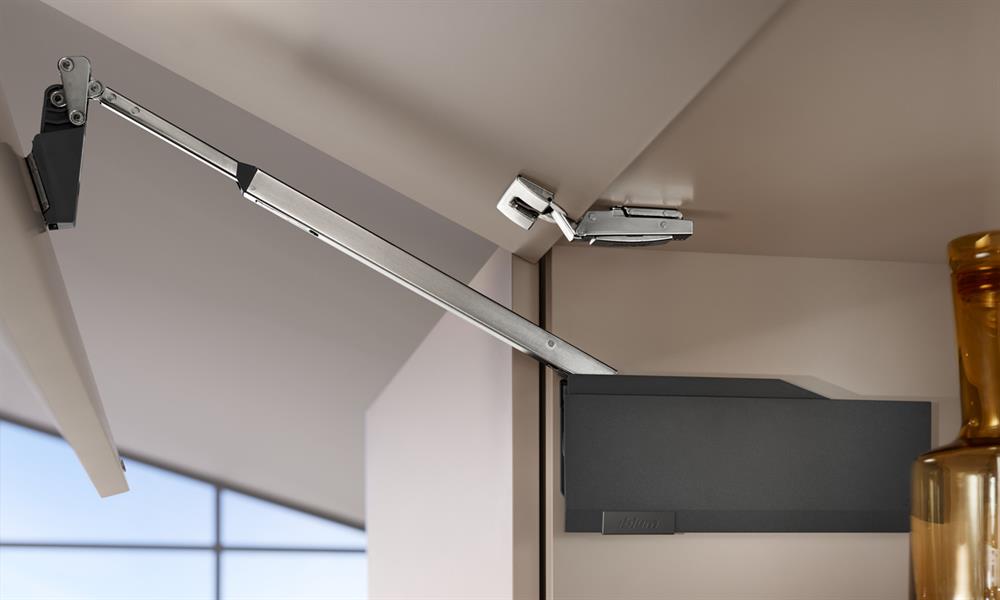

The impressive looking and easy-to-use AVENTOS HF top bi-fold lift system allows the implementation of large wall cabinets with bi-fold fronts. It gives a multitude of design options for high and mid wall cabinets. Narrow-or wide aluminium frames, different material combinations or asymmetrical fronts – everything is possible with AVENTOS HF top.

  • Ideal for higher wall cabinets with bi-fold fronts
  • Cabinet height 480–1200 mm
  • Cabinet width up to 1800 mm
  • Internal depth of at least 264 mm
  • Integrated BLUMOTION adjustment feature for soft and effortless closing
  • Light operating forces
  • Variable stop with integrated opening angle stop
  • Fixed position of the lift mechanism and front fixing bracket
  • Symmetrical lever arm
  • Tool-free assembly
  • Two lift mechanism fixing methods
  • 3-dimensional adjustment of both fronts
  • Centre hinge with finger safety feature
Read More...

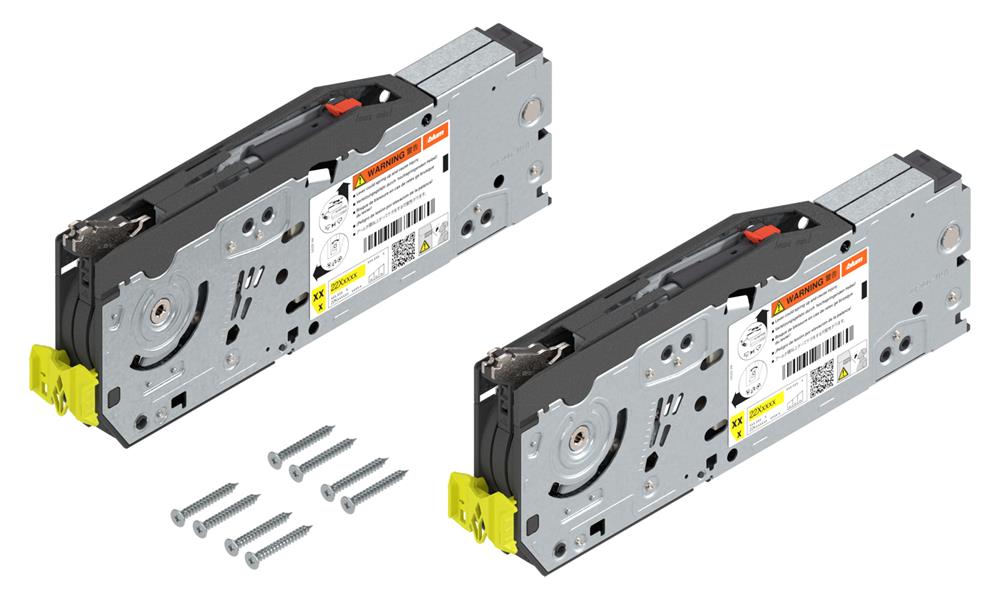

Blum Aventos HF top Lifts

Power factor = carcass height (mm) x front weight including handle (kg). Minimum carcass depth for Aventos HF top is 264mm.

CodePower Factor
22F2500
13232
Blum Aventos HF top Lift set (1 pair) Medium/heavy (Servo Drive compatible)
2700-13500 (with 2 pieces)£POA  ex vat
22F2800
21084
Blum Aventos HF top Lift set (1 pair) heavy/heavy (Servo Drive compatible)
10000-19000 (with 2 pieces)£POA  ex vat

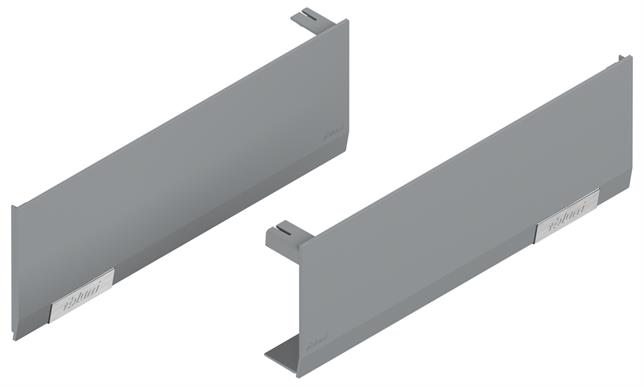

Blum Aventos top Cover Caps

Aventos top range cover caps sets: willl fit HF top, HS top and HL top installations. Not suitable for Servo-Drive applications.

CodeFinish
22.8000
88050
Blum Aventos HF/HS/HL top cover cap set L&R Light Grey
Light Grey£POA  ex vat
22.8000DG
12708
Blum Aventos HF/HS/HL top cover cap set L&R Dark Grey
Dark Grey£POA  ex vat

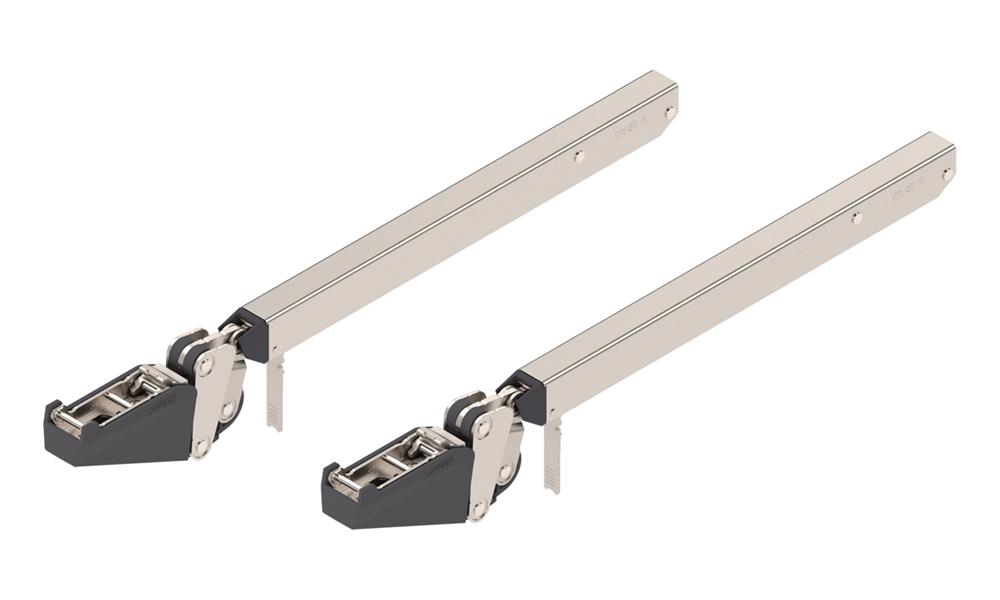

Blum Aventos HF top Arms

Sets include two arms.

CodeCabinet Height
22F3200
36898
Blum Aventos HF telescopic arm set (pair) for cabinet height 480-610mm
480-610mm£POA  ex vat
22F3500
09460
Blum Aventos HF telescopic arm set (pair) for cabinet height 600-910mm
600-910mm£POA  ex vat
22F3900
29039
Blum Aventos hf telescopic arm set (pair) for cabinet height 840-1200mm
840-1200mm£POA  ex vat

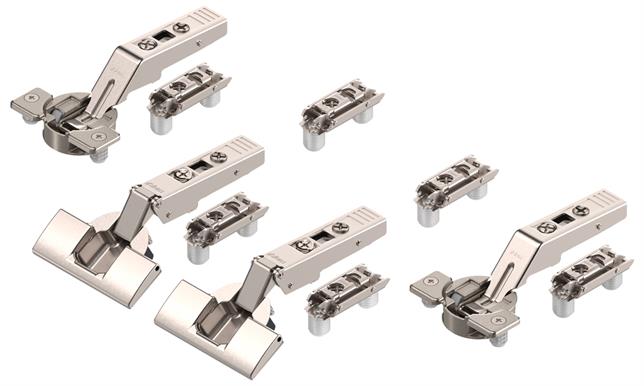

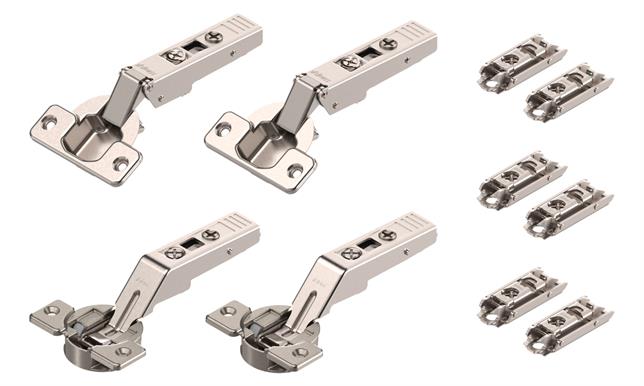

Blum Aventos HF top Hinge Pack

Contains all the hinges and backplates needed to fit an Aventos HF top lift system with wooden fronts.

CodeDescription
78Z5500T11
61949
Blum Aventos screw on hinge pack for wooden fronts
Blum Aventos screw on hinge pack for wooden fronts£POA  ex vat

Blum Aventos HF/HS/HL top Servo Drive

Aventos HF drive unit

Additional products required to convert a standard Aventos HF/HS/HL installation to Servo-Drive.

CodeType
23.A000
68925
Blum Aventos servo-drive unit set for HF
Aventos HF drive unit£POA  ex vat
23.8000
02148
Blum Aventos HF/HS/HL covercap set servo-drive inc trigger switch L/R Light Grey
HF/HS/HL top cover caps Servo Drive - Light Grey£POA  ex vat
23.8000DG
81649
Blum Aventos HF/HS/HL covercap for servo-drive incl trigger switch L&R Dark Grey
HF/HS/HL top cover caps Servo Drive - Dark Grey£POA  ex vat
Z10NE030A
69281

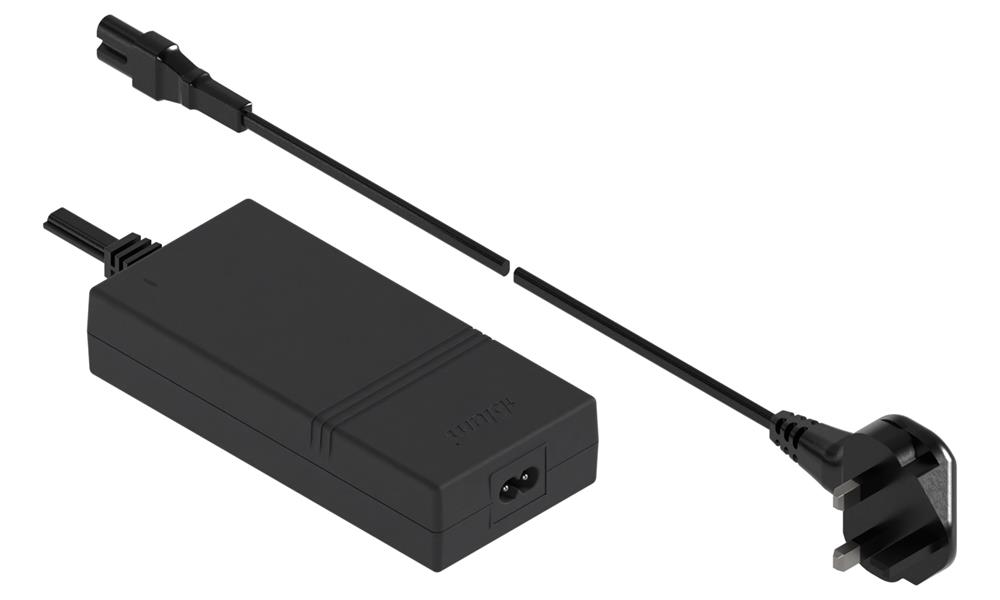

Blum Servo-Drive transformer 24W
24W Transformer£POA  ex vat
Z10M200B
45550
Blum Servo-Drive power cord 2mtr
2mtr Power Cord£POA  ex vat
Z10NG120
77561
Blum Servo-Drive side mounted transformer housing Z10NG120
Side Mounted Housing£POA  ex vat
