Blum Assembly Devices

Our range of Blum assembly devices provides the right solution for all workshop and on-site situations. Tried and tested in everyday applications, Blum’s easy to operate templates and jigs facilitate the efficient assembly of all of Blum’s products.

Show More Information

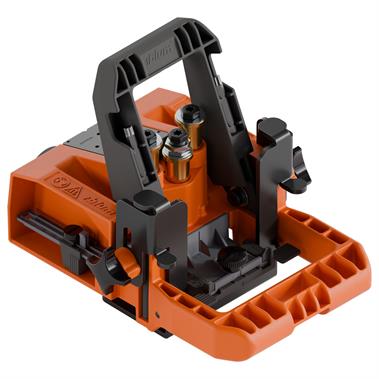

Blum EcoDrill

Eco Drill vertical drilling. A hand held tool that attaches to a drill for accurate hole patterns for Blum hinges.

CodeDescription
M31.1000
65481
Blum EcoDrill
Blum EcoDrill£POA  ex vat

Blum EcoDrill Bit

Spare central drill bit for the EcoDrill.

CodeDiameterLength
M31.ZB35.02
76841
Blum EcoDrill bit 35mm R/H
35mm86.2mm£POA  ex vat

Blum Drilling Template for Blumotion

  • Template for drilling the side fixing positions for BLUMOTION for doors handle side (970.1002), hinge side (970A1002) as well as for TIP-ON (956x1004)
  • 10mm diameter hole
CodeDescription
65.5010
72098
Blum drilling template for blumotion
Blum drilling template for blumotion£POA  ex vat

Blum Drilling Template for Carcase Profiles

For pre-drilling fixing positions for cabinet profiles, hinge mounting plates and peg positions for Aventos.

CodeDescription
65.1051.02
73045
Blum drilling template for carcass profiles
Blum drilling template for carcass profiles£POA  ex vat

Blum Universal Drilling Template

For marking or pre-drilling the fixing positions of front fixing brackets including gallery rail, drawer back and base.

CodeDescription
Special Net Price
ZML.0040
24385
Blum universal drilling template for Aventos Metabox Antaro & Legrabox
Blum universal drilling template for Aventos Metabox Antaro & Legrabox£POA  ex vat

Blum Multi Purpose Drilling Jig

Drilling template for Movento and Tandem. For drilling the runner hook positions and pre-drilling the locking device fixing positions.

CodeDescription
T65.1000.02
89962
Blum tandem multi purpose drilling jig
Blum tandem multi purpose drilling jig£POA  ex vat

Blum Universal Drilling Template 1000mm

Universal drilling template for pre-drilling the fixing positions for cabinet profiles, lift mechanisms, mounting plates and adaptor plates.

CodeDescription
65.1000.01
47047
Blum drilling template length 1000 mm with 4 templates
Blum drilling template length 1000 mm with 4 templates£POA  ex vat

Blum Drilling Template for Tandem

For Tandem hook and peg. For drilling the fixing positions for the peg, lift-off stop and runner hook position.

CodeDescription
T65.1100
86809
Blum drilling template for hook and peg tandem runners
Blum drilling template for hook and peg tandem runners£POA  ex vat

Blum Drilling Template for Hinge Systems

Drilling template for Clip and Modul hinges and accessories.

CodeDescription
65.7500.02
99780
Blum drilling template for clip hinges and plates
Blum drilling template for clip hinges and plates£POA  ex vat

Blum Drilling Template for Hinges

Drilling template for Expando hinges, Inserta hinges, screw-on mounting plates and screw-on boss hinges.

CodeDescription
65.059A
99477
Blum drilling template for hinges and mounting plates
Blum drilling template for hinges and mounting plates£POA  ex vat

Blum Drilling Template for CLIP Mounting Plates

Drilling template for CLIP hinge mounting plates.

CodeDescription
65.5300
61299
Blum drilling template for CLIP mounting plates
Blum drilling template for CLIP mounting plates£POA  ex vat

Blum Boxfix E-T

A table device to allow easy assembly of Tandembox drawers.

CodeDescription
ZMM.0350
74887
Blum Boxfix E-T
Blum Boxfix E-T£POA  ex vat

Blum Drilling Template for Mounting Plates

For Clip cruciform mounting plates (5mm diameter). Aligning function allows easy and accurate drilling of the 32mm dimension.

CodeDescription
65.5070
20887
Blum drilling template for Modul/Clip Cruciform Mounting Plates
Blum drilling template for Modul/Clip Cruciform Mounting Plates£POA  ex vat

Blum Centring Drill Bit

For drilling centre positions for drawer profiles and back fixing brackets.

CodeDescription
M01.ZZ03.031
68687
Blum Centring Drill Bit
Blum Centring Drill Bit£POA  ex vat

Blum Legrabox Base Router Additional Cutter Head

For cutting the extra notch which is required when using 17-19mm thick MFC backs and bases with Legrabox.

CodeDescription
M35.ZD19
87439
Blum Legrabox base router additional cutter for 17-19mm thick board
Blum Legrabox base router additional cutter for 17-19mm thick board£POA  ex vat

Blum Legrabox Base Router Additional Carriage

For easy and precise notching of the drawer / pull-out bases.

CodeDescription
M35.ZS00
90851
Blum Legrabox base router additional carriage
Blum Legrabox base router additional carriage£POA  ex vat

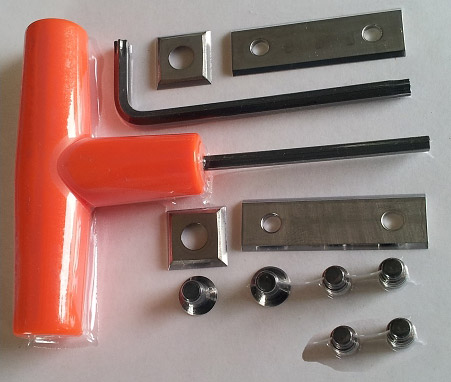

Blum Legrabox Base Router Replacement Blade Kit

Replacement blades and grub screws for the Blum base router.

CodeDescription
Special Net Price
M35.ZW40
21978
Blum Legrabox base router replacement blades
Blum Legrabox base router replacement blades£POA  ex vat

Blum Tip-On Blumotion Set Up Template

For Antaro

Precise front gap adjustment: the front gap can be conveniently adjusted to 2.5mm using this gap checking / adjustment template, regardless of whether the front is already installed.

CodeType
65.5627
11797
Blum Tip-On Blumotion set up template for Tandembox Antaro
Antaro£POA  ex vat
65.5631
66897
Blum Tip-on Blumotion Front Gap Template for Legrabox
Legrabox£POA  ex vat

Blum Drill Bit

Blum drill bit with roof tip, 2.5mm x 57mm left hand

CodeDescription
M01.ZB02.D3
55396
Blum drill bit with roof tip 2.5mm x 57mm left hand
Blum drill bit with roof tip 2.5mm x 57mm left hand£POA  ex vat

Blum Universal Marking Template

For marking fixing positions for cabinet profiles, lift mechanisms, mounting and adapter plates. Can be used with assembled or unassembled cabinets.

CodeDescription
65.5340.01
52617
Blum Universal marking template for front fixing brackets
Blum Universal marking template for front fixing brackets£POA  ex vat

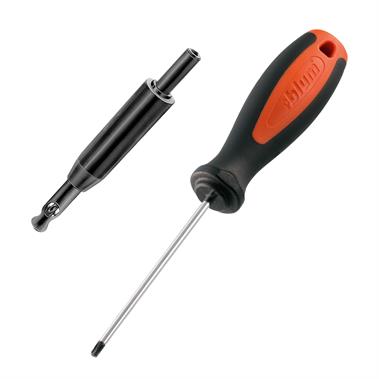

Blum Torx T20 Screwdriver

For the adjustment of Legrabox drawers.

CodeDescription
SR-DREH.TX2
36055
Blum Screwdriver Torx T20
Blum Screwdriver Torx T20£POA  ex vat
