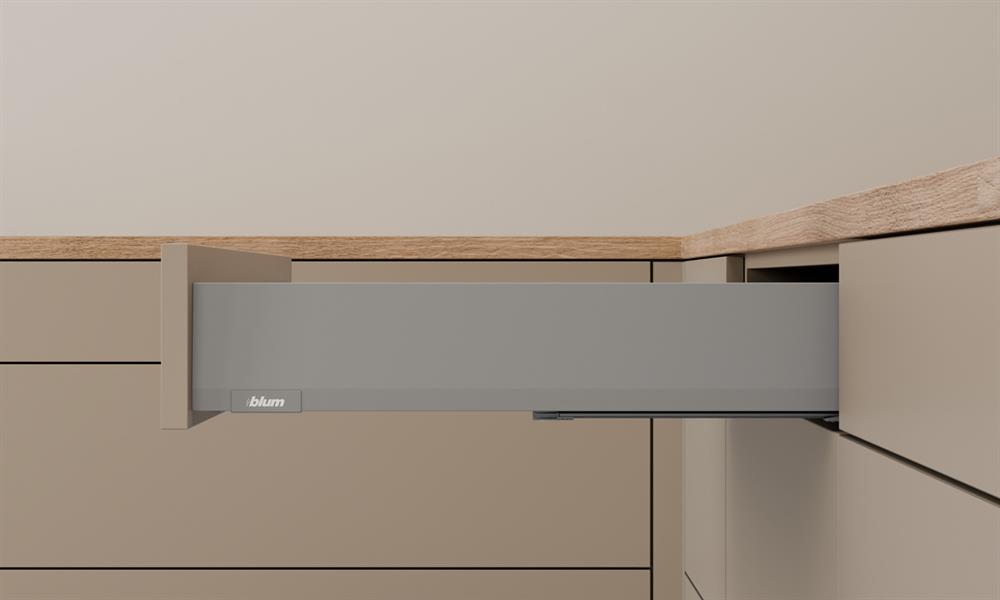

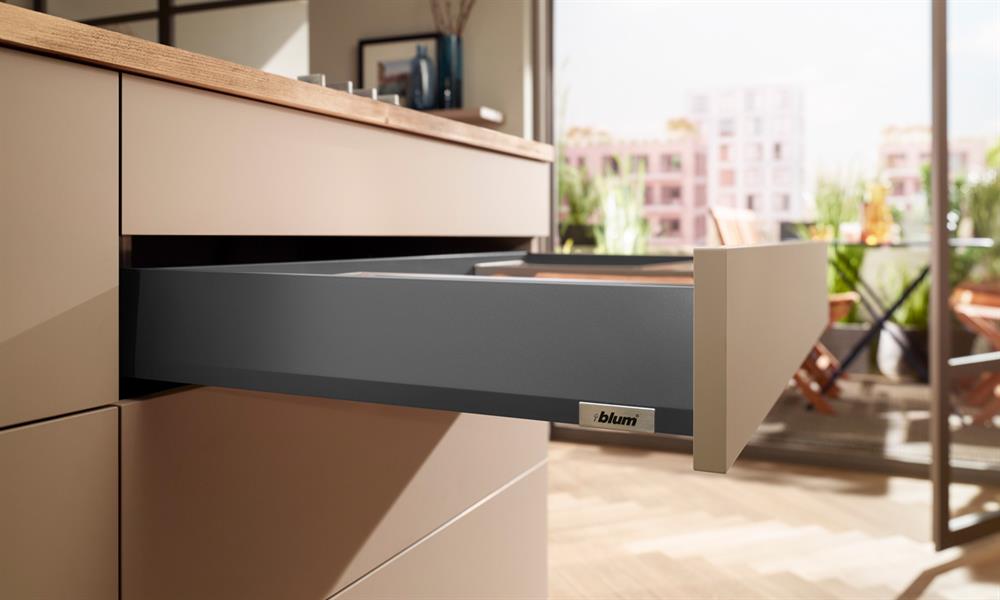

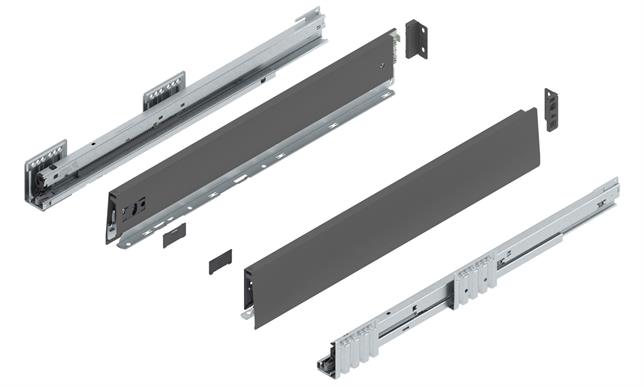

Merivobox Blumotion and Tip-On M-Height Drawers

Sets Include:

2 x Blumotion runners (Tip-On compatible when used with the relevant latch set & synchro linkage)
2 x Drawer sides
2 x Rear fixing brackets
2 x Cover caps

Two front fixing brackets (ZF4.1002 or ZF4.10I2) are required per drawer.

Code	Finish	Depth	Weight Rating	Runners	Height
MERIVO.270M40.OG 42441Blum Merivobox M-Height (270mm) Orion Grey 40kg	Orion Grey	270mm	40kg	Blumotion	91mm	£POA ex vat
MERIVO.350M40.OG 54452Blum Merivobox M-Height (350mm) Orion Grey 40kg	Orion Grey	350mm	40kg	Blumotion	91mm	£POA ex vat
MERIVO.400M40.OG 76773Blum Merivobox M-Height (400mm) Orion Grey 40kg	Orion Grey	400mm	40kg	Blumotion	91mm	£POA ex vat
MERIVO.450M40.OG 85656Blum Merivobox M-Height (450mm) Orion Grey 40kg	Orion Grey	450mm	40kg	Blumotion	91mm	£POA ex vat
MERIVO.450M70.OG 48373Blum Merivobox M-Height (450mm) Orion Grey 70kg	Orion Grey	450mm	70kg	Blumotion	91mm	£POA ex vat
MERIVO.500M40.OG 71812Blum Merivobox M-Height (500mm) Orion Grey 40kg	Orion Grey	500mm	40kg	Blumotion	91mm	£POA ex vat
MERIVO.500M70.OG 74128Blum Merivobox M-Height (500mm) Orion Grey 70kg	Orion Grey	500mm	70kg	Blumotion	91mm	£POA ex vat

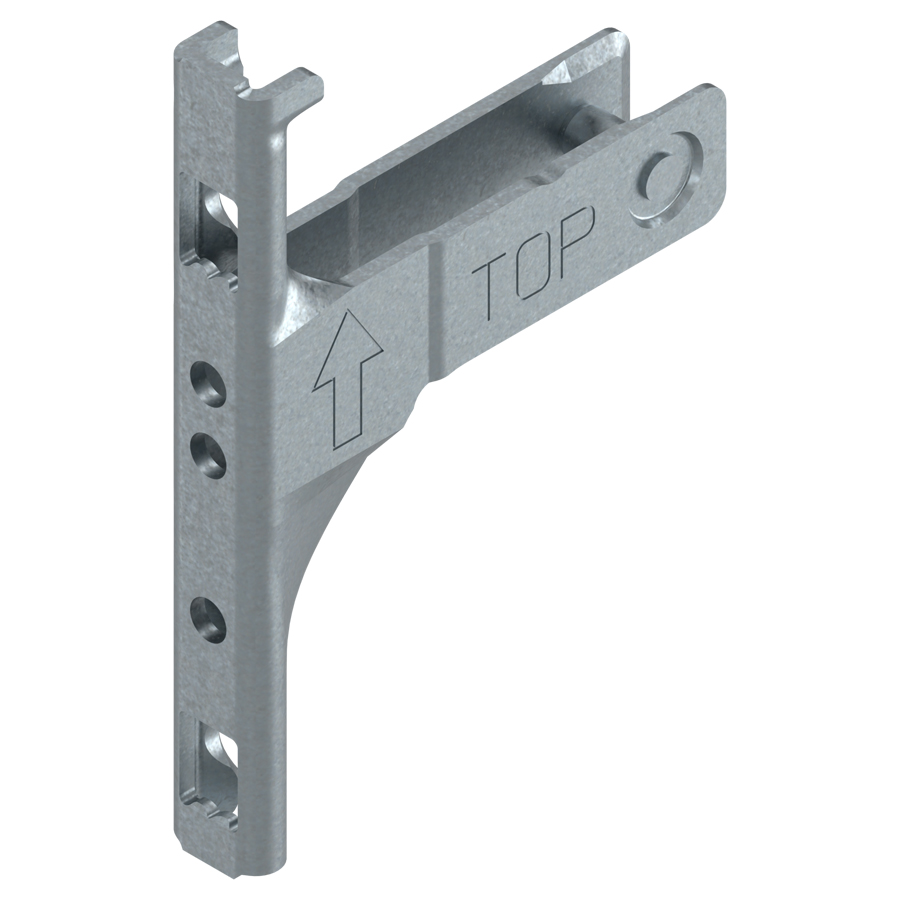

Merivobox Front Fixing Brackets

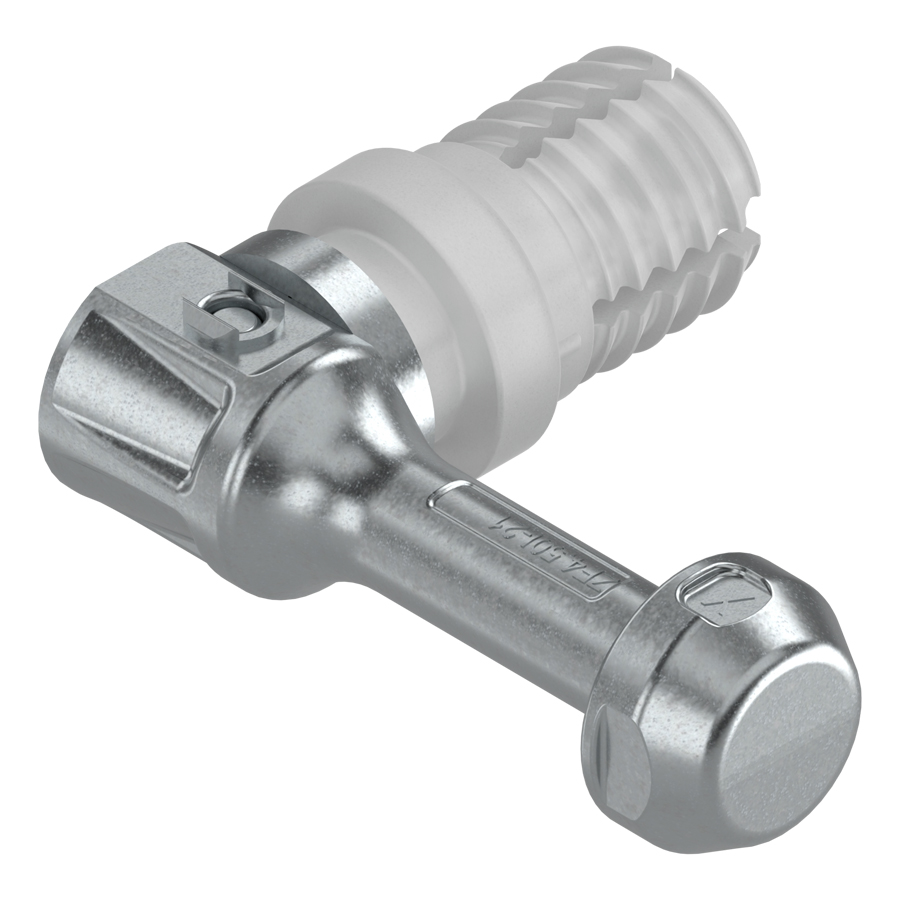

ZF4.1002 (Screw-on) and ZF4.10I2 (Inserta) - suitable for N / M / K and E-Height drawers. Two required per drawer

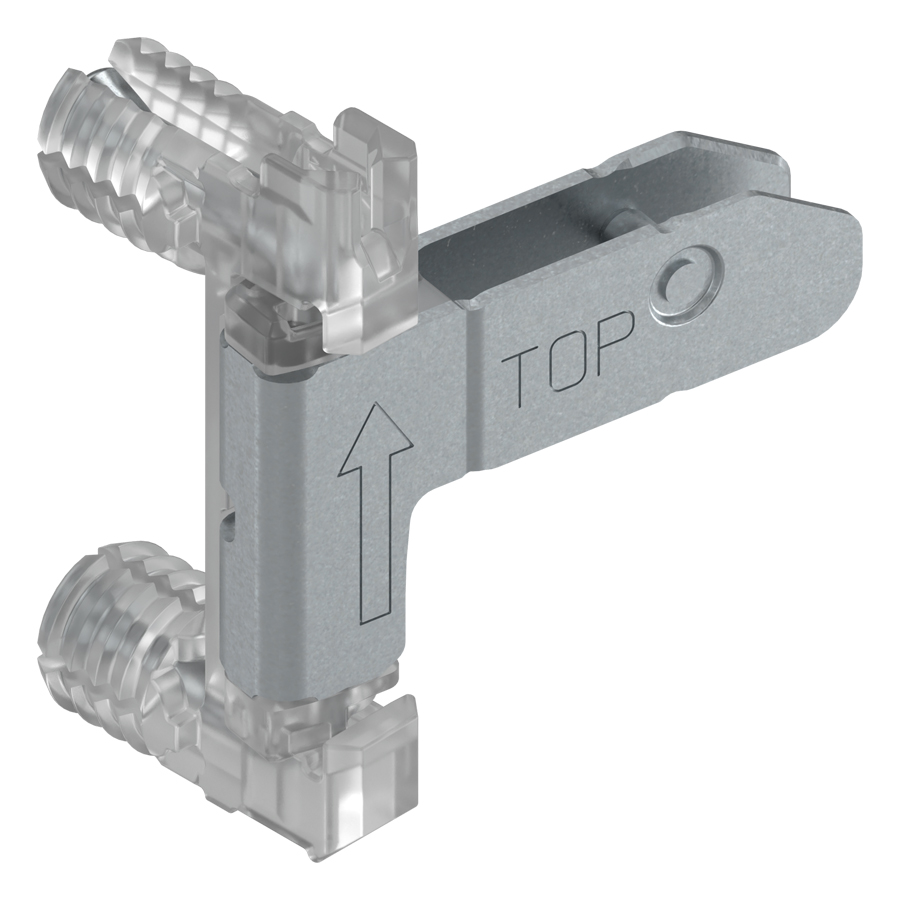

E-Height drawers (BOXCOVER, BOXCAP and Gallery) also require two ZF4.5002 (Screw-on) or ZF4.50I2 (Inserta) to complete assembly

Code	Height
ZF4.1002 24236Blum Merivobox front fixing bracket bottom, screw-on, symmetrical	N / M / K / E	£POA ex vat
ZF4.10I2 66103Blum Merivobox front fixing bracket bottom, INSERTA, symmetrical	N / M / K / E	£POA ex vat
ZF4.5002 61774Blum Merivobox front fixing bracket top, screw-on, symmetrical	E	£POA ex vat
ZF4.50I2 72416Blum Merivobox front fixing bracket top, INSERTA, symmetrical	E	£POA ex vat

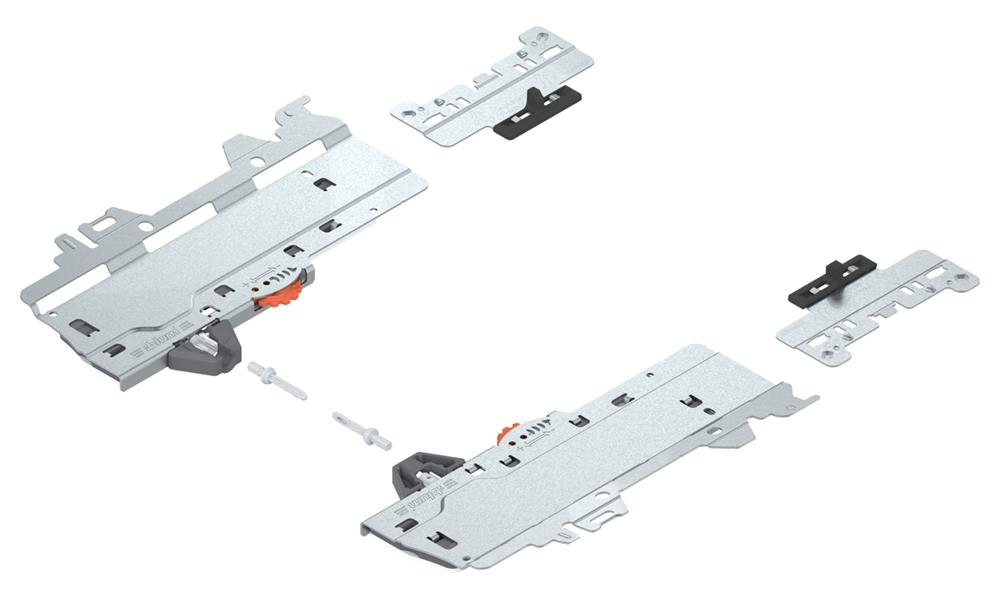

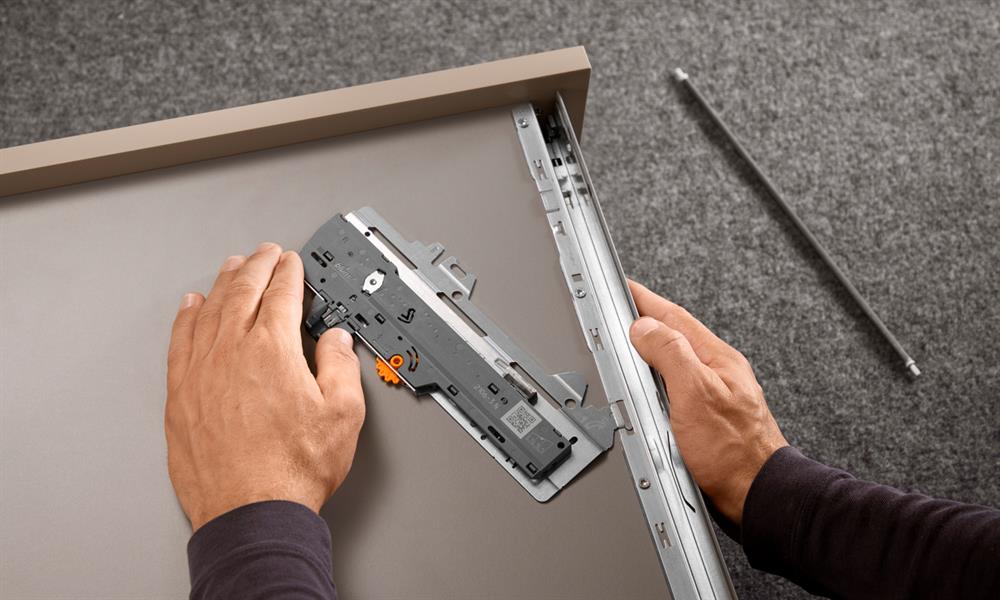

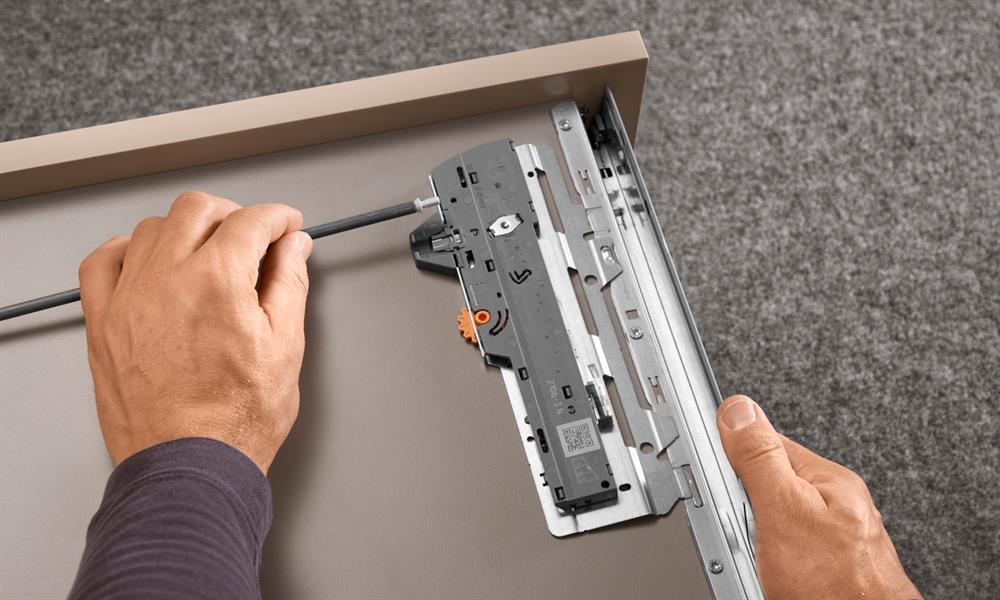

S0 and S1 (T60H4040 / T60H4140) unit suitable for 270mm-300mm depth drawers.

L1/L3 units (T60H4340 / T60H4540) suitable for 350mm-600mm depth drawers.

L5 unit (T60H4570) suitable for 450mm-600mm depth drawers.

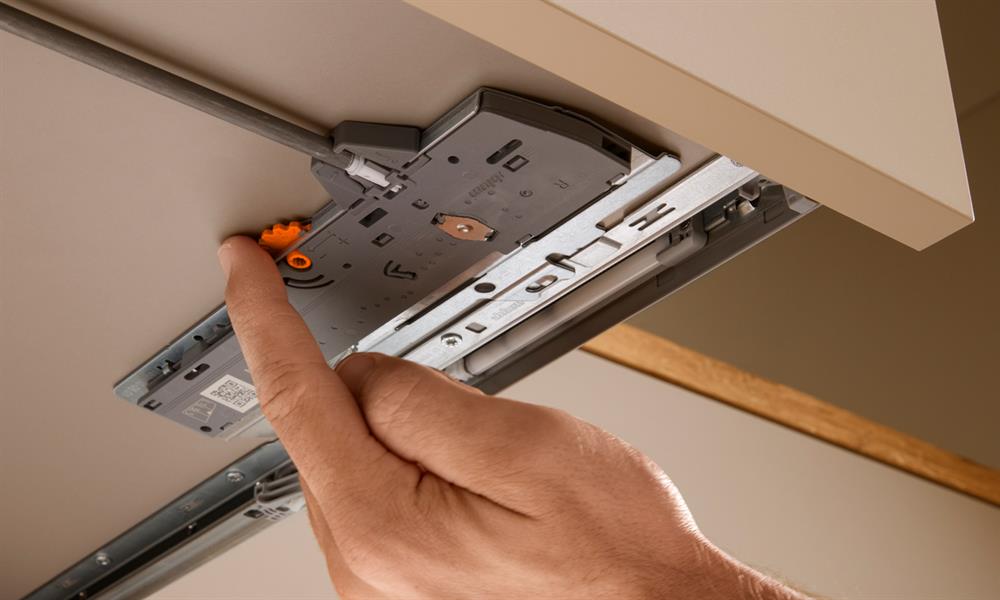

Each set comes with a pair of Tip-On Blumotion Synchronisation Adapters; if these are to be used, a Synchronisation Linkage (T60.1125W) is required.

Code	Nominal Length	Weight Range
T60H4040 62695Blum TIP-ON Blumotion unit, adapter and latch set S0 for Merivobox 10Kg R&L	270mm-300mm	0-10kg	£POA ex vat
T60H4140 50240Blum TIP-ON Blumotion unit, adapter and latch set S1 for Merivobox 10-20Kg R&L	270mm-300mm	10-20kg	£POA ex vat
T60H4340 13192Blum TIP-ON Blumotion unit, adapter and latch set L1 for Merivobox 20Kg R&L	350mm-600mm	0-20kg	£POA ex vat
T60H4540 92869Blum TIP-ON Blumotion unit, adapter and latch set L3 for Merivobox 15-40Kg R&L	350mm-600mm	15-40kg	£POA ex vat
T60H4570 60066Blum TIP-ON Blumotion unit, adapter and latch set L5 for Merivobox 35-70Kg R&L	450mm-600mm	35-70kg	£POA ex vat

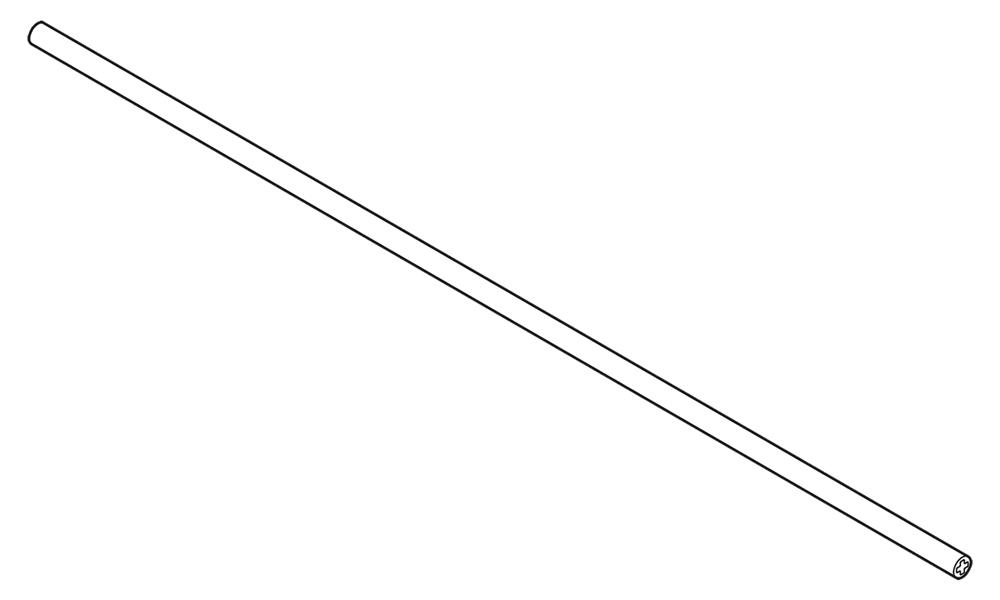

Required if using the supplied Synchronisation Adapters.

For cutting to size.

	Code	Length
	T60.1125W 29646Blum Tip-On Blumotion Synchronisation Linkage for cutting to size	1125mm	£POA ex vat

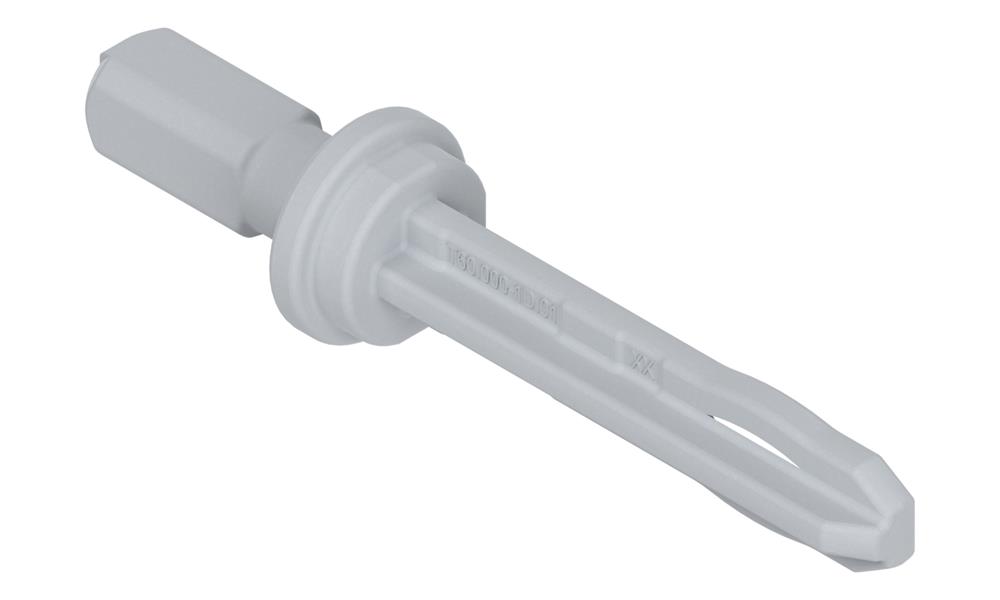

Spare adapters for use with the synchronisation linkage.

	Code	Description
	T60.000D 87656Blum Tip-On Blumotion Synchronisation Adaptor	Blum Tip-On Blumotion Synchronisation Adaptor	£POA ex vat
