Merivobox Blumotion and Tip-On N-Height Drawers

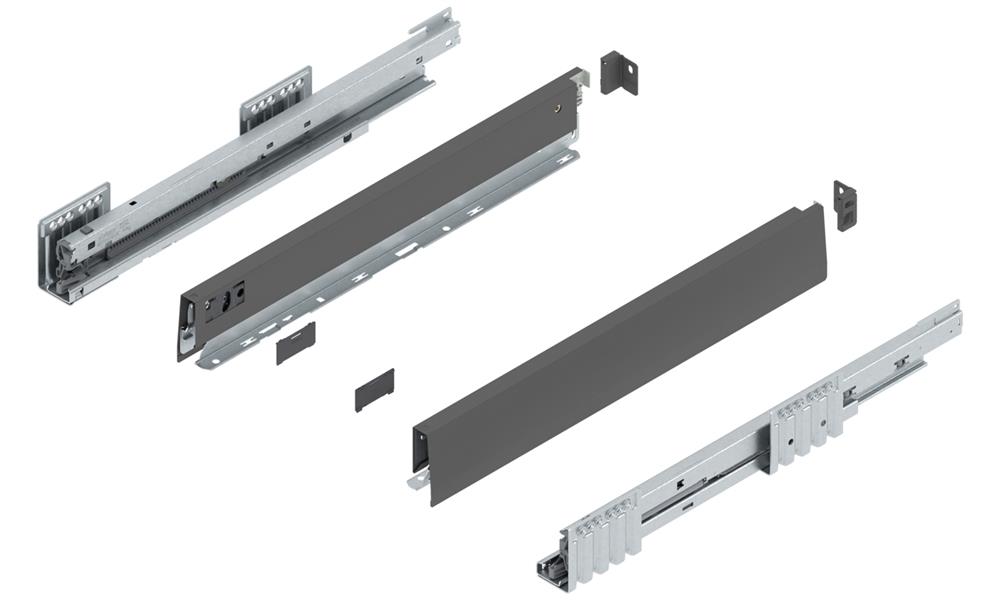

Sets Include:

  • 2 x Blumotion runners (Tip-On compatible when used with the relevant latch set & synchro linkage)
  • 2 x Drawer sides
  • 2 x Rear fixing brackets
  • 2 x Cover caps

Two front fixing brackets (ZF4.1002 or ZF4.10I2) are required per drawer.

Merivobox Blumotion and Tip-On N-Height Drawers
Merivobox Blumotion and Tip-On N-Height Drawers
Merivobox Blumotion and Tip-On N-Height Drawers
CodeFinishDepthWeight RatingRunnersHeightPrice
MERIVO.400N40.OG
13490
Blum Merivobox N-Height (400mm) Orion Grey 40kgOrion Grey400mm40kgBlumotion68.5mm£POA
MERIVO.450N40.OG
68650
Blum Merivobox N-Height (450mm) Orion Grey 40kgOrion Grey450mm40kgBlumotion68.5mm£POA
MERIVO.500N40.OG
42389
Blum Merivobox N-Height (500mm) Orion Grey 40kgOrion Grey500mm40kgBlumotion68.5mm£POA

Merivobox Front Fixing Brackets

  • ZF4.1002 (Screw-on) and ZF4.10I2 (Inserta) - suitable for N / M / K and E-Height drawers. Two required per drawer
  • E-Height drawers (BOXCOVER, BOXCAP and Gallery) also require two ZF4.5002 (Screw-on) or ZF4.50I2 (Inserta) to complete assembly
ZF4.1002 (Screw-on)
ZF4.10I2 (Inserta)
ZF4.5002 (Screw-on)
ZF4.50I2 (Inserta)
CodeHeightPrice
ZF4.1002
24236
Blum Merivobox front fixing bracket bottom, screw-on, symmetricalN / M / K / E£POA
ZF4.10I2
66103
Blum Merivobox front fixing bracket bottom, INSERTA, symmetricalN / M / K / E£POA
ZF4.5002
61774
Blum Merivobox front fixing bracket top, screw-on, symmetricalE£POA
ZF4.50I2
72416
Blum Merivobox front fixing bracket top, INSERTA, symmetricalE£POA

Merivobox Blumotion and Tip-On Unit and Latch Sets

S0 and S1 (T60H4040 / T60H4140) unit suitable for 270mm-300mm depth drawers.

L1/L3 units (T60H4340 / T60H4540) suitable for 350mm-600mm depth drawers.

L5 unit (T60H4570) suitable for 450mm-600mm depth drawers.

Each set comes with a pair of Tip-On Blumotion Synchronisation Adapters; if these are to be used, a Synchronisation Linkage (T60.1125W) is required.

Stuart Rules
Stuart Rules
Stuart Rules
Stuart Rules
Stuart Rules
CodeNominal LengthWeight RangePrice
T60H4040
62695
Blum TIP-ON Blumotion unit, adapter and latch set S0 for Merivobox 10Kg R&L270mm-300mm0-10kg£POA
T60H4140
50240
Blum TIP-ON Blumotion unit, adapter and latch set S1 for Merivobox 10-20Kg R&L270mm-300mm10-20kg£POA
T60H4340
13192
Blum TIP-ON Blumotion unit, adapter and latch set L1 for Merivobox 20Kg R&L350mm-600mm0-20kg£POA
T60H4540
92869
Blum TIP-ON Blumotion unit, adapter and latch set L3 for Merivobox 15-40Kg R&L350mm-600mm15-40kg£POA
T60H4570
60066
Blum TIP-ON Blumotion unit, adapter and latch set L5 for Merivobox 35-70Kg R&L450mm-600mm35-70kg£POA

Blumotion and Tip-On Synchronisation Linkage

Required if using the supplied Synchronisation Adapters.

For cutting to size.

Stuart Rules
CodeLengthPrice
T60.1125W
29646
Blum Tip-On Blumotion Synchronisation Linkage for cutting to size1125mm£POA

Blumotion and Tip-On Synchronisation Adapter

Spare adapters for use with the synchronisation linkage.

Stuart Rules
CodeDescriptionPrice
T60.000D
87656
Blum Tip-On Blumotion Synchronisation AdaptorBlum Tip-On Blumotion Synchronisation Adaptor£POA
