Blum Onyx Black Clip Top Blumotion Hinges

Blum Onyx Black Clip Top Blumotion Hinges
  • Blum Onyx Black Clip Top Blumotion Hinges image 1
  • Blum Onyx Black Clip Top Blumotion Hinges image 2
  • Blum Onyx Black Clip Top Blumotion Hinges image 3

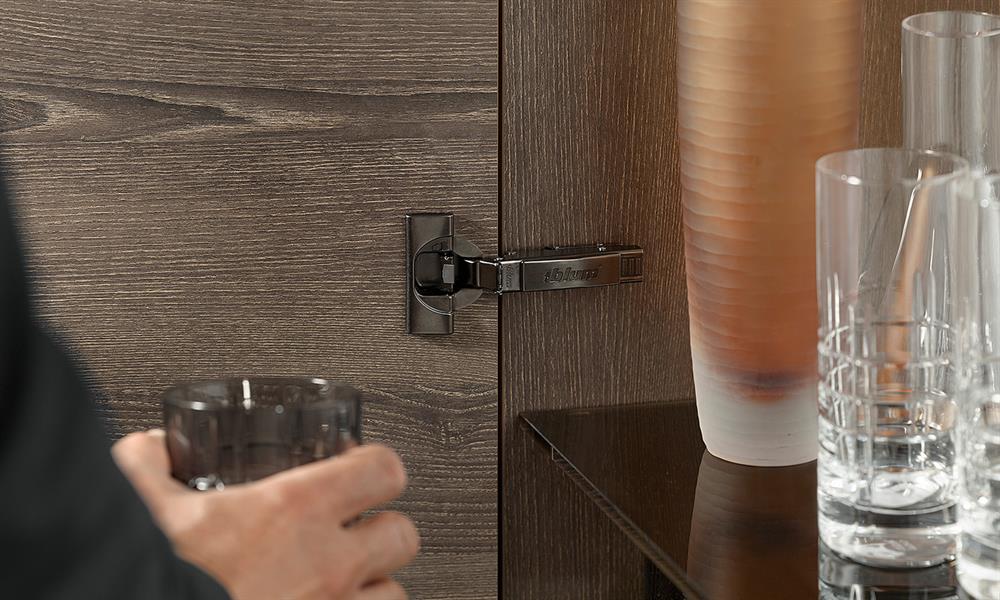

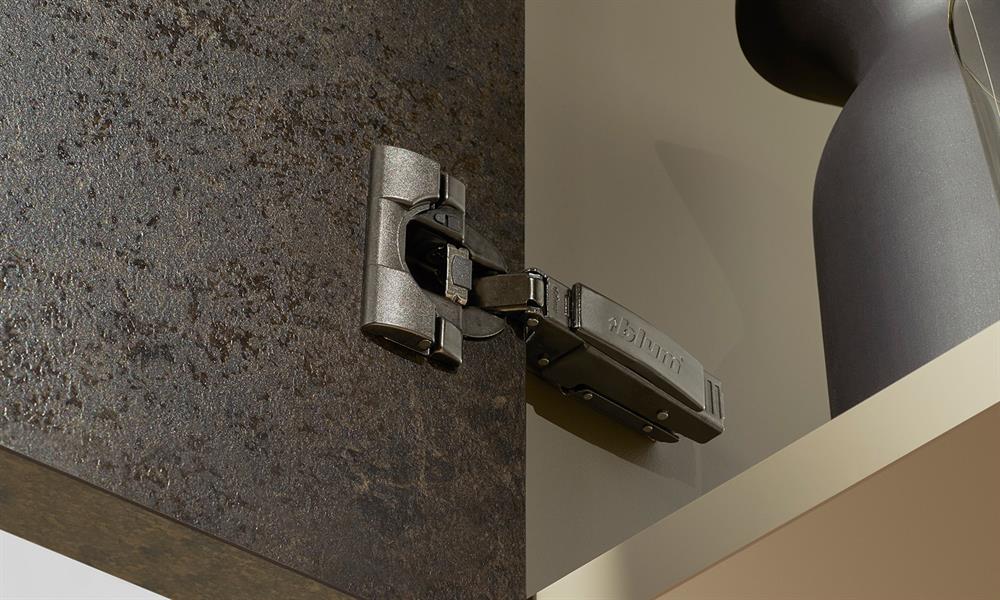

Dark furniture radiates sleek elegance, so it makes sense to discreetly complement such pieces with equally elegant hinges in Onyx Black. Blum's range of hinges in Onyx Black create visual impact. They give a greater scope for designing fine furniture without compromising on form.

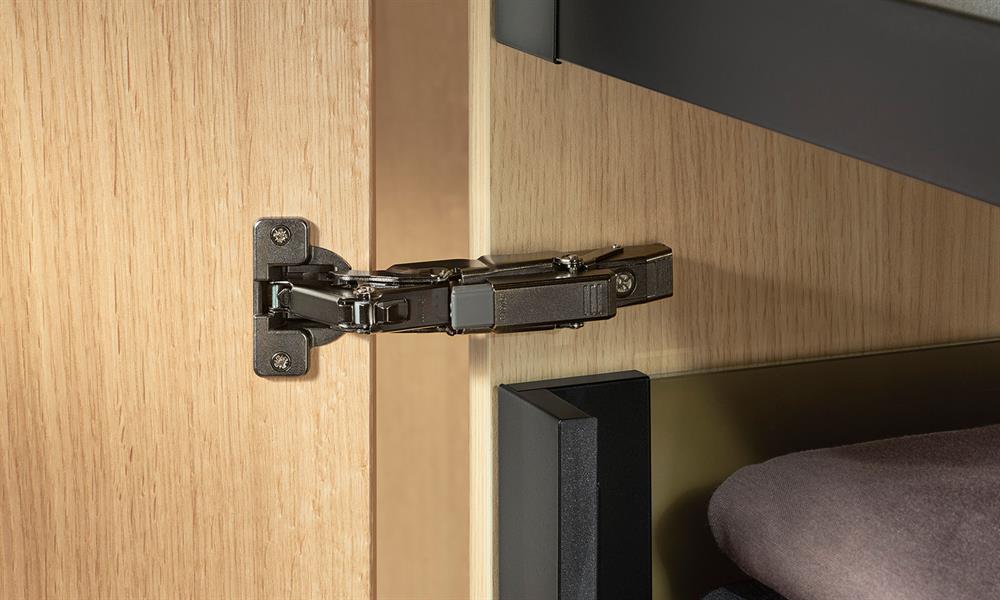

Even when used on light-coloured furniture and cabinets, Onyx Black hinges and components provide a welcome contrast to the industry standard nickel coloured options.

Onyx Black hinges offer a high-class option, whilst retaining the features of the Clip-Top Blumotion range:

  • Cabinet doors close silently and effortlessly with integrated Blumotion
  • 3-dimensional adjustment
  • Tool-free door-to-carcass assembly and removal

Please note: when using with Bevelled edge doors (i.e. Oslo, Milano etc.) the Blum spacer (18308) could be required.

Read More...

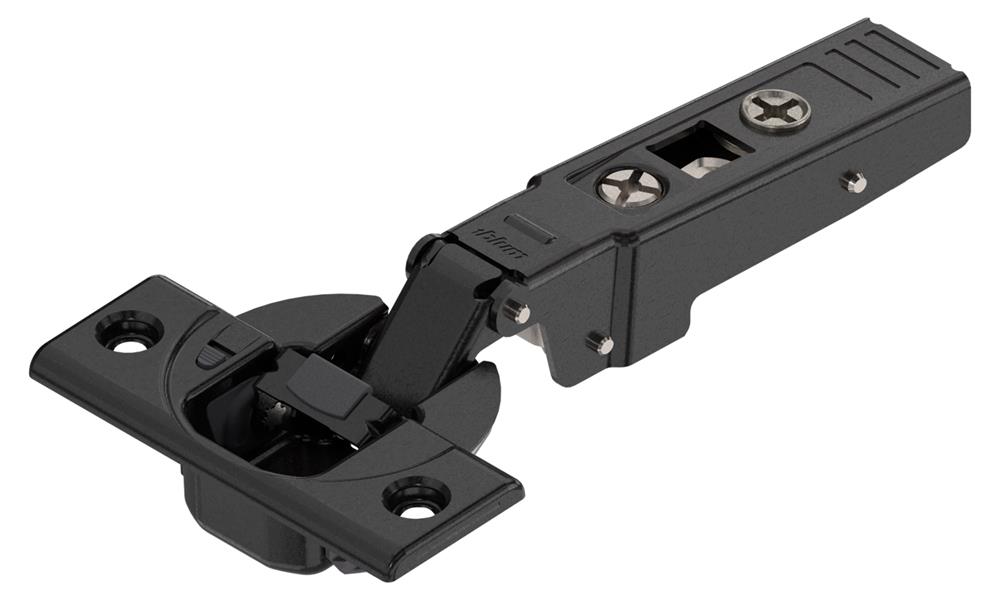

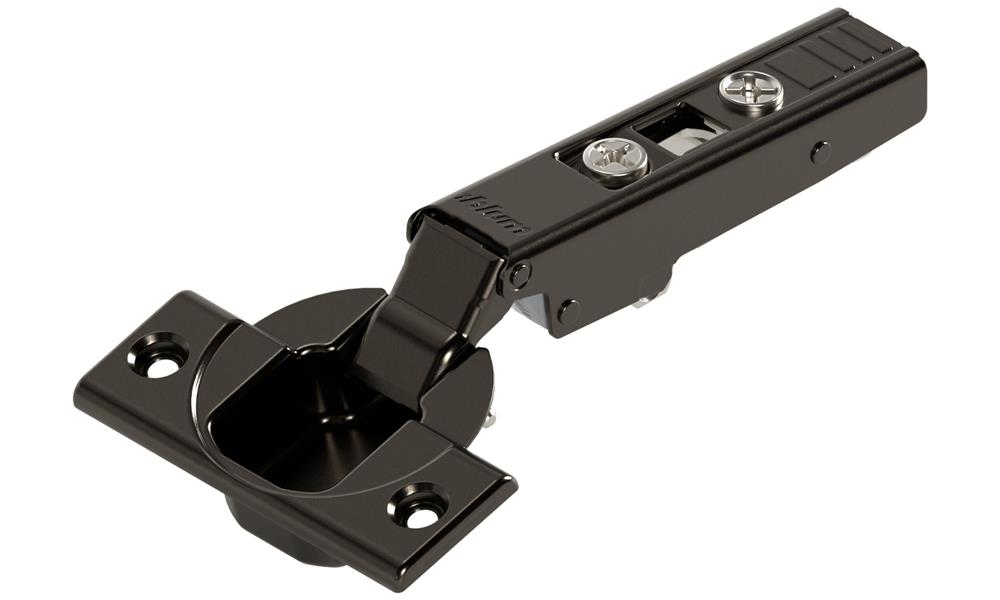

Blum Onyx Black Clip Top Hinges With Blumotion

Screw on, Full overlay
CodeOpeningBossOverlayBox Qty
71B3550.ONS
58581

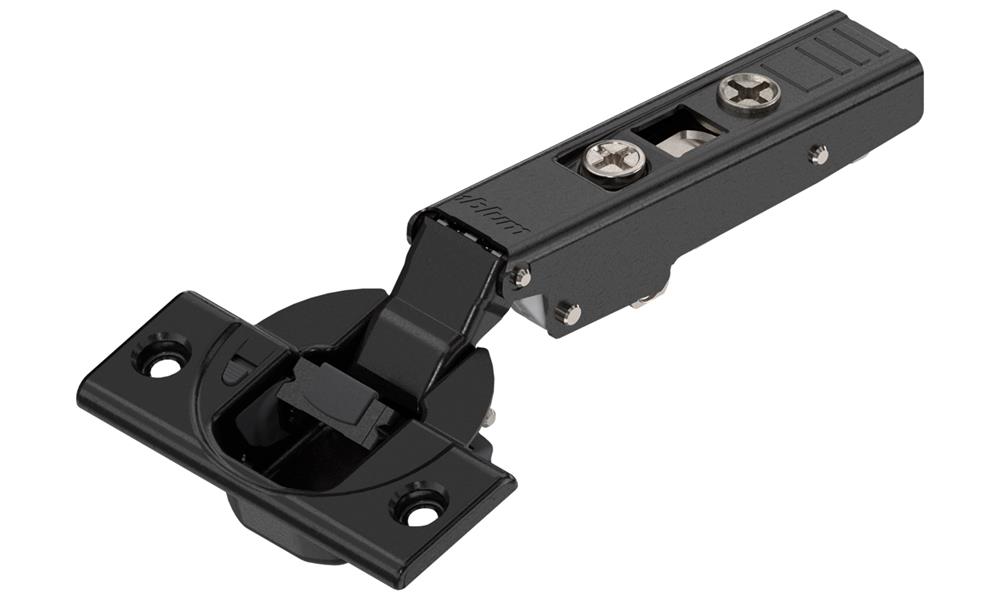

Blum 110° clip top hinge with built in blumotion. Onyx Black
110Screw onFull250£POA  ex vat
71B3580.ONS
49706

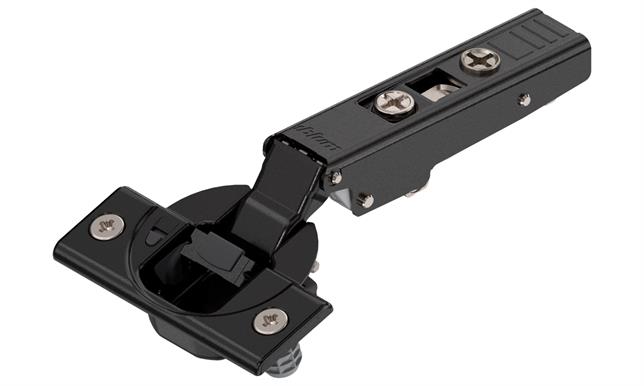

Blum 110° clip top hinge knock-in with built in blumotion. Onyx Black.
110Knock-inFull250£POA  ex vat
71B3590.ONS
21618
Blum 110 degree clip top hinge with built in blumotion inserta. Onyx Black.
110InsertaFull250£POA  ex vat
71B3650.ONS
62959
Blum 110° clip top hinge with built in blumotion half cranked. Onyx Black.
110Screw onHalf250£POA  ex vat
71B3750.ONS
85219
Blum 110° clip top hinge with built in blumotion fully cranked. Onyx Black
110Screw onInset250£POA  ex vat

Blum Onyx Black 95° Clip Top Hinge, Built-In Blumotion for Profile/Thick Doors

Screw on, Full Overlay

For use with profile / thick doors.

CodeOpeningBossOverlayBox Qty
71B9550.ONYXBLACK
62611

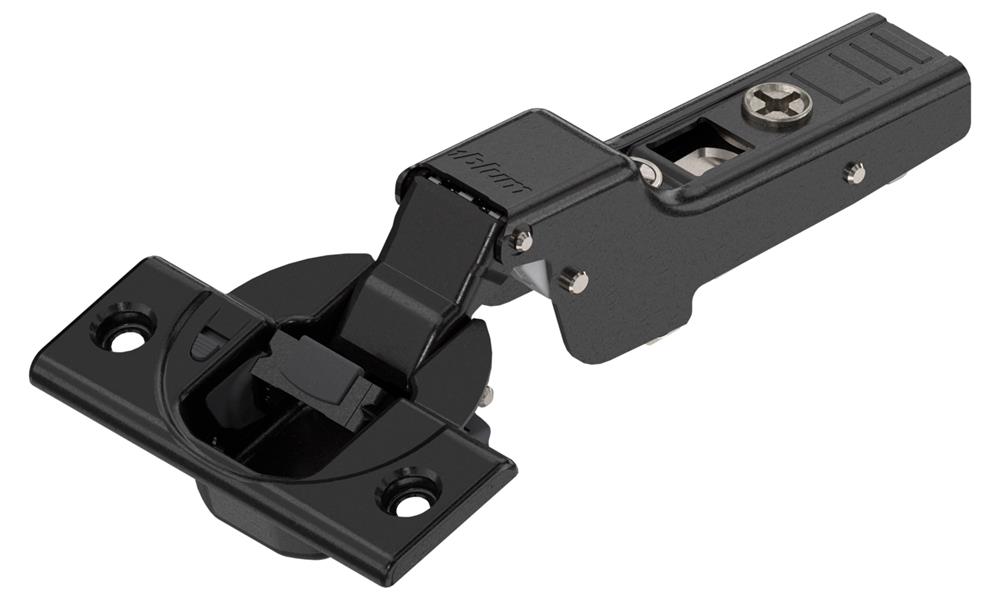

Blum 95 degree clip top Blumotion hinge. Overlay Screw on. Onyx Black
95Screw onFull250£POA  ex vat

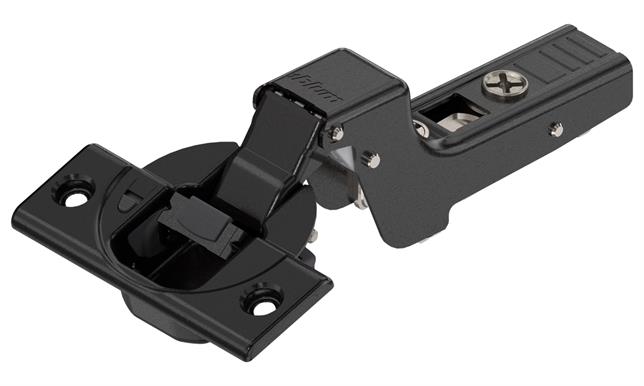

71B9750.ONS
33161
Blum 95° clip top Blumotion Thick Profile door hinge - Onyx Black
95Screw onInset250£POA  ex vat

Blum Onyx Black 110° Clip Top Hinge, Built-In Blumotion for Thin Doors

For use with thin doors.

CodeOpeningBossOverlayBox Qty
71B453T.ONS
86213

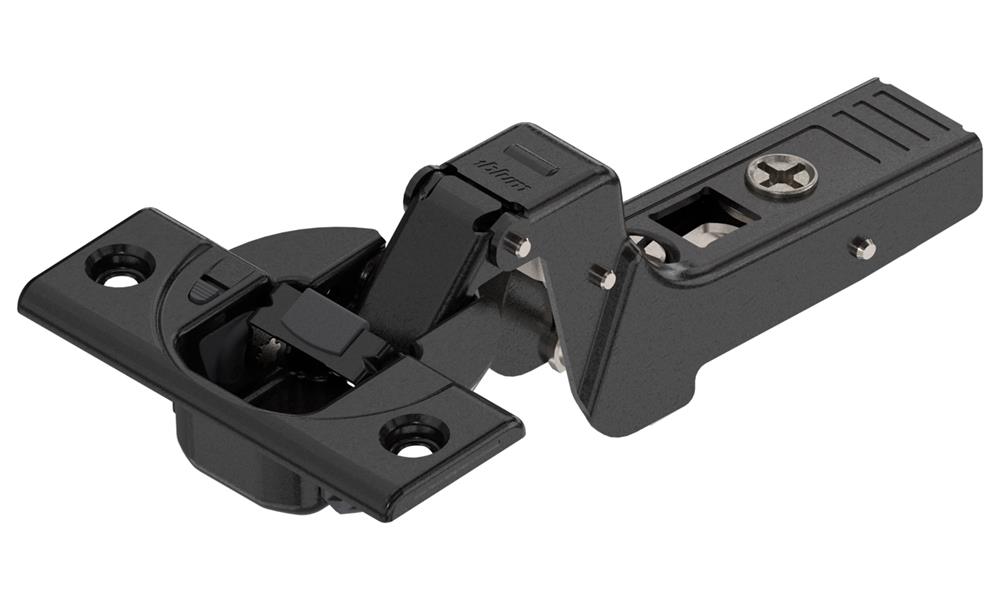

Blum 110° Clip Top Blumotion Hinge for Thin Doors. Expando T Onyx Black.
110EXPANDO-TAll250£POA  ex vat

Blum Onyx Black 95° Clip Top Hinge with Built in Blumotion

Blind corner inset hinge.

CodeOpeningBossOverlayBox Qty
79B9550.ONS
10584

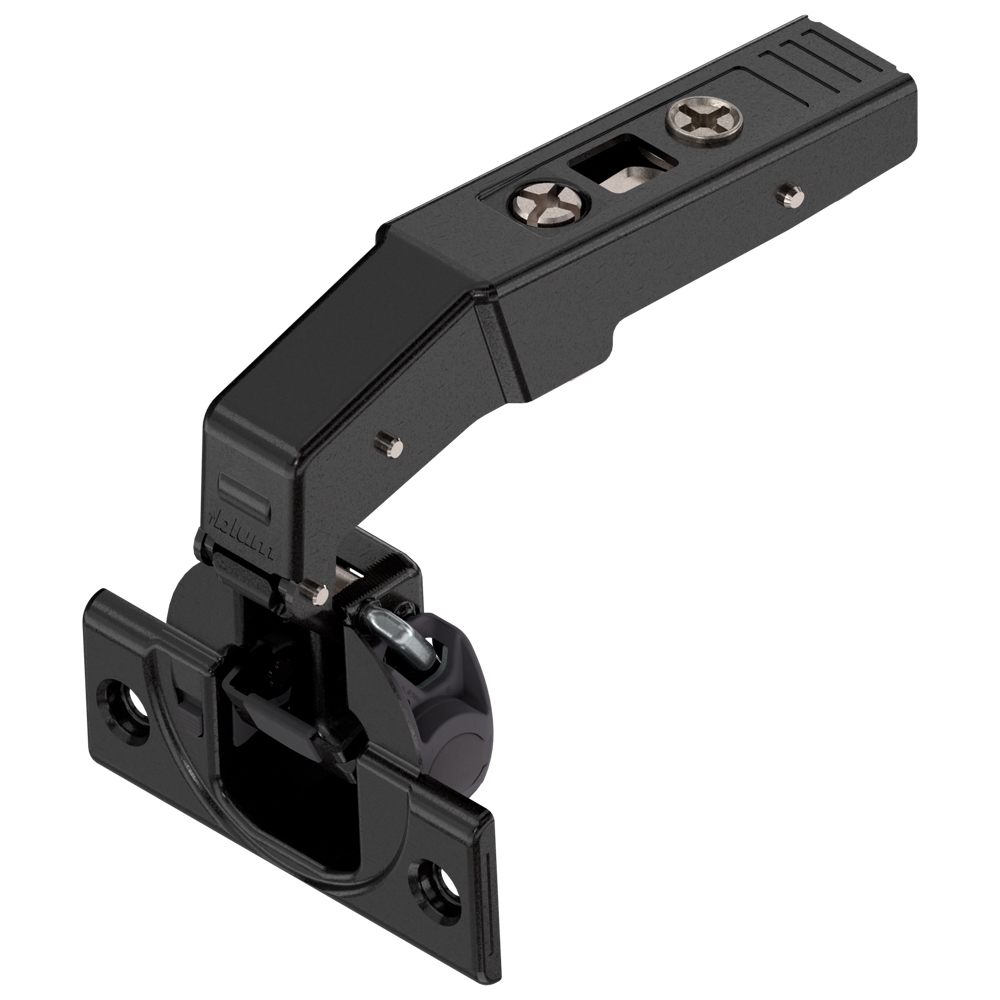

Blum 95 degree Blind Corner clip top hinge with built in blumotion (Onyx Black)
95Screw onInset50£POA  ex vat

Blum Onyx Black 155° Zero Protrusion Clip Top Hinge with Built-In Blumotion

CodeOpeningBossOverlayBox Qty
71B7550.ONS
75585

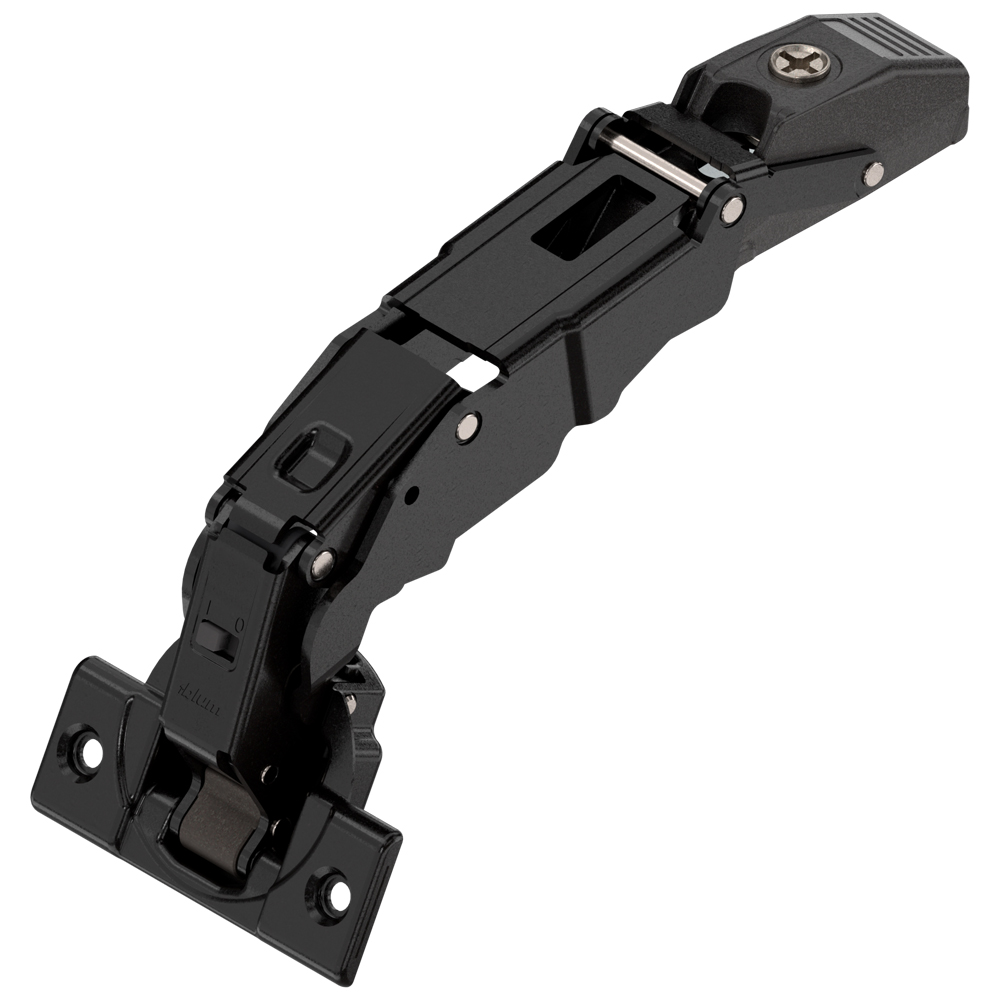

155° Blum CLIP top BLUMOTION Wide angle hinge for zero protrusion. Onyx Black.
155Screw onFull125£POA  ex vat

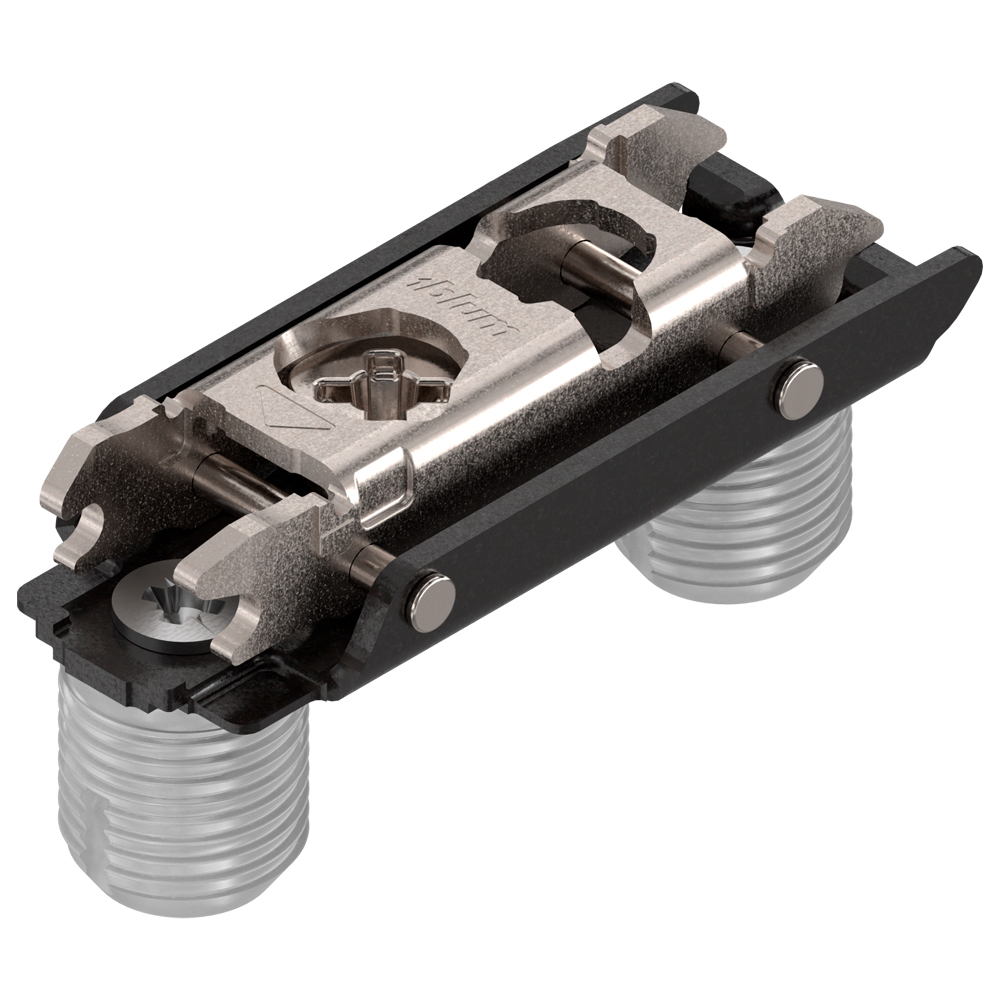

Blum Onyx Black 0mm Cruciform Cam Mounting Plate with Split Dowels and Screws

CodeHeightType
174H7100E.ONS
29925

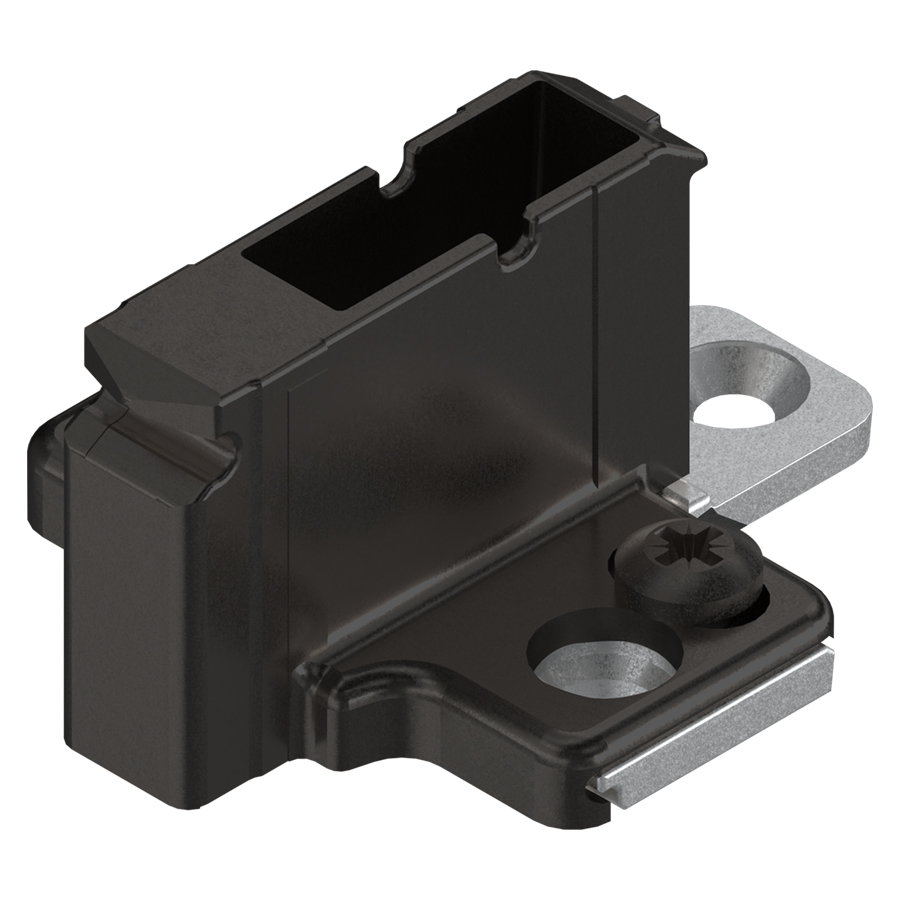

Blum 0mm cruciform cam mounting plate with split dowels and screws. Onyx Black.
0mmCruciform height adjustable£POA  ex vat

Blum Onyx Black 0mm Steel Horizontal Cam Mounting Plate

CodeHeightTypeBox Qty
177H3100.ONS
13991
Blum 0mm Steel Horizontal Cam Mounting Plate. Onyx Black
0mmHorizontal Knock-In500£POA  ex vat

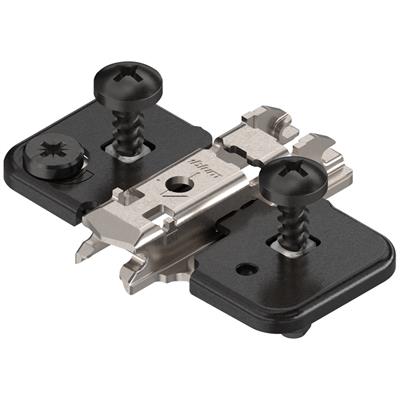

Blum Onyx 18mm Mounting Plate

CodeHeightTypeBox Qty
175H9190.22ONYX
38586
Blum cruciform clip top mounting plate spacing 18mm height 26.5mm Onyx
18mmCruciform250£POA  ex vat

Blum Onyx Black Aventos HK-XS Mounting Plate

CodeHeightTypeBox Qty
175H3100.ONYXBLACK
97410
Blum 0mm horizontal cam mounting plate. Onyx Black
0mmHorizontal Screw-On500£POA  ex vat

Blum Onyx Black 110 Degree Clip Top Boss Cover Cap

CodeType
70T3504.ONS
30103

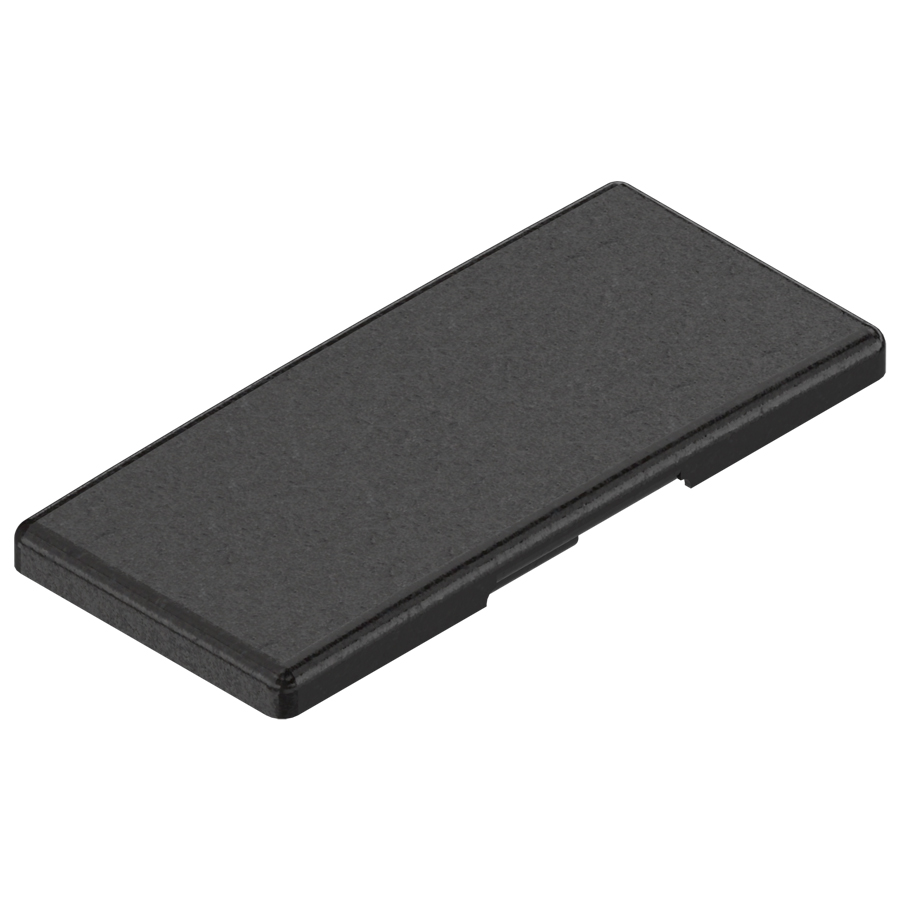

Blum 110 degree soft close hinge boss cover cap in Onyx Black
Onyx Black£POA  ex vat

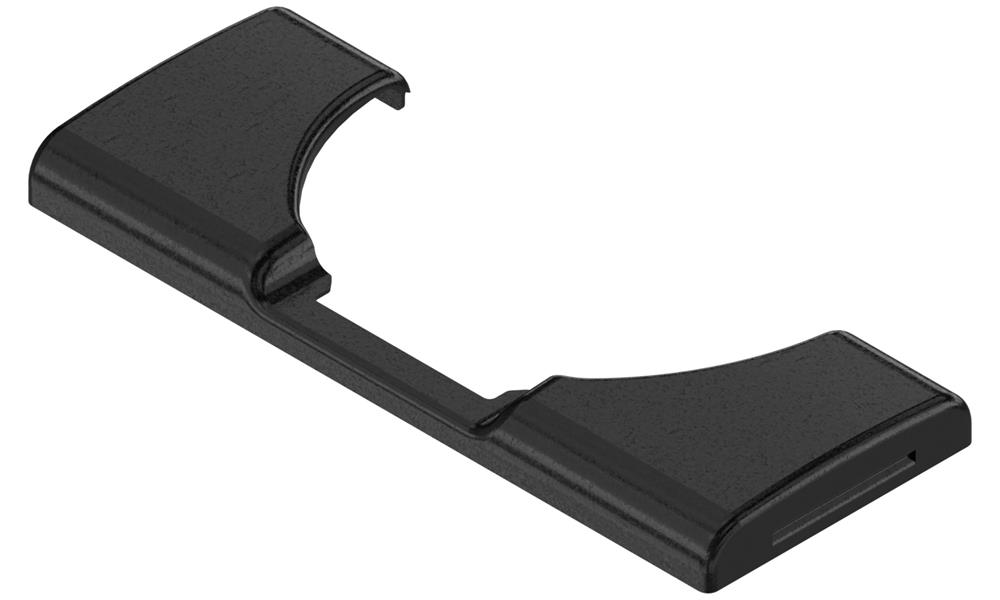

Blum Onyx Black Hinge Cover Caps

70.1503.ONS
CodeType
70.1503.ONS
22798

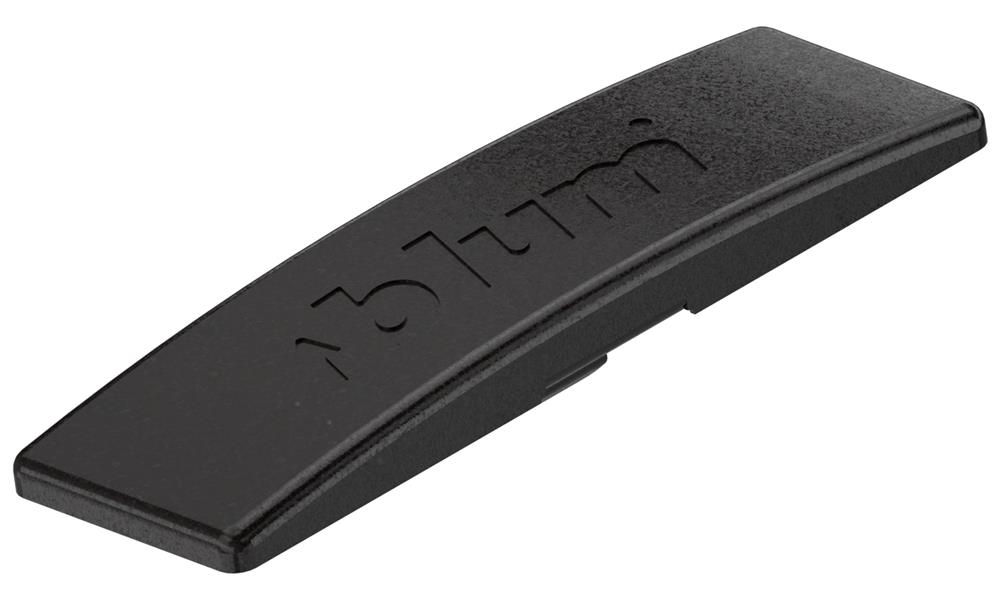

Blum curved 'Blum' cover cap in Onyx Black
Onyx Black£POA  ex vat
70.1663.ONYXBLACK
06888

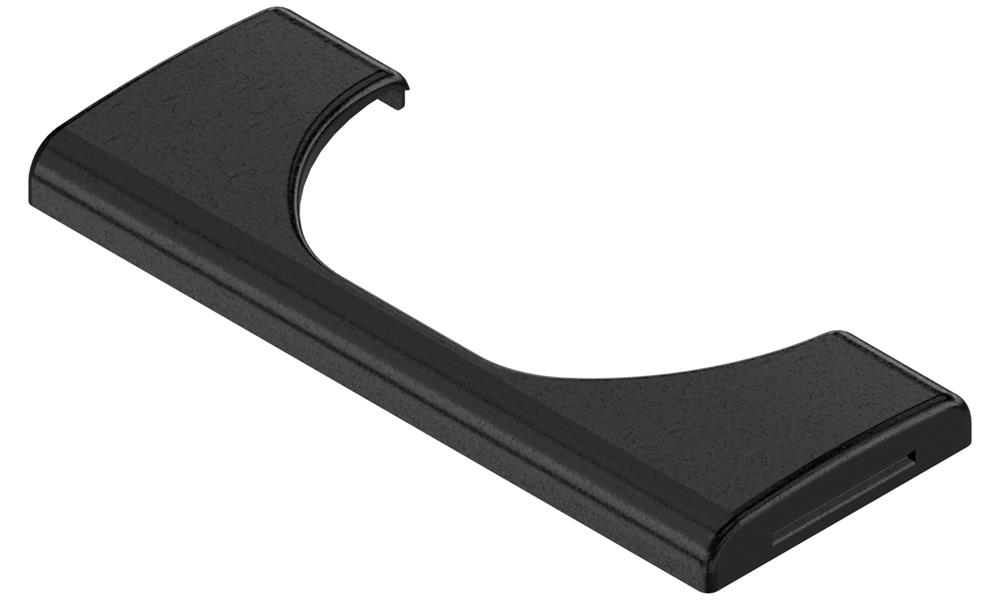

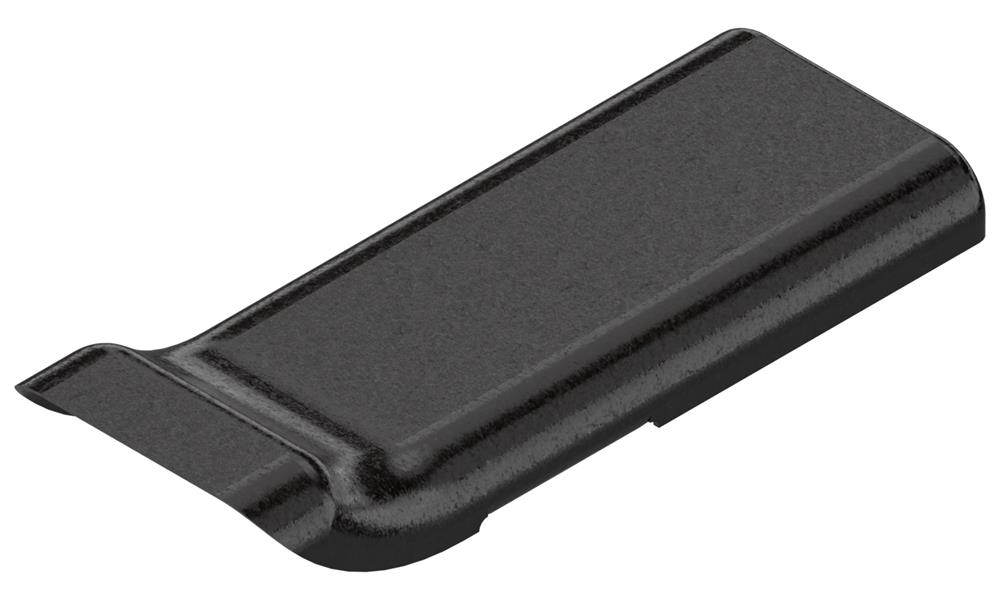

Blum Hinge arm cover cap; Onyx Black
Onyx Black - For cranked arm£POA  ex vat
