Servo-Drive Components

View Blum Resources & Technical Information

Components and assembly devices for the installation of Servo-Drive units.

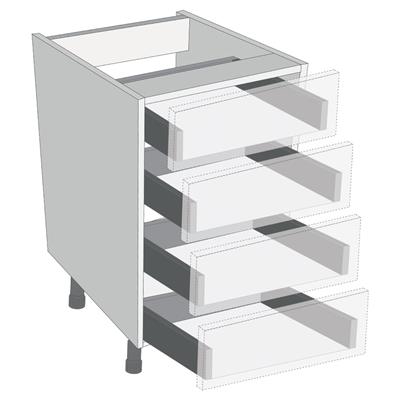

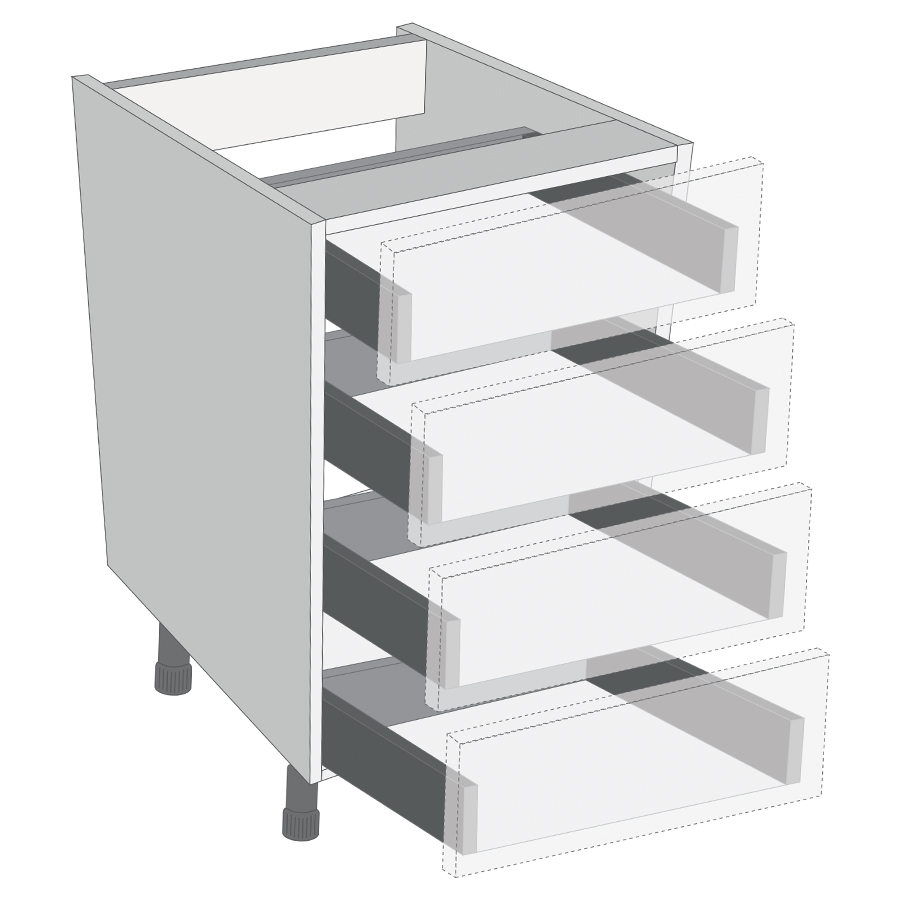

Servo-Drive Kits

To make life easier, instead of having to order individual components we have put together Servo-Drive kits for the most common applications. Simply contact us and quote the relevant code for more information:

  • 1 drawer pack - SERVO1
  • 2 drawer pack - SERVO2
  • 3 drawer pack - SERVO3
  • 4 drawer pack - SERVO4
  • 5 drawer pack - SERVO5
    Stuart Rules

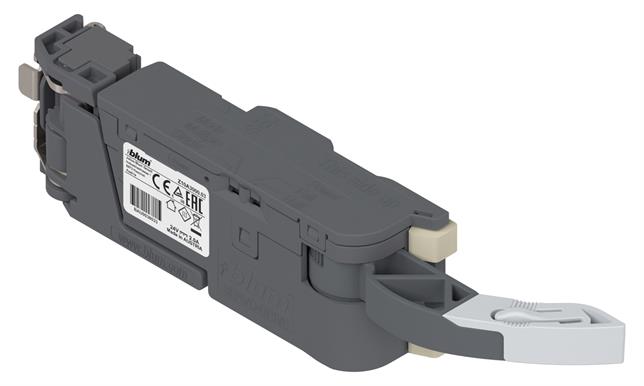

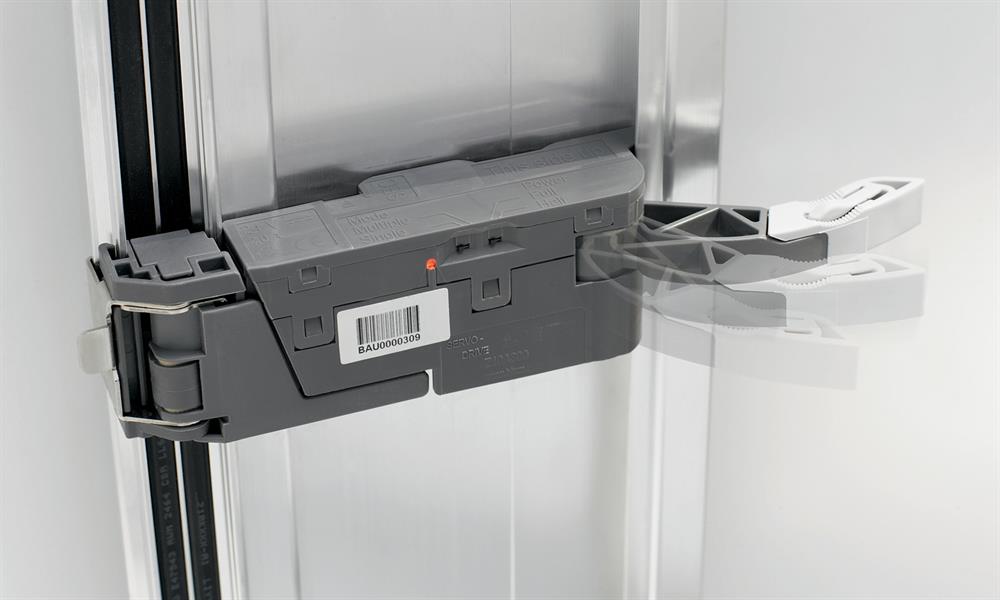

    Servo-Drive Driver Unit

    The drive unit opens the drawer and is used in all Servo-Drive applications.

    Stuart Rules
    Stuart Rules
    CodeDescriptionPrice
    Z10A3000
    60226
    Blum Servo-Drive driver unitBlum Servo-Drive driver unit£POA

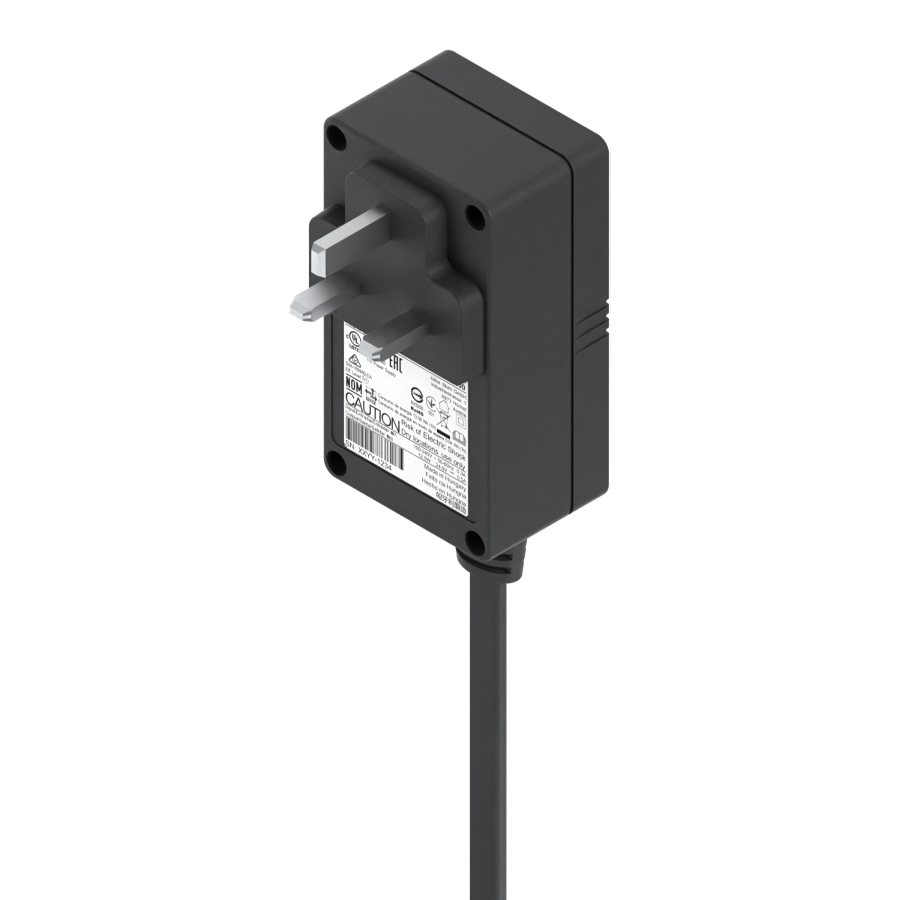

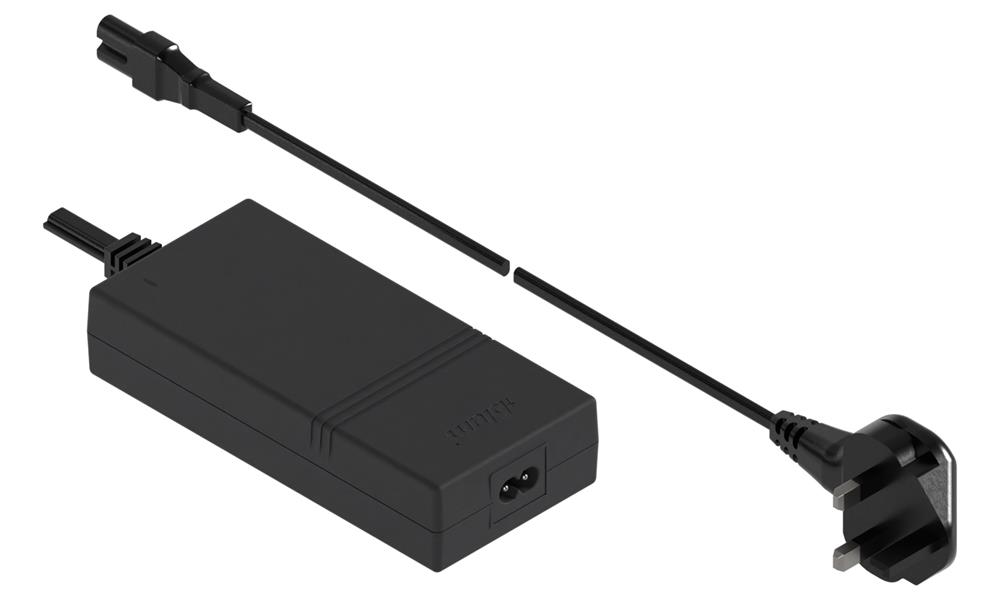

    Servo-Drive Transformers

    Supplied with 2mtr power cord.

    24W
    72W
    CodeTypePrice
    Z10NA40BA
    01258
    Blum Servo-Drive Uno/Flex Plug in Transformer (24w)24W Transformer£POA
    Z10NE04BA
    26752
    Blum SERVO-DRIVE power supply (with power cord) 72W72W Transformer£POA

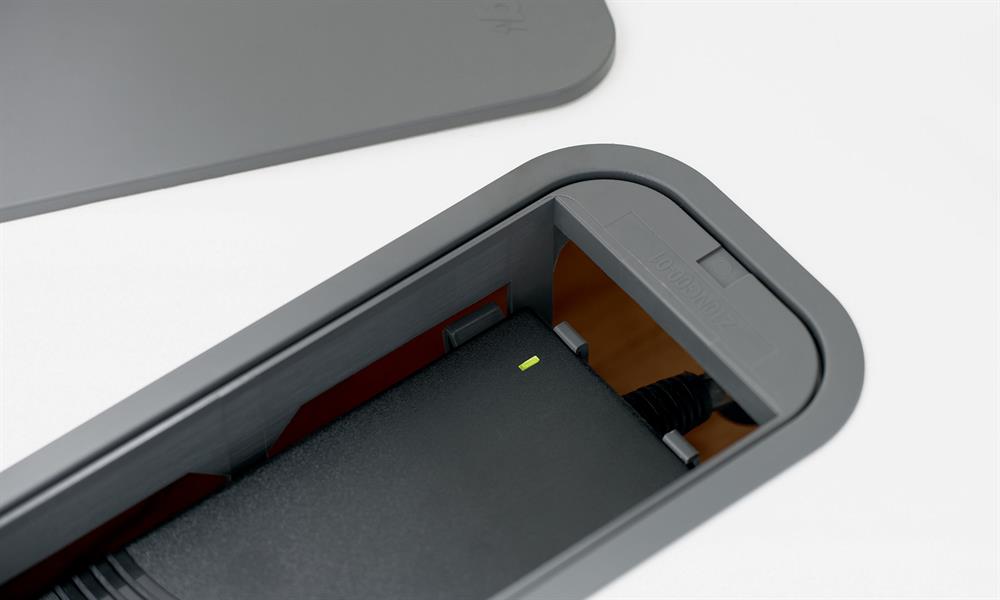

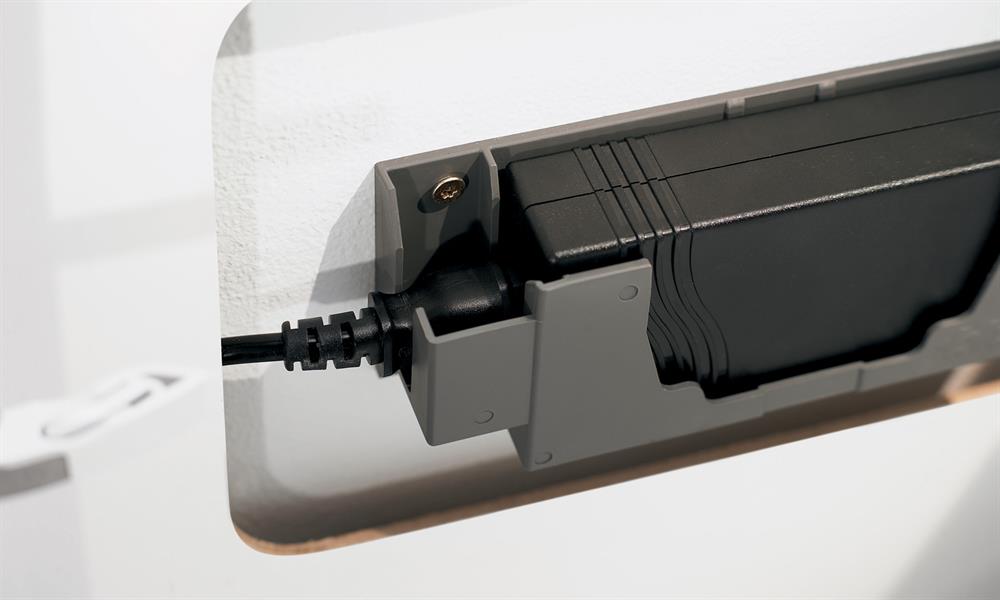

    Servo-Drive Transformer Housings

    For sinking a transformer into a cabinet base, or side mounting a transformer.

    Side Mount
    Side Mount

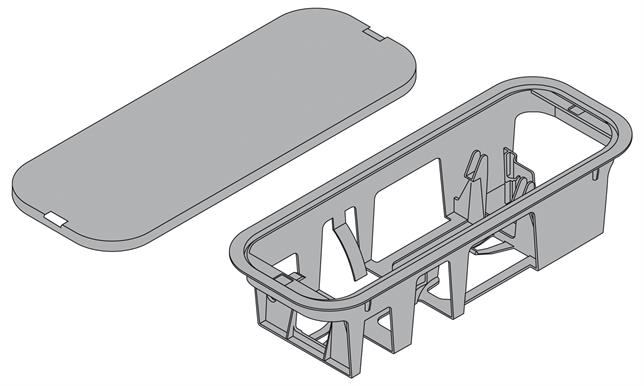

    Base Mount
    Base Mount
    CodeTypePrice
    Z10NG000
    11397
    Blum Servo-Drive transformer housing for sinking into baseBase (Sunk) Mounted Housing£POA
    Z10NG120
    77561
    Blum Servo-Drive side mounted transformer housing Z10NG120Side Mounted Housing£POA

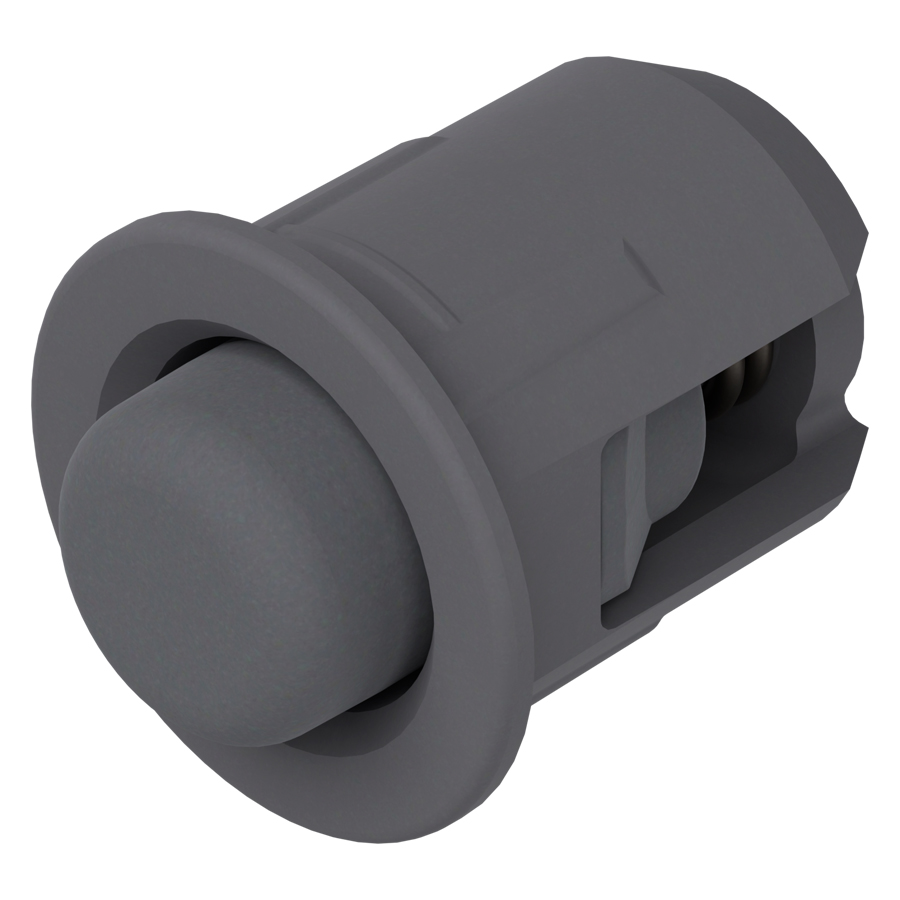

    Servo-Drive Distance Bumper

    The Blum distance bumper creates and maintains the required trigger path of 2mm. Two are required per Servo-Drive drawer.

    Stuart Rules
    CodeDiameterPrice
    993.0830.01
    92044
    Blum Servo-Drive distance bumper 8mm diameter8mm£POA

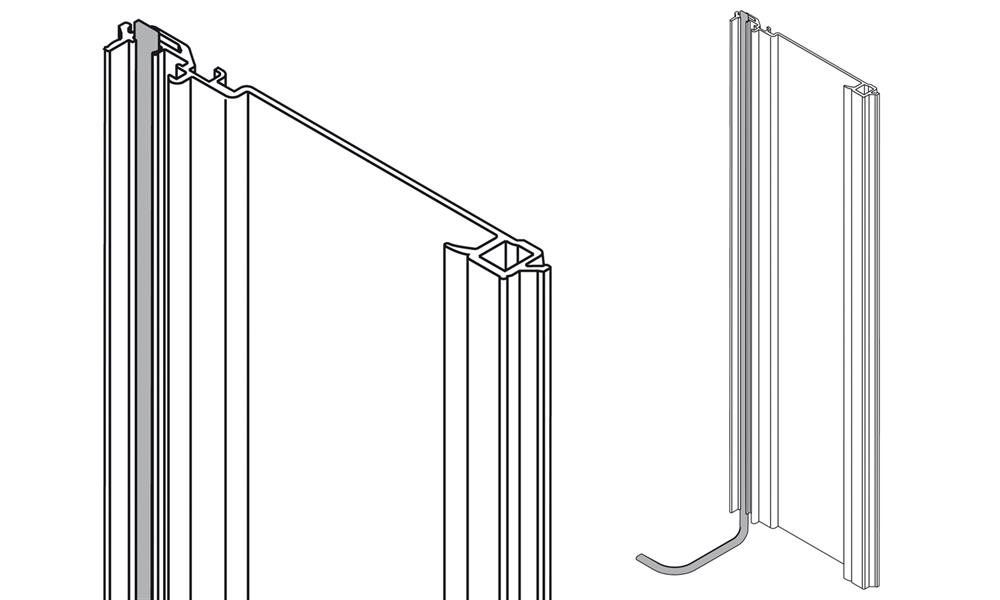

    Servo-Drive Bracket Profile

    Cut to size for a 720mm cabinet, complete with pre-attached cables.

    Stuart Rules
    CodeDescriptionPrice
    Z10T670AA
    53193
    Blum Servo-Drive bracket profile inc cable for 720mm high cabinetBlum Servo-Drive bracket profile inc cable for 720mm high cabinet£POA

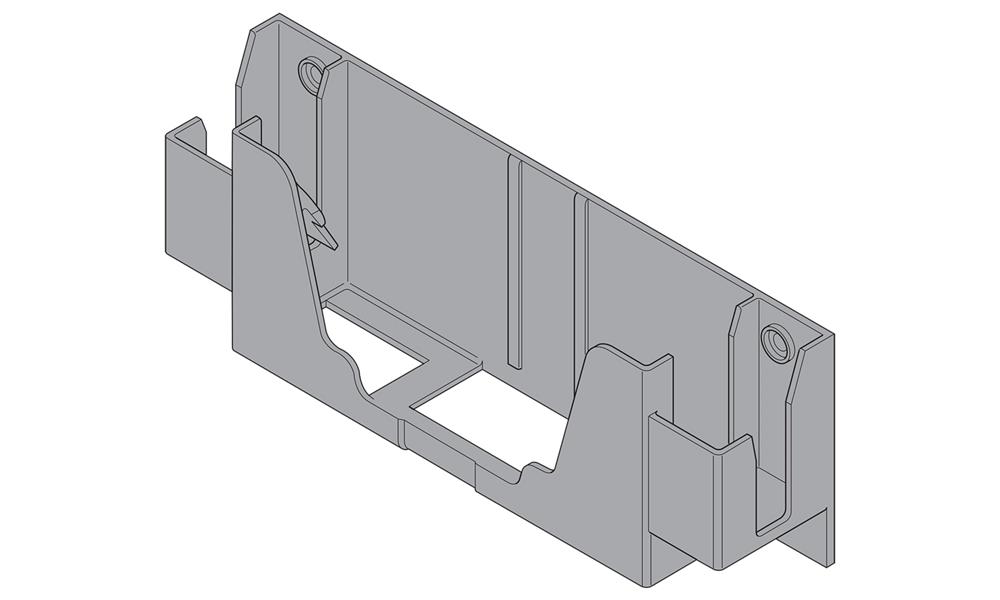

    Servo-Drive Drive Unit Brackets

    Complete with 80cm of cable.

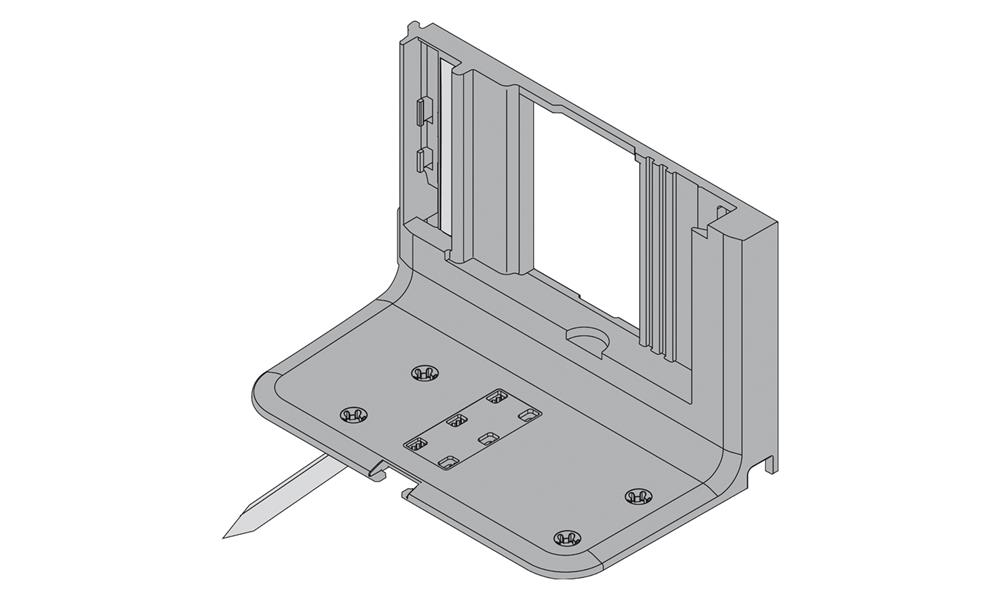

    Single Tier Bracket

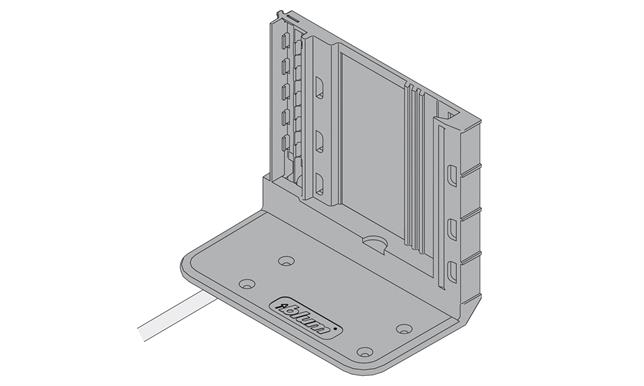

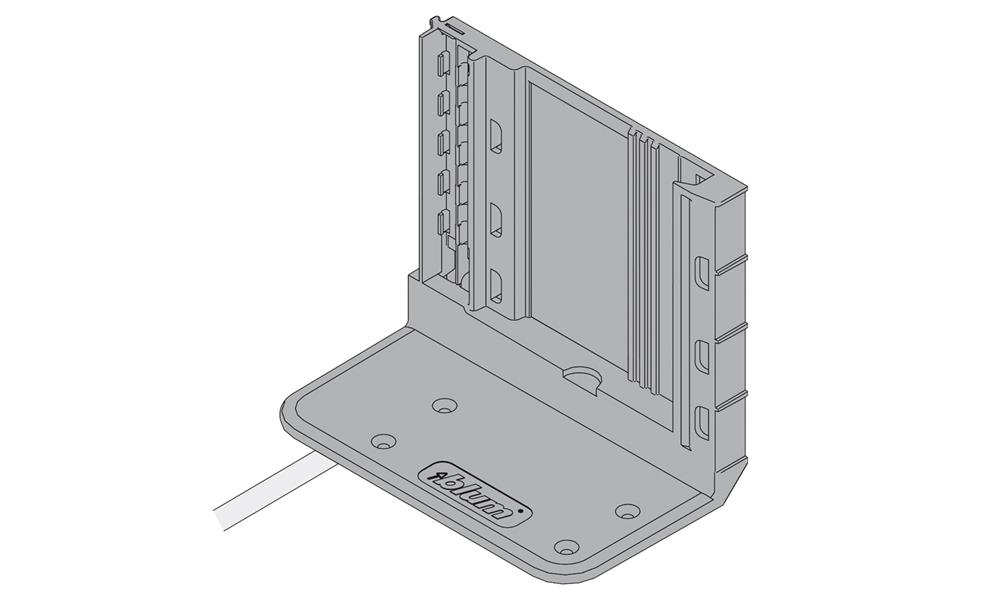

    Double Tier Bracket
    CodeTypePrice
    Z10D0311
    93277
    Blum Servo-Drive single tier drive unit bracket with 80cm of cableSingle Tier£POA
    Z10D7201
    65163
    Blum Servo-Drive 2 tier drive unit bracket with 80cm of cableDouble Tier£POA

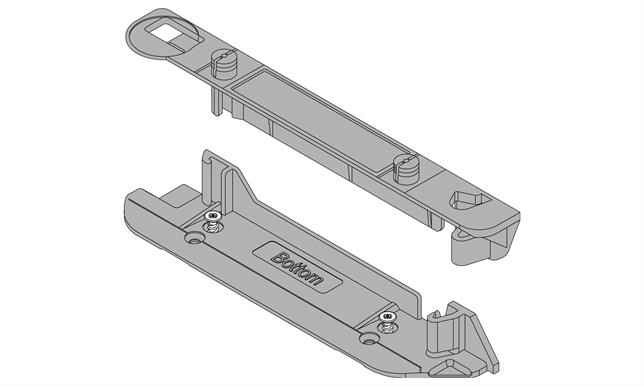

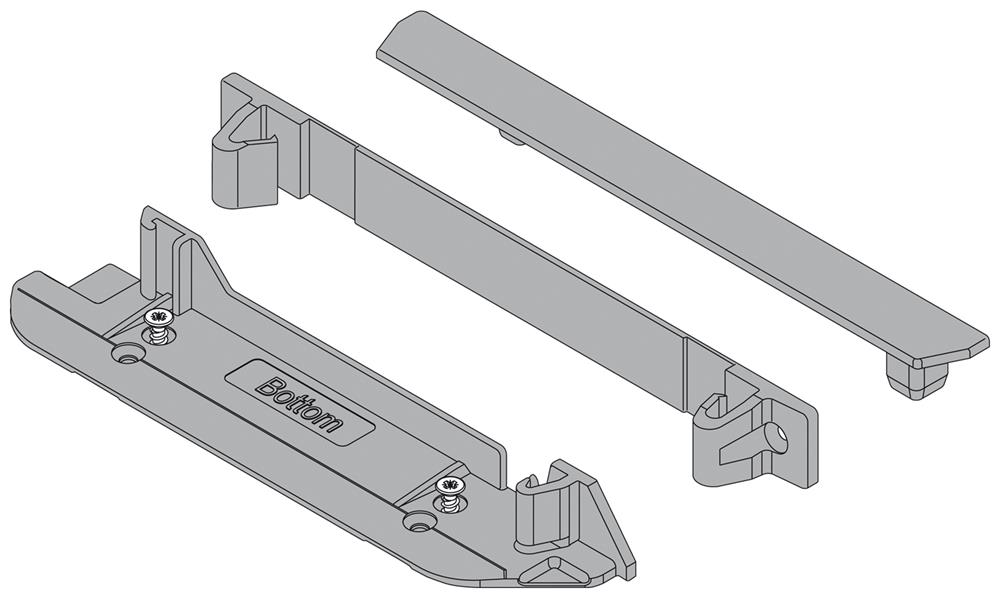

    Servo-Drive Bracket Profile Attachments

    For Vertical Cross Members
    For Horizontal Cross Members
    CodeTypePrice
    Z10D01EA
    81911
    Blum Servo-Drive bracket profile back and bottom connector with top end capVertical Cross Members£POA
    Z10D0E0
    12130
    Blum Servo-Drive bracket profile top and bottom connector packHorizontal Cross Members£POA

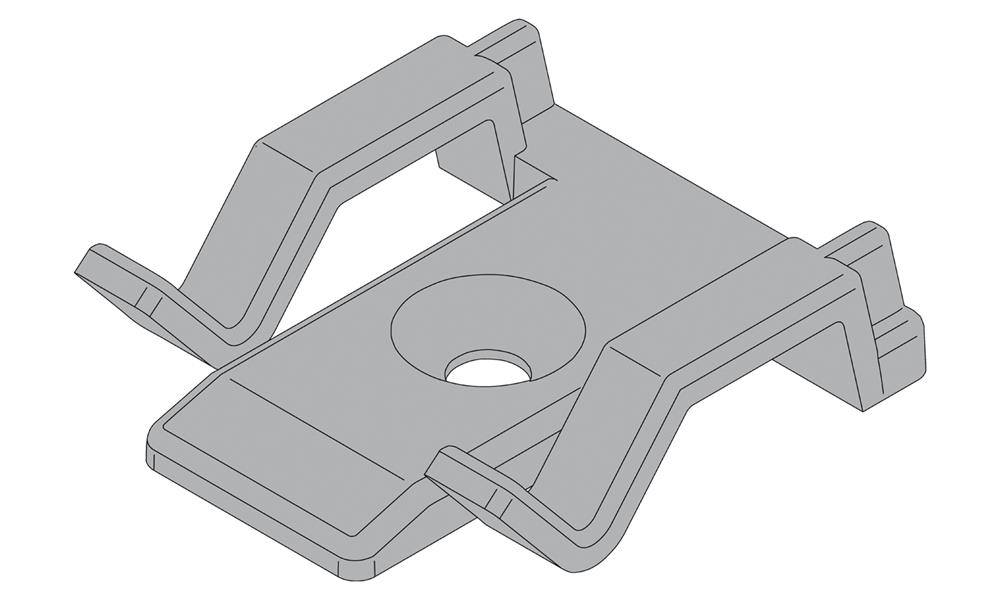

    Servo-Drive Cable Clip

    Self adhesive clip for keeping distribution cable safe and tidy.

    Stuart Rules
    CodeDescriptionPrice
    Z10K0009
    70860
    Blum Servo-Drive self adhesive cable clipBlum Servo-Drive self adhesive cable clip£POA

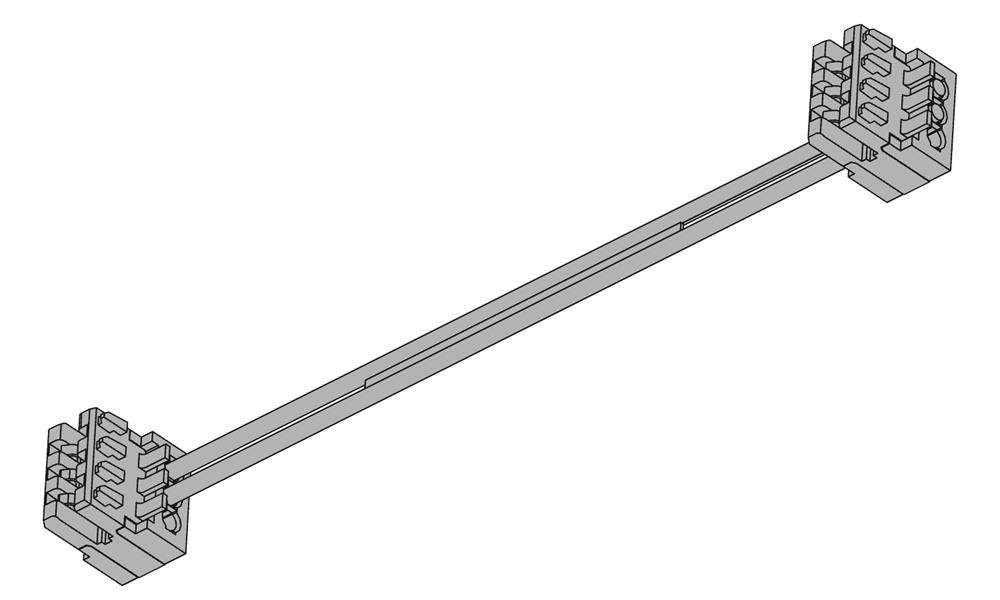

    Servo-Drive Synchronisation Cables

    Two drive units that are supposed to be open simultaneously must be connected using a synchronisation cable.

    Stuart Rules
    CodeLengthPrice
    Z10K008S
    83906
    Blum Servo-Drive 8cm synchronisation cable8cm£POA
    Z10K160S
    10949
    Blum Servo-Drive 160cm synchronisation cable160cm£POA

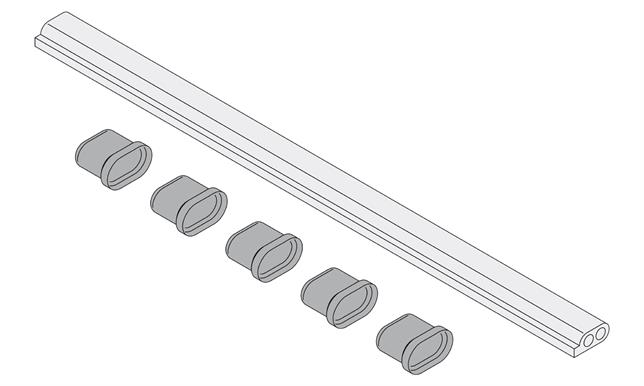

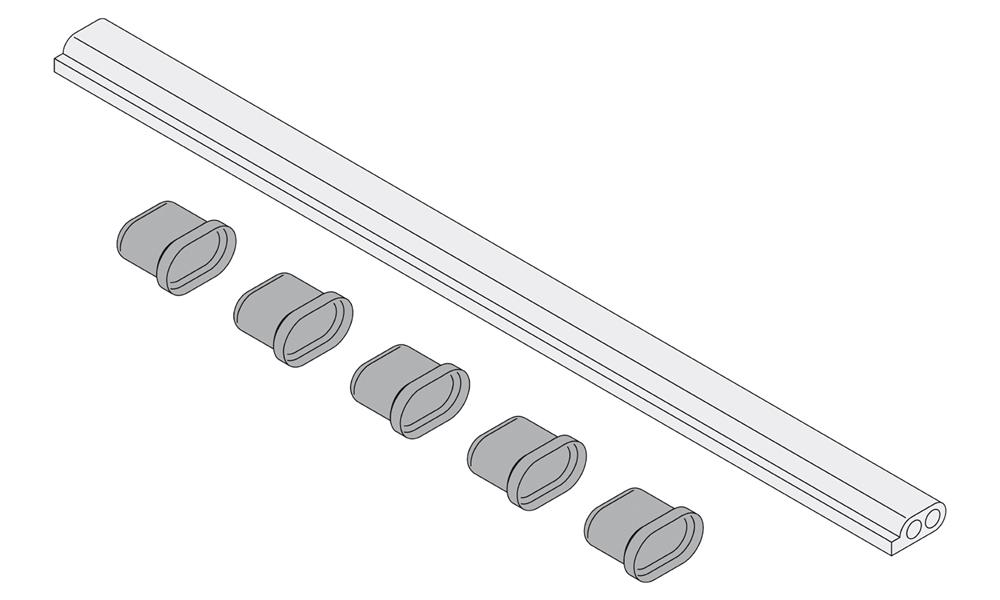

    Servo-Drive Distribution Cable

    Can be used as a distribution, bracket profile or communication cable. Includes five end caps.

    Stuart Rules
    CodeLengthPrice
    Z10K800AE
    66210
    Blum Servo-Drive 8mtr distribution cable including 5 end caps8mtr£POA

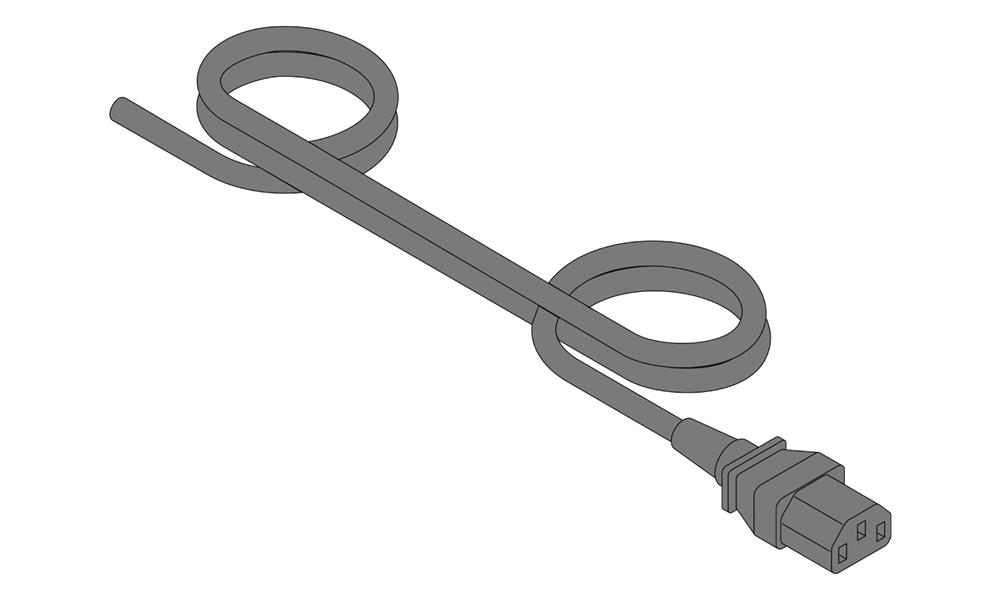

    Servo-Drive Power Cord

    Stuart Rules
    CodeTypePrice
    Z10M200B
    45550
    Blum Servo-Drive power cord 2mtr2mtr Power Cord£POA

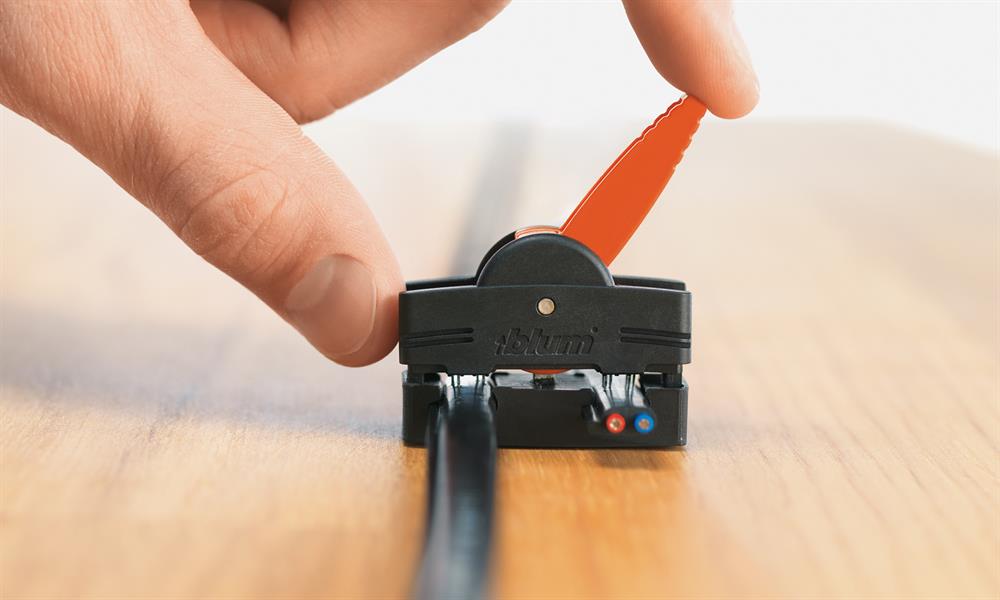

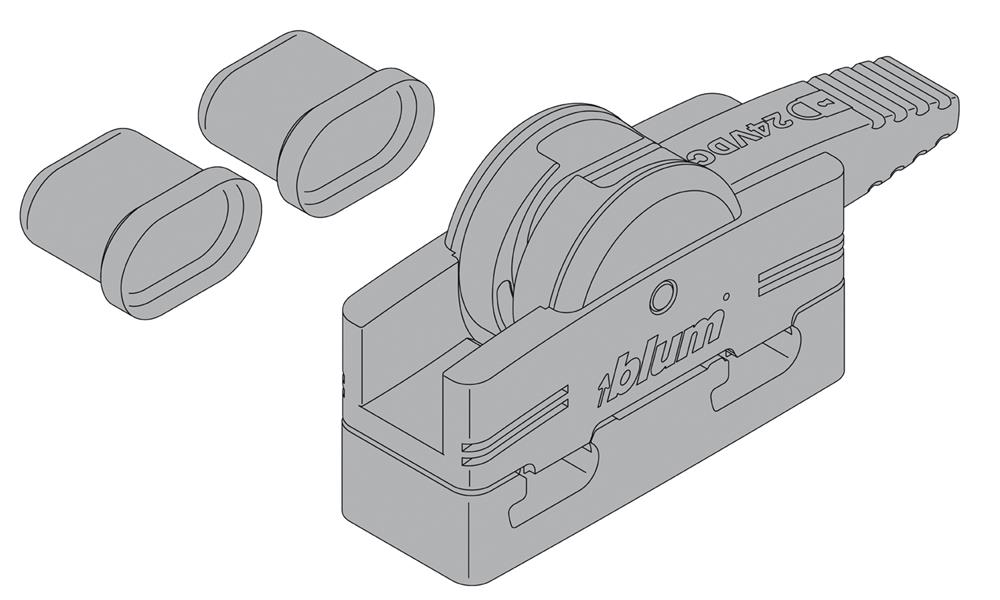

    Servo-Drive Cable Connecting Node

    Includes two end caps.

    Stuart Rules
    Stuart Rules
    CodeDescriptionPrice
    Z10V100E
    43699
    Blum Servo-Drive cable connecting node and 2 end capsBlum Servo-Drive cable connecting node and 2 end caps£POA

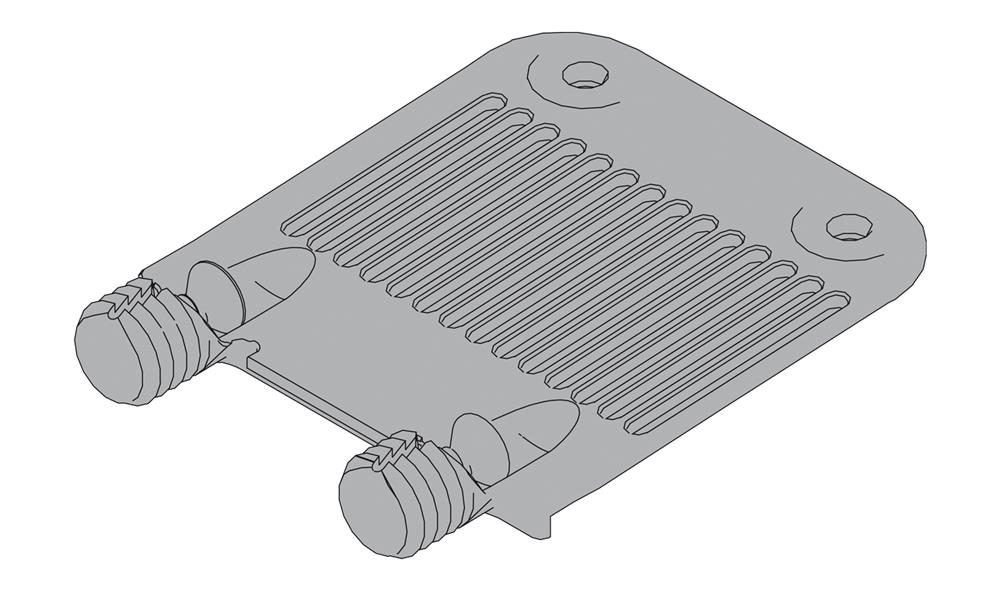

    Servo-Drive Front Stabilising Bracket

    Stuart Rules
    CodeDescriptionPrice
    Z96.10E1
    83927
    Blum Servo-Drive Tandembox front stabilising bracketBlum Servo-Drive Tandembox front stabilising bracket£POA

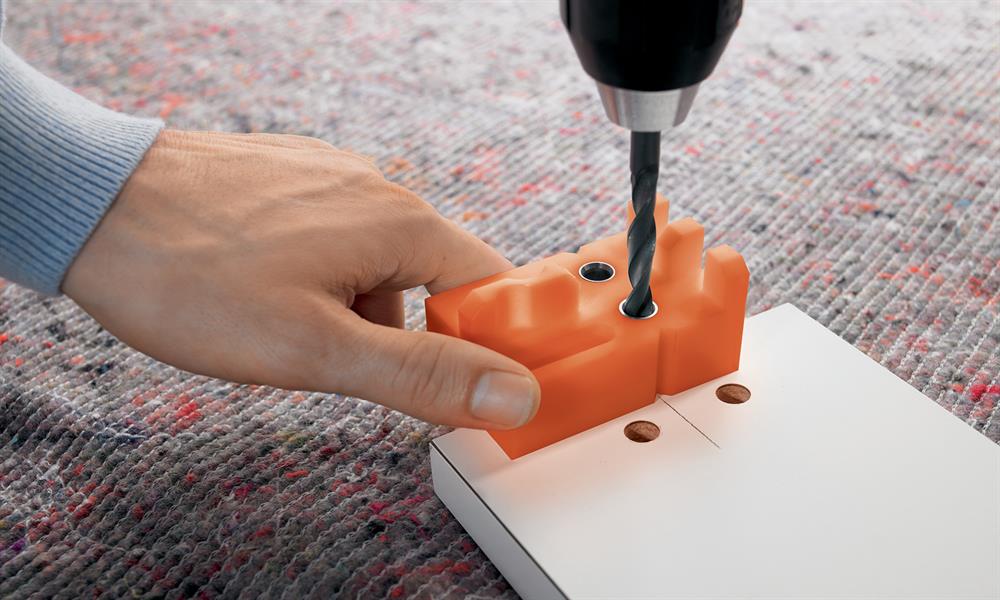

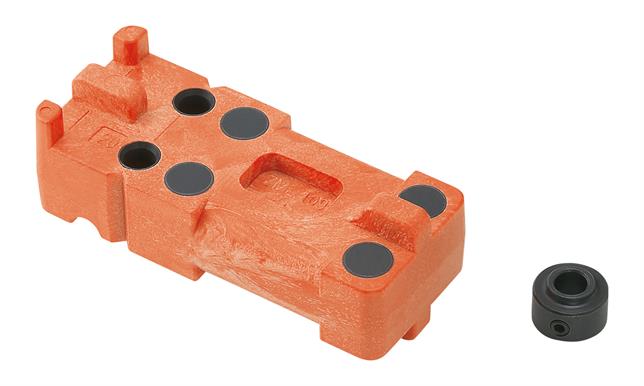

    Servo-Drive Jig for Distance Bumper

    Stuart Rules
    Stuart Rules
    CodeDescriptionPrice
    ZML.1090
    22242
    Blum Servo-Drive jig for distance bumperBlum Servo-Drive jig for distance bumper£POA

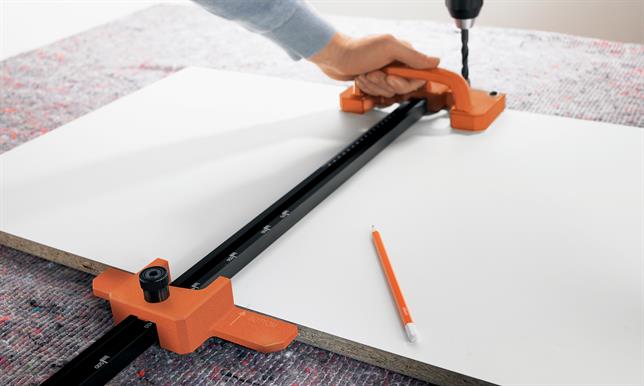

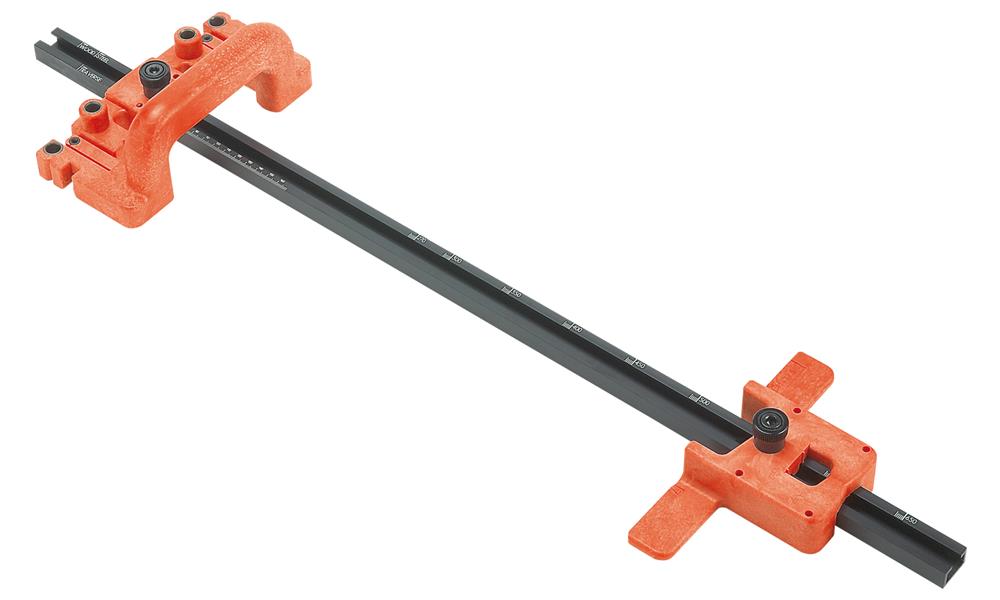

    Servo-Drive Jig for Bracket Profile

    Stuart Rules
    Stuart Rules
    CodeDescriptionPrice
    ZML.1150
    58323
    Blum Servo-Drive jig for bracket profileBlum Servo-Drive jig for bracket profile£POA

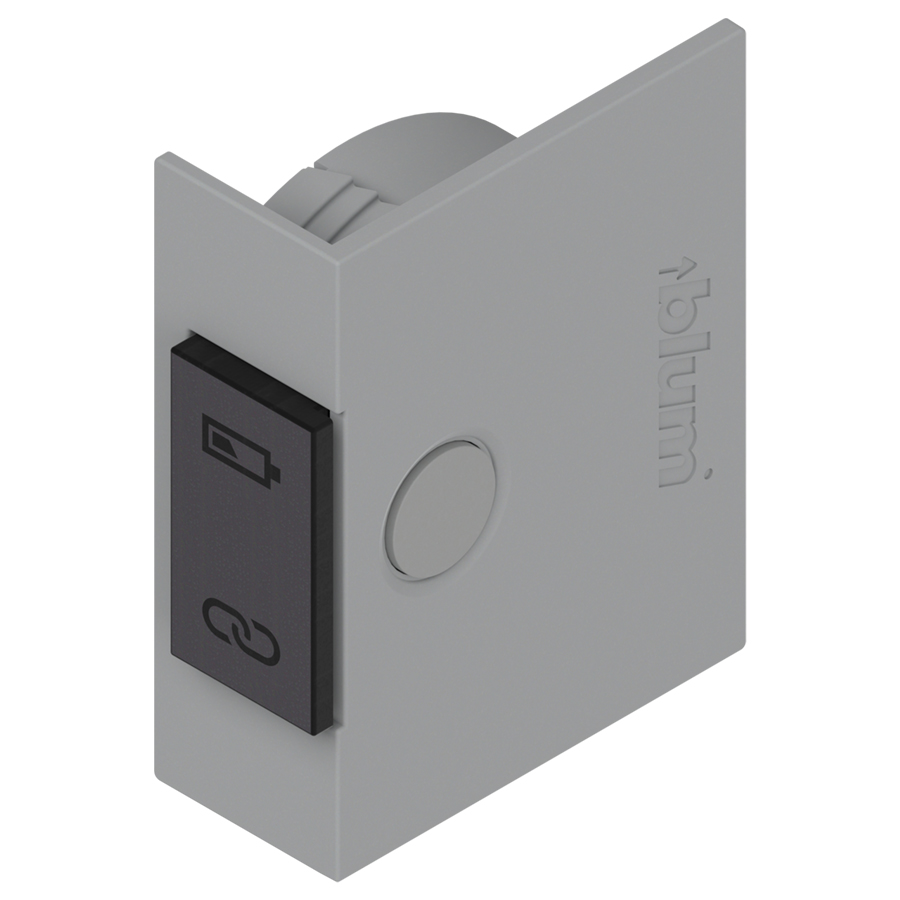

    Servo-Drive Switch for Aventos

    Stuart Rules
    CodeDescriptionPrice
    23P5020
    13034
    Blum Servodrive switch grey for Aventos, Symmetrical, Light GreyBlum Servodrive switch grey for Aventos, Symmetrical, Light Grey£POA
