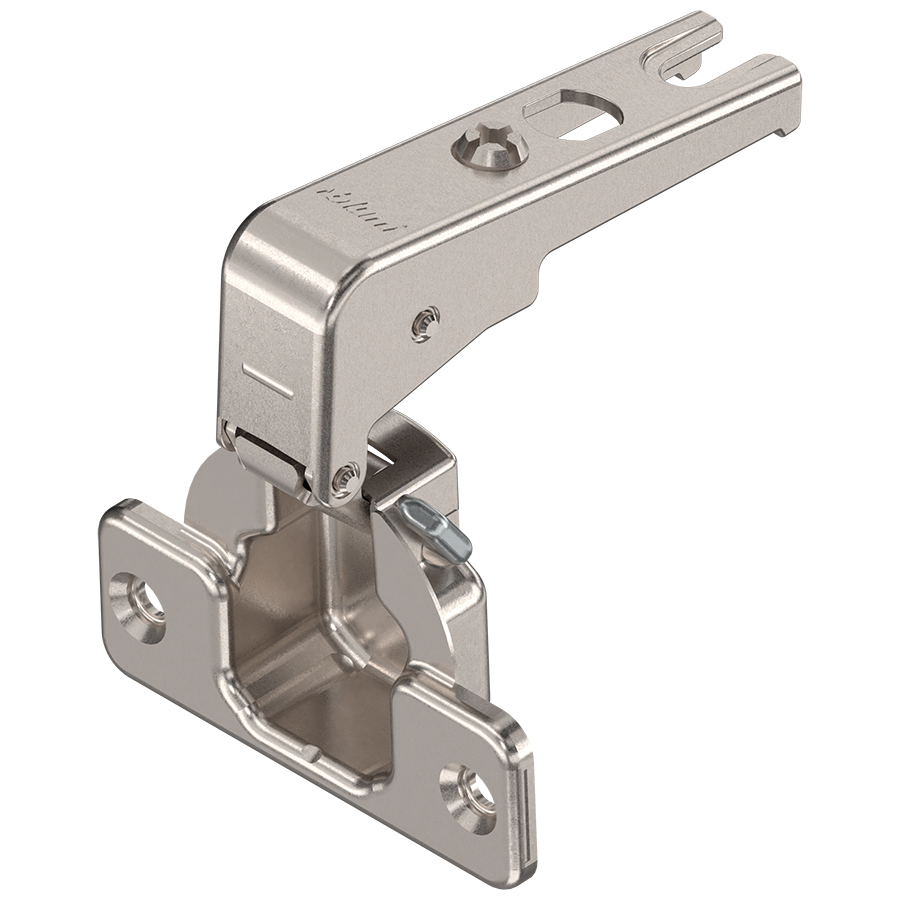

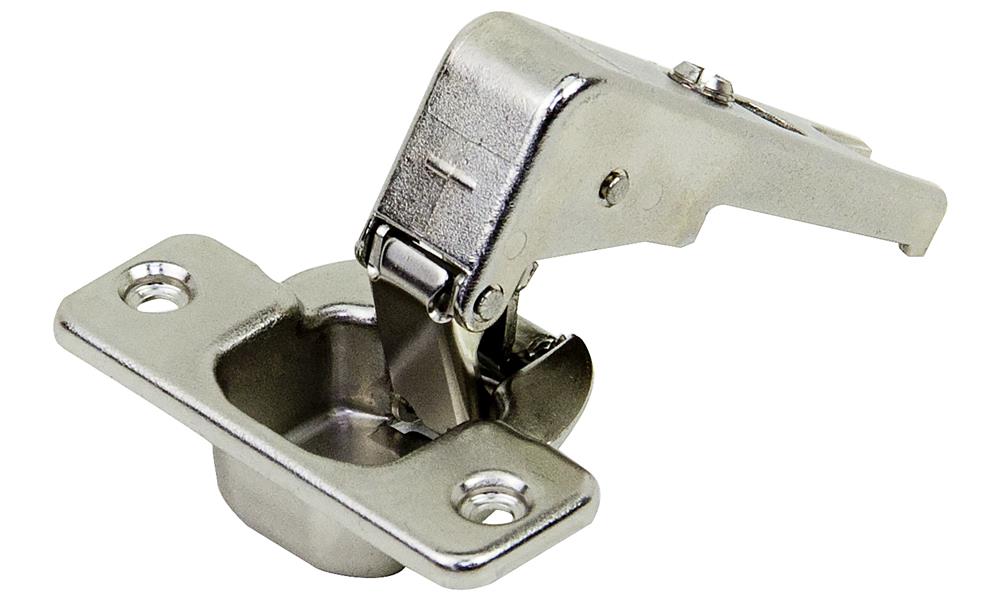

Blum 95 degree modul blind corner hinge

Quick Order Code: 78135 / Product Code: 99M9550

• List Price: £POA exc. VAT
• Selling Unit: EACH
• Please log in for your custom prices, stock info, offers and much more.
• Don't have an account? Click here to learn how to apply for yours.

Rating: 4.5 / 5 - 2 Rating(s)

For blind corner applications.

Opening	95
Boss	Screw on
Box Qty	50

Additional Features / Properties

Cover cap type	90M2503
Type of side adjustment	With screw
Type of depth adjustment	With screw
Item package	1 piece
Maximum drilling distance	7 mm
Minimum drilling distance	3 mm
Fixed dimension / factory setting	-8 mm
Weight	637.3 kg
collision measurement (hinge arm height)	23 mm
Country of origin	AT
Delivery unit	50
Height Outside carton	32.7 cm
Layer quantity	2000
Lenght Outside carton	55.6 cm
Palette height without transport equipment	98 cm
Pallet quantity	6000
Replenishment lead time	11 day
Transport time	2 day
Volume/1000	156.8 dm³
Weight (tare)/1000	6.032 kg
Width Outside carton	19.9 cm
mounting plate system	MODUL
Colour/surface	Nickel plated
Opening angle	95
Closing mechanism	with spring
SAP-Distribution status	20 - On sale
SAP - Program allocation	NS - Non Standard Program
Side adjustment	+/- 2 mm mm
Depth adjustment	+/- 0.8 mm mm
Boss assembly	screw-on
Boss material	Steel boss
boss finish	Nickel plated
Boss adjustment	none
door material	Wood
Gap	0 mm
Weight based on	10000 Piece
application	blind corner hinge
packaging	Commercial packing
Packaging unit 1	50
Packaging unit 2	250
Packaging unit 3	0
Customs tariff number	8302100090

Show More
