Blum 95 degree modul refrigerator hinge - HPP

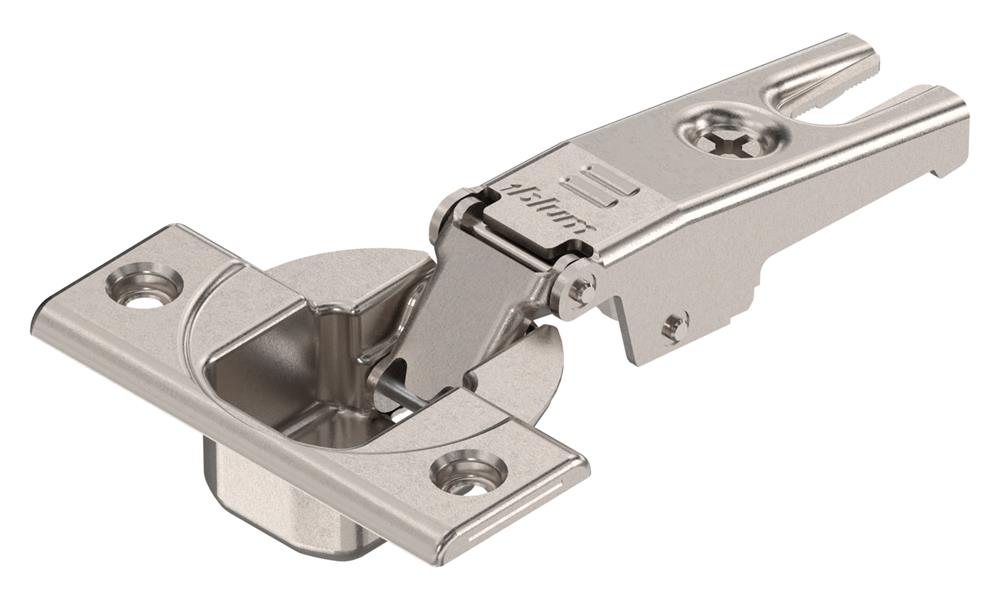

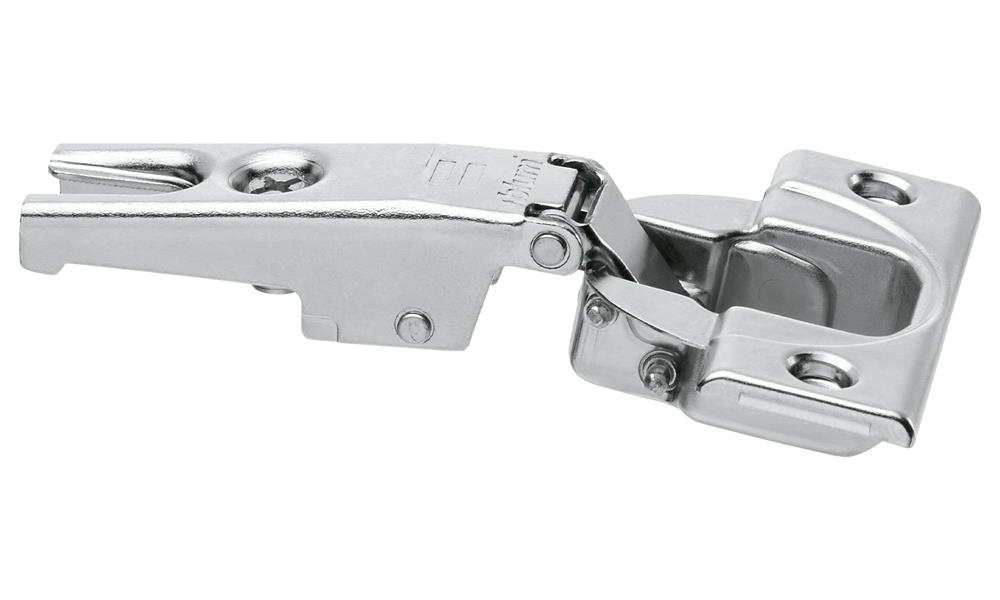

Blum 95 degree modul refrigerator hinge

Quick Order Code: 76553 / Product Code: 91K9550

Product 91k9550 main image
  • List Price: £POA exc. VAT
  • Selling Unit: EACH
  • Please log in for your custom prices, stock info, offers and much more.
  • Don't have an account? Click here to learn how to apply for yours.
Rating: 4.3 / 5 - 8 Rating(s)

BLUM MODUL refrigerator facade door hinge 91K9550.

  • Opening angle: 95°
  • Cranking: Overlay application
  • Boss assembly: screw-on
  • Boss material: Steel boss
  • Closing mechanism: with spring
  • Side adjustment: +/- 2 mm
  • Depth adjustment: +/- 2 mm, With screw
Opening95
BossScrew-On

Additional Features / Properties

Type of side adjustmentWith screw
Type of depth adjustmentWith screw
Item package1 piece
Maximum drilling distance7 mm
Minimum drilling distance3 mm
Fixed dimension / factory setting11 mm
Weight480.18 kg
collision measurement (hinge arm height)19 mm
CrankingOverlay application
Country of originAT
Delivery unit250
Height Outside carton26.4 cm
Layer quantity2000
Lenght Outside carton37.5 cm
Palette height without transport equipment106 cm
Pallet quantity8000
Replenishment lead time2 day
Transport time2 day
Volume/1000127.2 dm³
Weight (tare)/10002.079 kg
Width Outside carton29.9 cm
mounting plate systemMODUL
Colour/surfaceNickel plated
Opening angle95
Closing mechanismwith spring
SAP-Distribution status20 - On sale
SAP - Program allocationSP - Stock Program
Side adjustment+/- 2 mm mm
Depth adjustment+/- 2 mm mm
Boss assemblyscrew-on
Boss materialSteel boss
boss finishNickel plated
Boss adjustmentnone
door materialWood
Gap1.5 mm
Weight based on10000 Piece
applicationrefrigerator facade door hinge
packagingindustrial packing
Packaging unit 1250
Packaging unit 20
Packaging unit 30
Customs tariff number8302100090
