Tandem Runners with TIP-ON 15-16mm Panel Thickness

Runners for wooden drawers with a panel thickness of 15–16 mm
Concealed Tandem single extension with integrated TIP-ON for handle-less drawer opening
Low-friction cylindrical rollers ensure a feather-light glide
Tool-free height adjustment via a locking device (T51.1700.04 L+R required)
Tool-free integrated front tilt adjustment
Built-in width and depth tolerance compensation
T57.1140S TIP-ON synchronisation linkage recommended with these runners

Code	Runner length	Weight rating
560H2700T 66814Blum Tandem Plus TIP-ON full extension runner 30kg 270mm	270mm	30kg	£POA ex vat
560H3500T 96525Blum Tandem Plus TIP-ON full extension runner 30kg 350mm	350mm	30kg	£POA ex vat
560H4000T 17949Blum Tandem Plus TIP-ON full extension runner 30kg 400mm	400mm	30kg	£POA ex vat
560H4500T 70511Blum Tandem Plus TIP-ON full extension runner 30kg 450mm	450mm	30kg	£POA ex vat

Tandem Runner Front Fixing Brackets

Locking device for use with 550F, 560F, 560H and 566H Tandem runners.

	Code	Hand
	T51.1700.04L 16106Blum Tandem runner front fixing bracket LH	Left	£POA ex vat
	T51.1700.04R 52784Blum Tandem runner front fixing bracket RH	Right	£POA ex vat

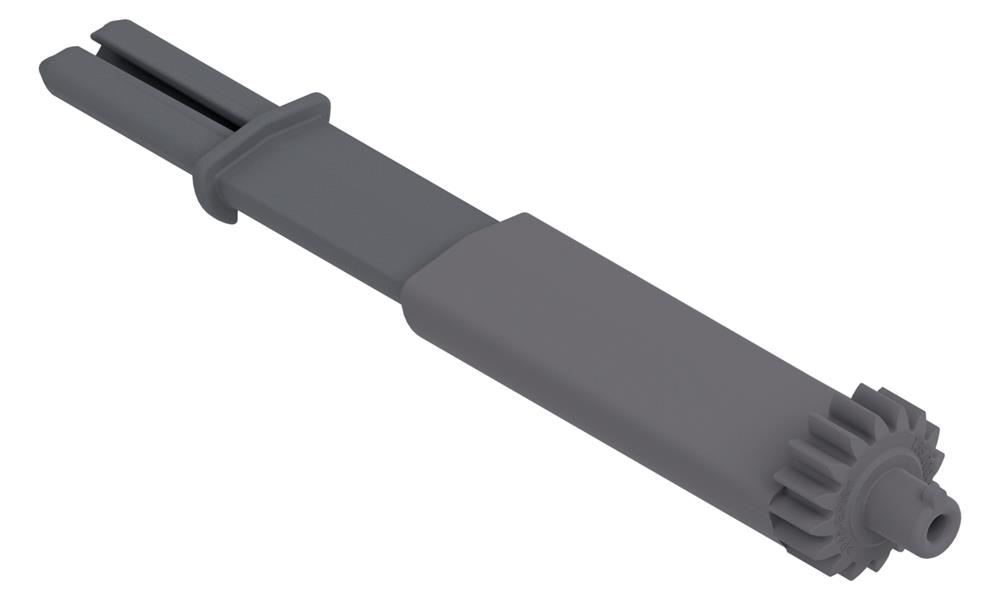

TIP-ON synchronisation linkage, for cutting to size.

	Code	Length
	T57.1140S 28476Blum TIP-ON synchronisation linkage Length=1140mm TANDEM for cutting to size gry	1140mm	£POA ex vat

Tandem Runner Front Fixing Brackets

T51.1700.04L / 16106

£POA

Tandem Runner Front Fixing Brackets

T51.1700.04R / 52784

£POA
