Titus System 5 Cams and Dowels

Titus connectors add value to furniture and to furniture manufacturing.

The broadest possible range of drilling tolerances ensures reliable assembly and consistently strong joints.
'Klix' locking feature, the engagement of interlocking teeth on cam and dowel, to prevent joint loosening in service or transit.
Expanding function provides degrees of variation in out-of-tolerance drillings ensuring stronger joints and improved quality of furniture.
Twinstart thread for faster and more stable insertion.
Depth stop collar prevents over-insertion.
Firm tightening for greater confidence in use.

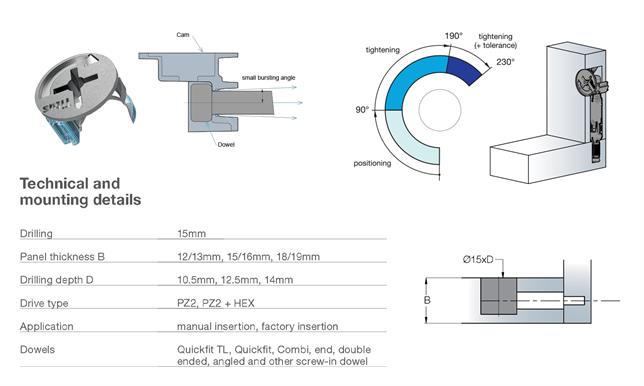

Cam locks at 230° assuring smooth tightening action and greater dowel pull-up.

Titus Cam5000 for 15/16mm and 18/19mm Board

Improved central shape for highly resistant joint
Suitable for use with all Titus dowels
'Klix’ locking feature provides a strong, vibration proof joint
Cam retaining pips ensure that a cam is held in panel position prior to assembly

Code	Size	Price

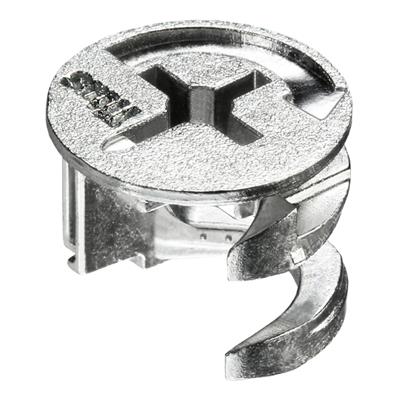

CA.010 51178	Titus System 5 Cam 5000 pz drive 15/16mm panels	15/16mm	£POA

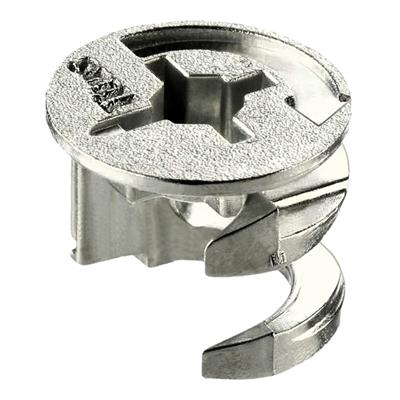

CA.009 81167	Titus System 5 Cam 5000 pz & hex drive 18/19mm panels	18/19mm	£POA

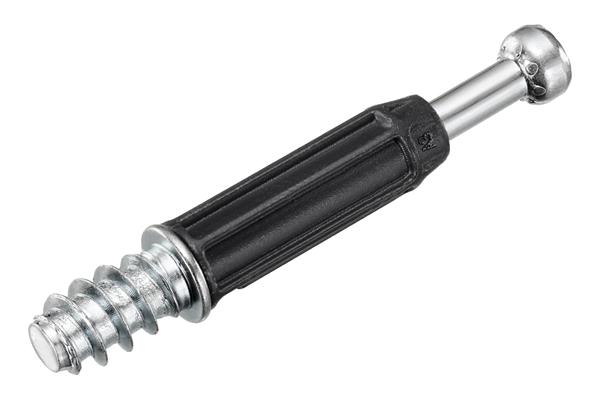

Titus System 5 Combi P Screw-In Dowels

Full body assures a strong joint highly resistant to torsion and pull-out, even in low density chipboard
Accurate insertion with positive stop

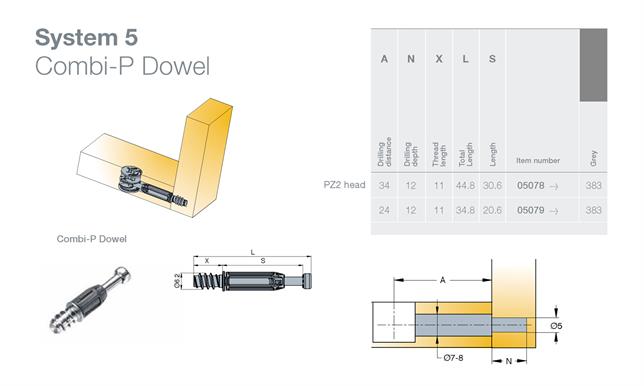

Titus System 5 Combi-P Dowel Specs

Code	Size	Price

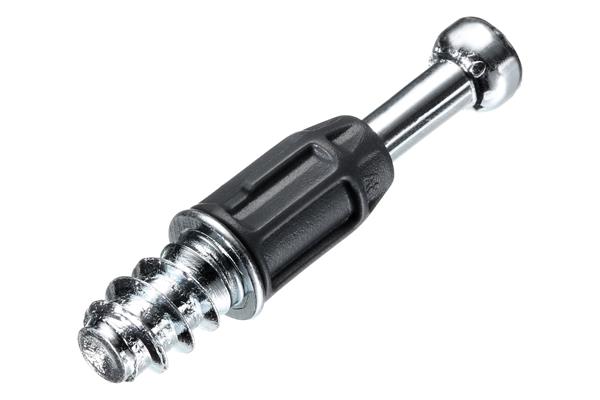

CA.012 35524	Titus System 5 Combi P screw in dowel 24mm, 5mm hole	24mm	£POA

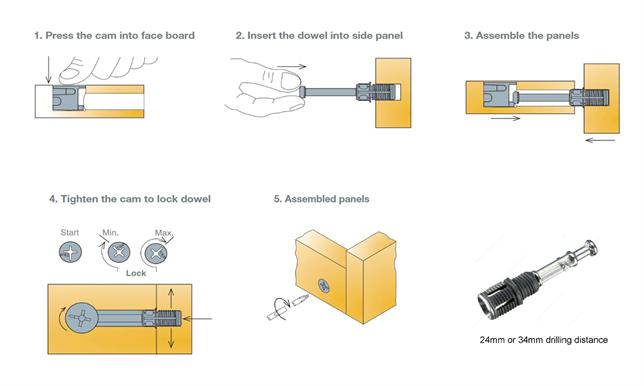

Titus System 5 Quickfit Dowels

Titus System 5 with Quickfit Dowels: Precision Cabinet Assembly.

Available in 8mm for panel-to-panel applications
For use with Cam5000 products
Can be inserted manually (tool-free), with self-adjustment to compensate for inaccurate drilling
The expanding plastic sleeve creates a high performance joint and greater cabinet strength
Firm fixing and high resistance to pull-out with the expanding sleeve design
Dowel head form acts as a positive stop: ensures correct insertion depth and a precise and aligned joint
'Klix' locking feature provides a strong, vibration proof joint
Depth stop collar for accurate insertion

Titus Quickfit Dowel Back-to-Back

Code	Size	Price

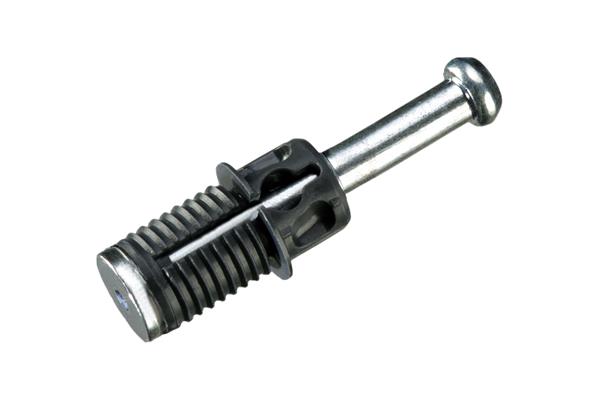

CA.014 81825	Titus System 5 Quickft dowel 24mm, 8mm hole	8 x 24mm	£POA

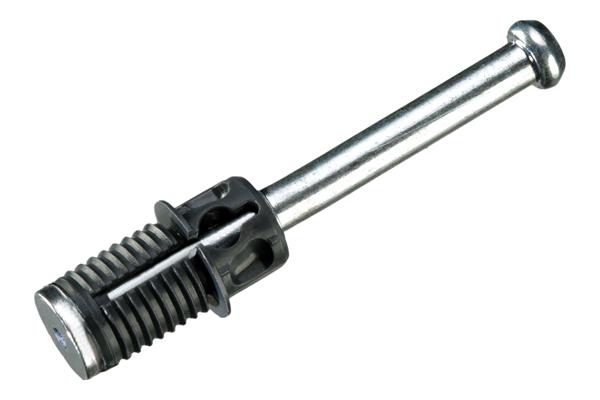

CA.013 76519	Titus System 5 Quickft dowel 34mm, 8mm hole	8 x 34mm	£POA
