Blum 110° clip top hinge with built in blumotion half cranked - HPP

Blum 110° clip top hinge with built in blumotion half cranked

Quick Order Code: 66129 / Product Code: 71B3650

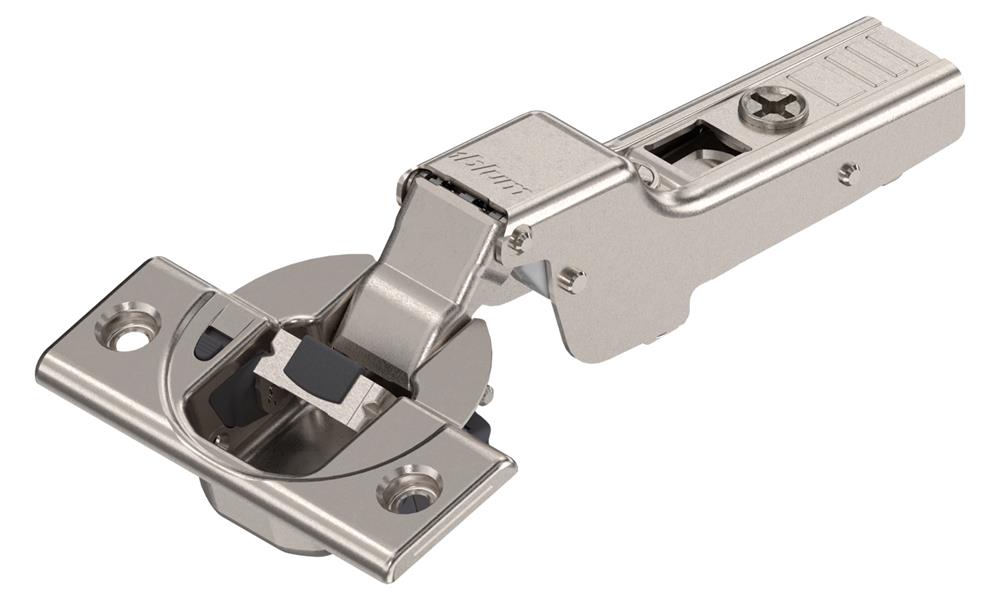

Product 71b3650 main image
  • List Price: £POA exc. VAT
  • Selling Unit: EACH
  • Please log in for your custom prices, stock info, offers and much more.
  • Don't have an account? Click here to learn how to apply for yours.
Rating: 4.3 / 5 - 4 Rating(s)

The integrated Blumotion hinge offers all the benefits of Clip-Top hinges along with integrated soft close.

  • Integrated Blumotion soft close.
  • Convenient "spiral-tech" depth adjustment.
  • Door closing mechanism (sprung).
  • Tool free door to carcase assembly and removal.
  • 3-dimensional adjustment (with suitable mounting plate)
Opening110
BossScrew on
OverlayHalf
Box Qty250

Additional Features / Properties

Cover cap type70T3504 – boss cover cap
Type of side adjustmentWith screw
Type of depth adjustmentconvenient with spiral screw
Item package1 piece
Maximum drilling distance7 mm
Minimum drilling distance3 mm
Fixed dimension / factory setting1.5 mm
Weight762.28 kg
collision measurement (hinge arm height)31 mm
CrankingDual application
Country of originAT
Delivery unit250
Height Outside carton26.4 cm
Layer quantity2000
Lenght Outside carton37.5 cm
Palette height without transport equipment106 cm
Pallet quantity8000
Replenishment lead time2 day
Transport time2 day
Volume/1000120.84 dm³
Weight (tare)/10002.079 kg
Width Outside carton29.9 cm
hinge variantWith integrated BLUMOTION
mounting plate systemCLIP
Colour/surfaceNickel plated
Opening angle110
Closing mechanismwith spring
SAP-Distribution status20 - On sale
SAP - Program allocationSP - Stock Program
Side adjustment+/- 2 mm mm
Depth adjustment+ 3/- 2 mm mm
Boss assemblyscrew-on
Boss materialSteel boss
boss finishNickel plated
Boss adjustmentnone
door materialWood
Gap1.5 mm
Weight based on10000 Piece
applicationstandard hinge
packagingindustrial packing
Packaging unit 1250
Packaging unit 20
Packaging unit 30
Customs tariff number8302100090
Show More
