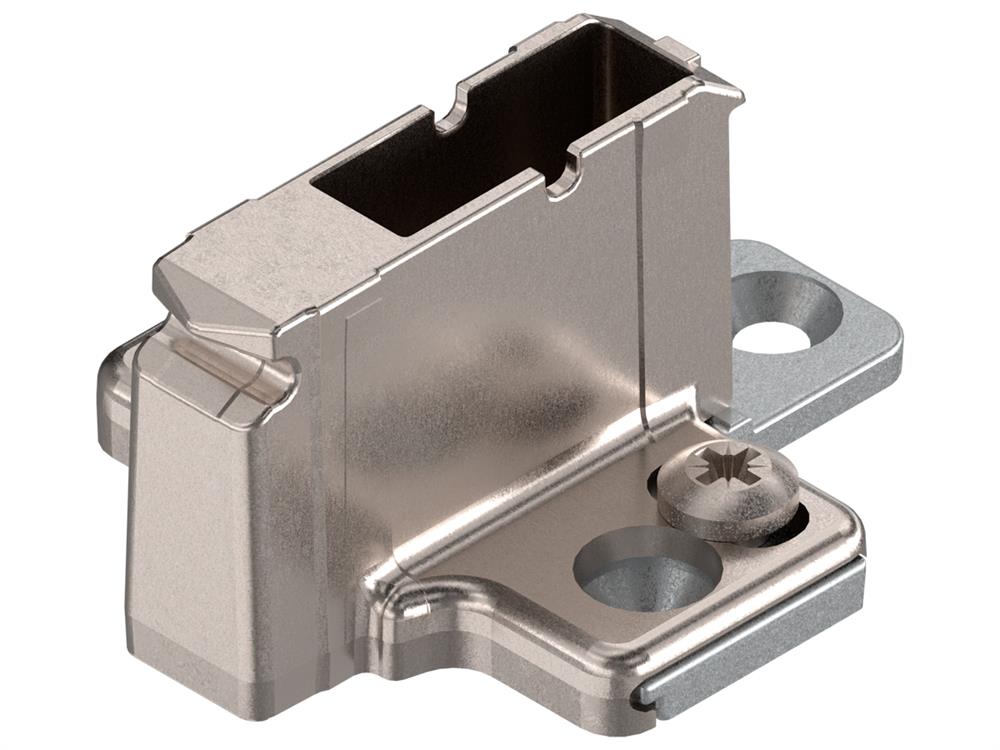

Blum cruciform clip top mounting plate spacing 18mm height 26.5mm

Quick Order Code: 97695 / Product Code: 175H9190.22

• List Price: £POA exc. VAT
• Selling Unit: EACH
• Please log in for your custom prices, stock info, offers and much more.
• Don't have an account? Click here to learn how to apply for yours.

Rating: 4.5 / 5 - 2 Rating(s)

For use with In-Frame door systems. Can be used with CLIP top and CLIP hinges only.

Height	18mm
Type	Cruciform
Box Qty	250

Additional Features / Properties

Item package	1 piece
diametre of fixing holes	5 mm
drilling depth of fixing holes	11.5 mm
Distance between fixing positions	32 mm
Weight	581.96 kg
Height adjustment	+/- 2 mm
Height	26.5 mm
Country of origin	AT
Delivery unit	50
Height Outside carton	31.4 cm
Layer quantity	3000
Lenght Outside carton	38.3 cm
Palette height without transport equipment	94 cm
Pallet quantity	9000
Replenishment lead time	2 day
Transport time	2 day
Volume/1000	100.27 dm³
Weight (tare)/1000	3.916 kg
Width Outside carton	17.3 cm
Fixing	for system screws
Mounting plates drilling pattern	drilling pattern 1/cruciform mounting plate
Spacing	18 mm
Shape of mounting plate	Cruciform
Mounting plates height adjustment	through lower and upper part/screws
Upper part material	Zinc
Finish	nickel plated
mounting plate system	CLIP
Angle	0
Colour/surface	Nickel plated
SAP-Distribution status	20 - On sale
SAP - Program allocation	SP - Stock Program
Weight based on	10000 Piece
packaging	Commercial packing
Packaging unit 1	50
Packaging unit 2	250
Packaging unit 3	0
distance cabinet front edge to first fixing position	37 mm
Customs tariff number	8302100090
