All Products > Blum > Blum Lift Systems > Blum Aventos HS

Blum Aventos HS

AVENTOS HS is the ideal fitting for large fronts. For wall cabinets that offer a multitude of design possibilities and enhanced user convenience. Like all other AVENTOS systems, the up & over system is easy to assemble and has an award-winning design.

AVENTOS HS offers a compact programme for large and heavy fronts.

Cabinet heights from 350 to 800 mm
Cabinet widths up to 1800 mm
9 different lift mechanisms and one lever arm
Can be used with cornice and crown mouldings
Lift mechanisms and front fixing brackets can be used symmetrically
For wooden and aluminium frame fronts
Tool-free cross stabiliser for even greater ease of assembly

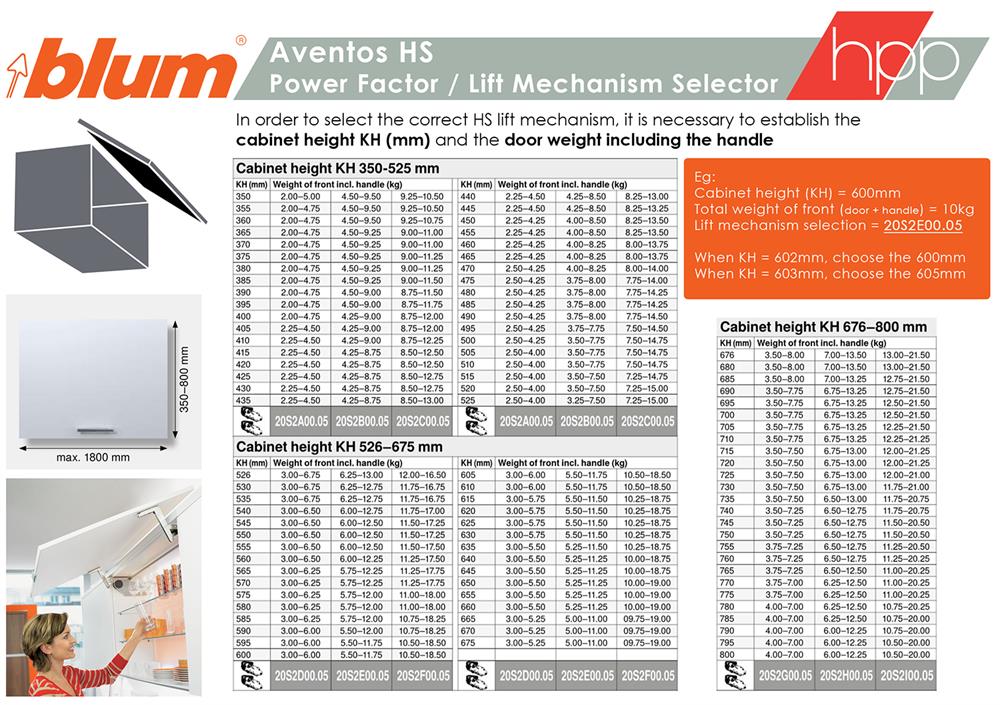

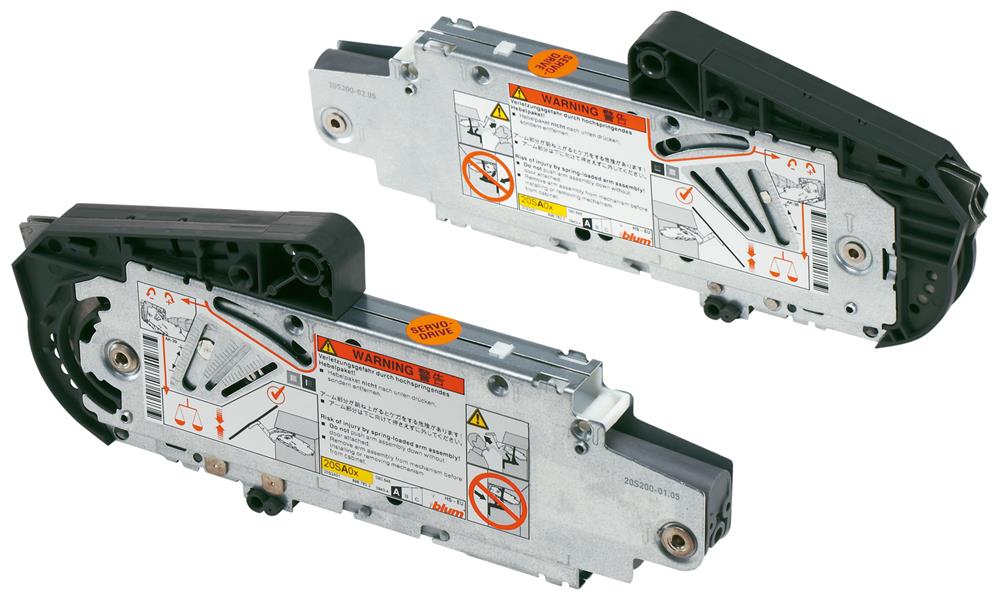

Blum Aventos HS Lifts

Set includes two symmetrical lifts.

Code	Cabinet Height
20S2A00.05 44325Blum Aventos HS lift mechanism set to suit cabinet height 350-525mm	350 - 525mm	£POA ex vat
20S2D00.05 36788Blum Aventos HS lift mechanism set to suit cabinet height 575-675mm	526 - 675mm	£POA ex vat
20S2E00.05 24320Blum Aventos HS lift mechanism set to suit cabinet height 576-675mm	526 - 675mm	£POA ex vat
20S2H00.05 16467Blum Aventos HS lift mechanism set	676 - 800mm	£POA ex vat
20S2I00.05 88951Blum Aventos HS lift mechanism set to suit cabinet height 676-800mm	676 - 800mm	£POA ex vat

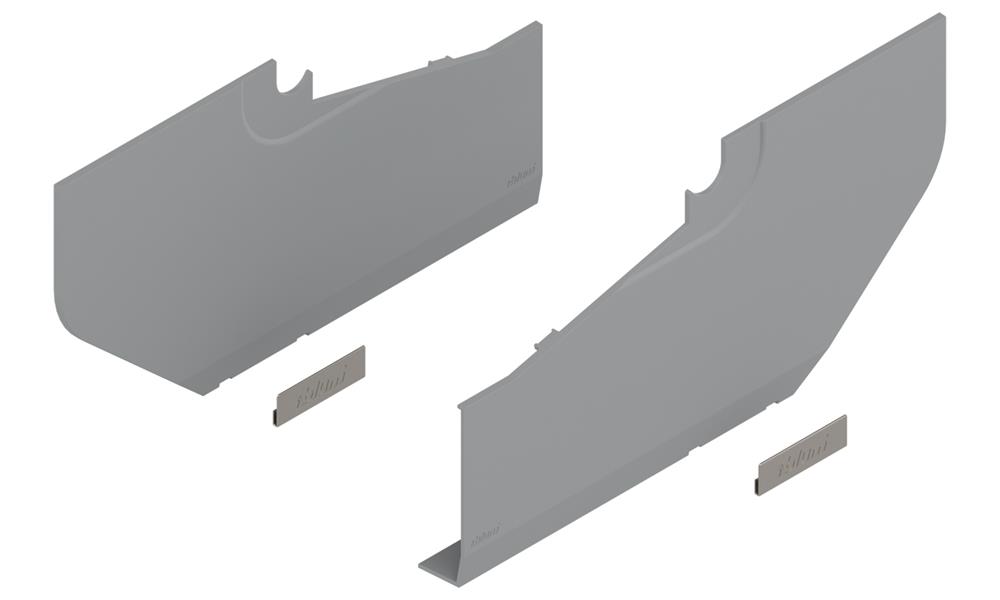

Blum Aventos HS Cover Caps

Includes left and right cover caps.

	Code	Colour
	20S8020 24960Blum Aventos HS cover cap set light grey	Grey	£POA ex vat

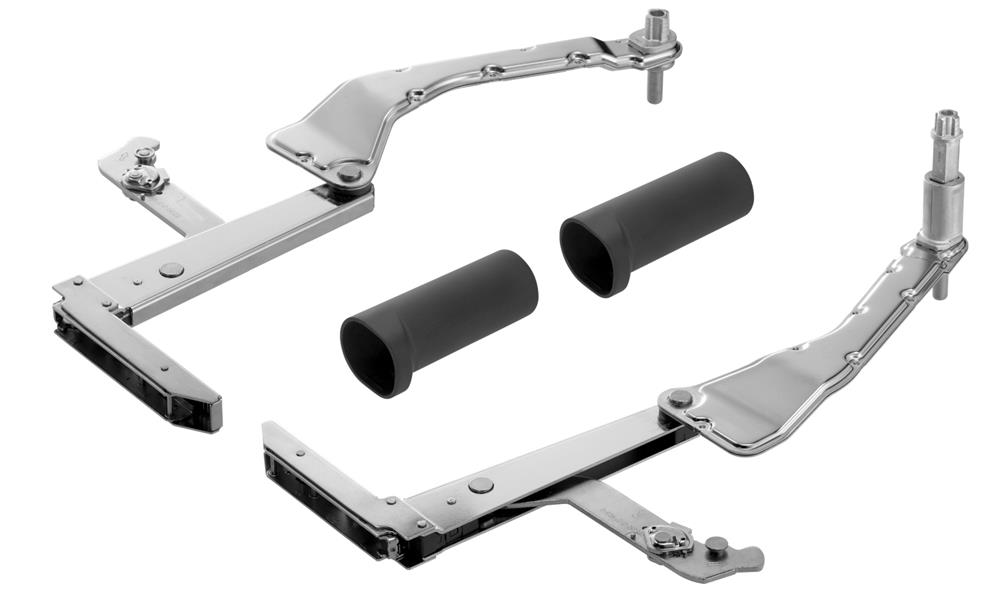

Blum Aventos HS Arms

Two arms and stabiliser cover caps per set. All installations require a stabiliser rod.

	Code	Description
	20S3500.06 78645Blum Aventos HS lever arm set	Blum Aventos HS lever arm set	£POA ex vat

Blum Aventos HS Lever Arm SERVO-DRIVE Set

	Code	Description
	21S3500.01 59360Blum Aventos HS lever arm set for SERVO-DRIVE	Blum Aventos HS lever arm set for SERVO-DRIVE	£POA ex vat

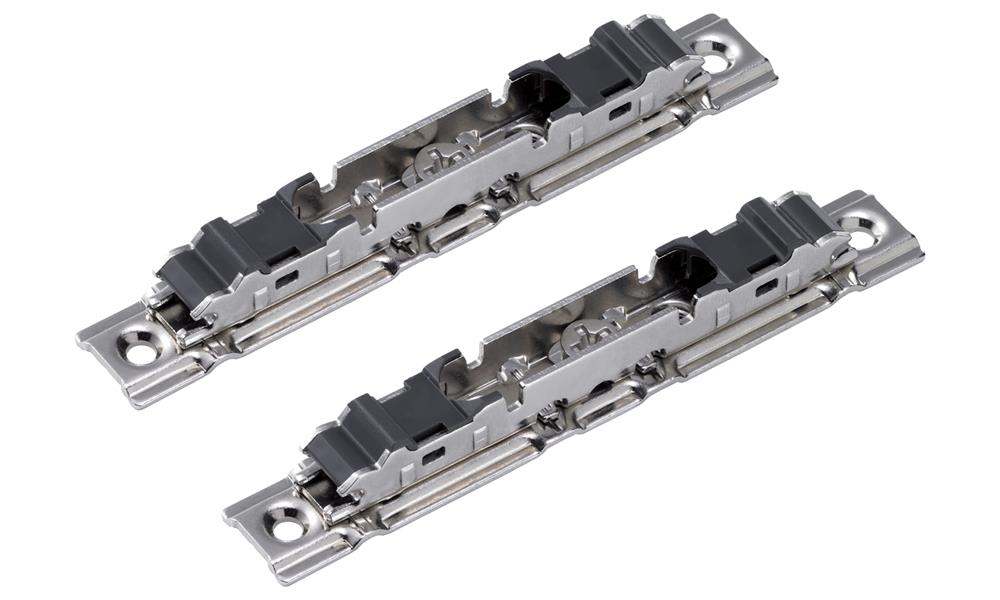

Blum Aventos HS Fixing Brackets

Front fixing bracket for wooden fronts.

20S4200 - Product Data Sheet

	Code	Description
	20S4200 67079Blum Aventos HK HK Top HL and HS front fixing bracket	Blum Aventos HK HK Top HL and HS front fixing bracket	£POA ex vat

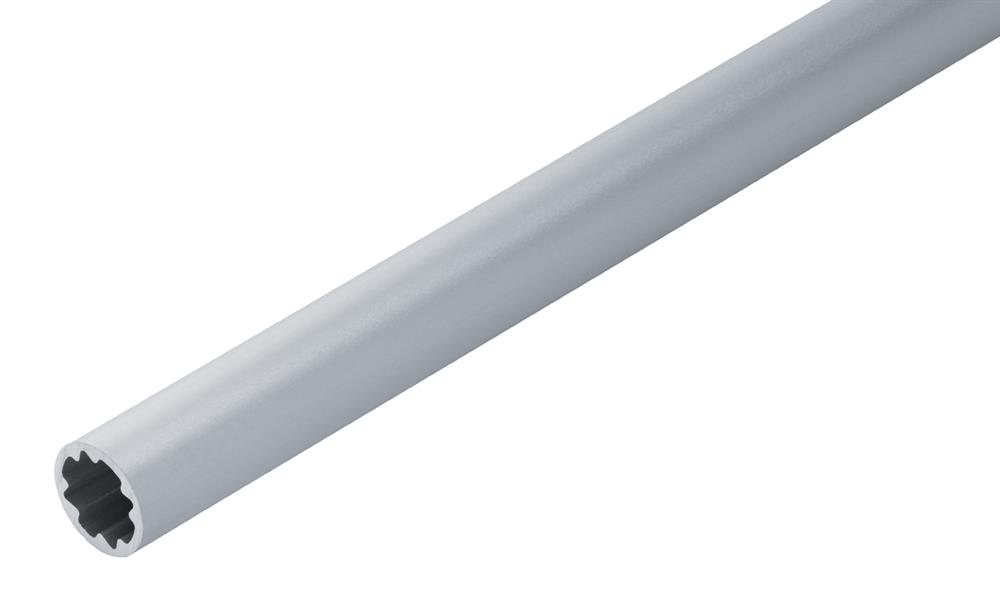

Blum Aventos HS Stabiliser Rod

All installations require a stabiliser rod.

	Code	Length
	20Q1061UN 78887Blum Aventos aluminium stabiliser rod 1061mm	1061mm	£POA ex vat

	HS Overview
	HS Technical Specifications
	Wood wide alu frame applications
	Narrow alu frame applications
	HS Servo-Drive installation
	Aventos Parts Calculator
	360x600 Cabinet Planning Example
	Aventos Calculator - Quick Version
	Aventos HS Assembly
