All Products > Blum > Blum Lift Systems > Blum Aventos HL

Blum Aventos HL

AVENTOS HL is the ideal lift up system for mid and high wall units and for niche cabinets with cabinets positioned above them. For easy access to cabinet interiors.

AVENTOS HL can even solve tricky applications, e.g. integration of electrical appliances into wall units.

Cabinet heights from 300 to 580 mm
Cabinet widths up to 1800 mm
Lift mechanisms and lever arms for all weight / carcass height applications
Can be used with cornice and crown mouldings
Lift mechanisms and front fixing brackets can be used symmetrically
For wooden and aluminium frame fronts
Tool-free cross stabiliser for even greater ease of assembly

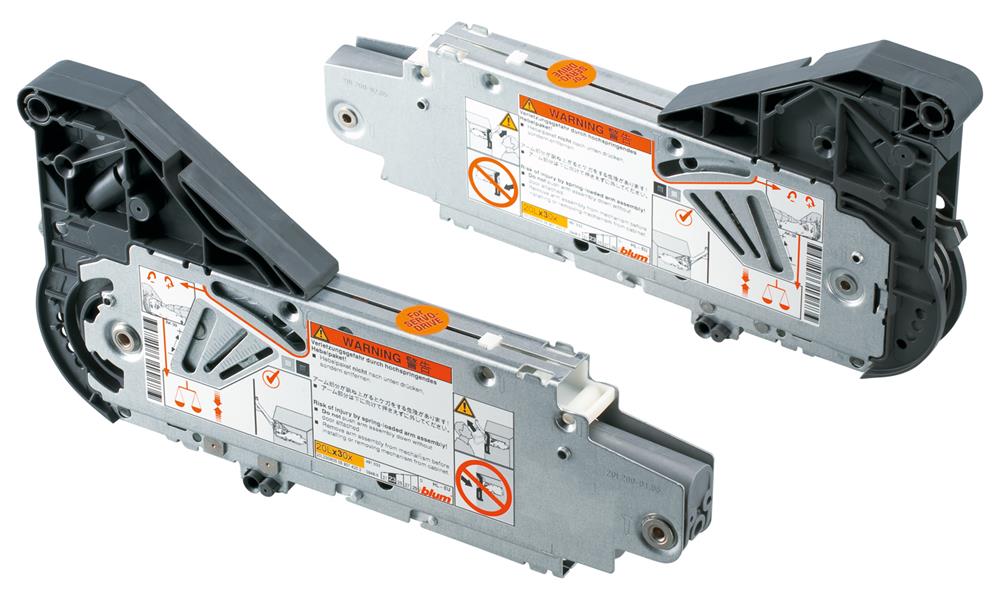

Blum Aventos HL Lifts

Set includes two lifts. Minimum carcass depth for Aventos HL is 278mm.

Download the Aventos Parts Calculator to see which parts you need for your specific application.

Code	Power Factor
20L2300.05 24625Blum Aventos HL lift mechanism set (1 pair) light medium Servo Drive Compatible	Light - Medium	£POA ex vat
20L2500.05 81358Blum Aventos HL lift mechanism set (1 pair) medium (Servo Drive Compatible)	Medium	£POA ex vat
20L2700.05 28843Blum Aventos HL lift mechanism set (1 pair) medium-heavy, Servo Drive Compatible	Medium - Heavy	£POA ex vat
20L2900.05 89444Blum Aventos HL lift mechanism set (1 pair) heavy duty (Servo Drive Compatible)	Heavy	£POA ex vat

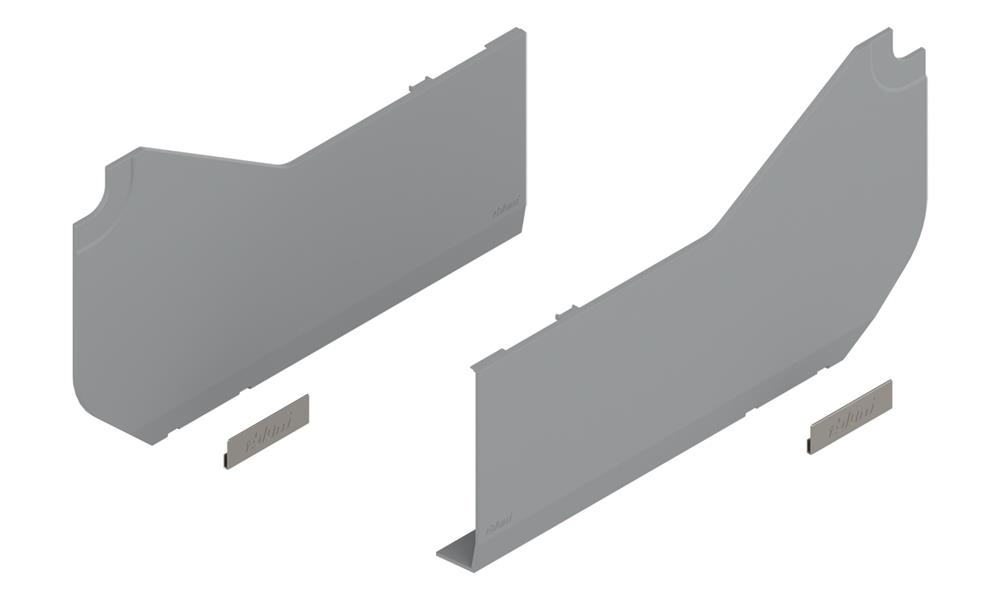

Blum Aventos HL Cover Cap Set

Includes left and right cover caps.

	Code	Finish
	20L8020G 31196Blum Aventos HL cover cap set grey L&R	Grey	£POA ex vat

	Code	Description
	21L8020 68175Blum Aventos Servo Drive HL cover cap set grey (includes Trigger switch) R&L	Blum Aventos Servo Drive HL cover cap set grey (includes Trigger switch) R&L	£POA ex vat

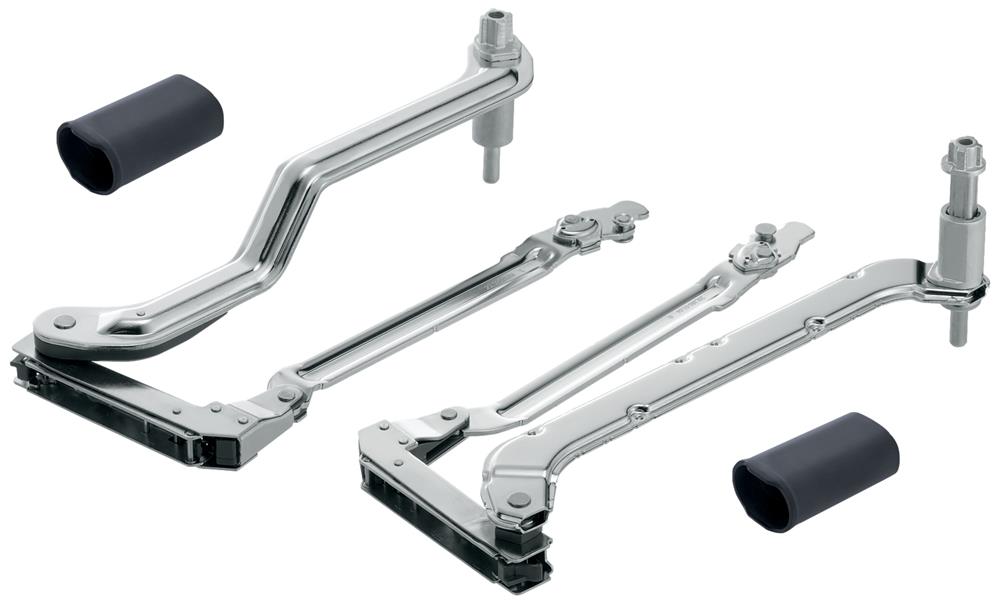

Blum Aventos HL Arms

Two arms and stabiliser cover caps per set. All installations require a stabiliser rod, for cabinets over 1219mm a connecting piece and additional rods will be required.

Code	Carcass Height
20L3500.05 46386Blum Aventos HL lever arm set (1 pair) 350-400mm high cabinets	350-400mm	£POA ex vat
20L3800.05 37637Blum Aventos HL lever arm set (1 pair) 400-550mm high cabinets	400-550mm	£POA ex vat
20L3900.05 99546Blum Aventos HL lever arm set (1 pair) 450-580mm high cabinets	450-580mm	£POA ex vat

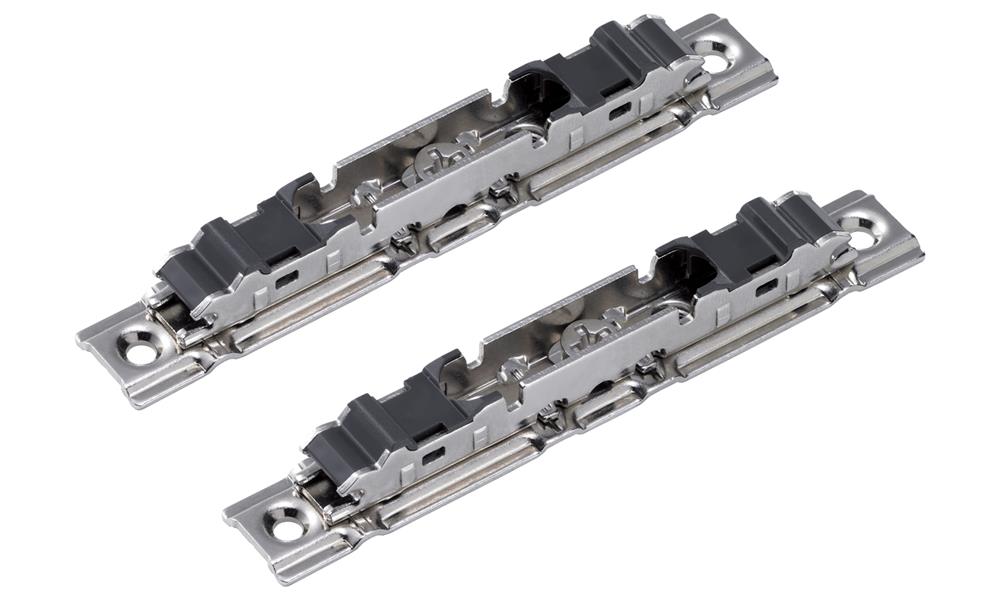

Blum Aventos HL Fixing Brackets

Front fixing bracket for wooden fronts.

	Code	Description
	20S4200 67079Blum Aventos HK HK Top HL and HS front fixing bracket	Blum Aventos HK HK Top HL and HS front fixing bracket	£POA ex vat

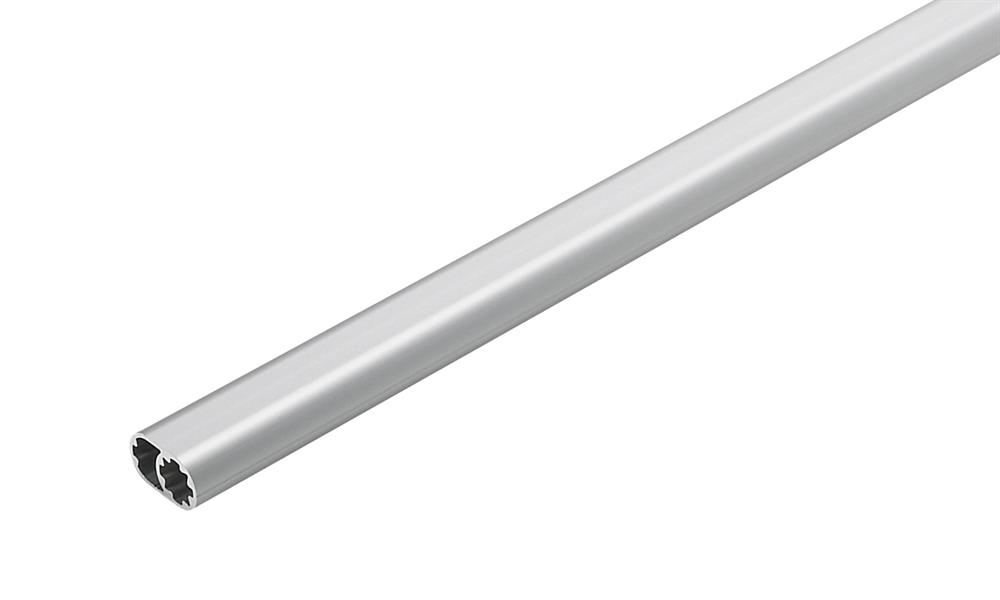

Blum Aventos HL Stabiliser Rod

Aluminium rod for cutting to size, required on all Aventos HL installations.

	Code	Length
	20Q1061UA 51969Blum Aventos HL aluminium stabiliser rod 1061mm for cutting to length	1061mm	£POA ex vat

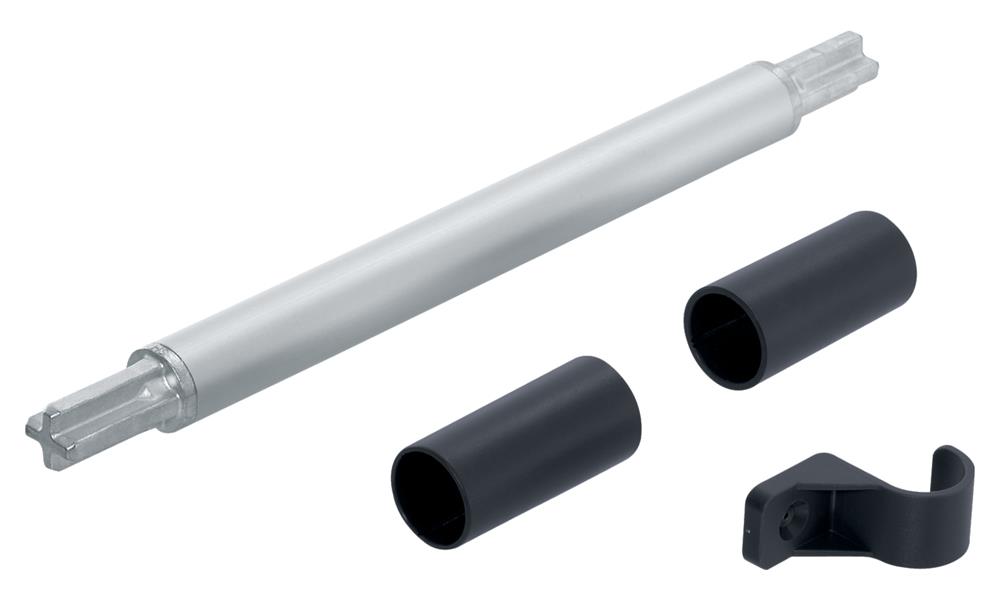

Blum Aventos HL Stabiliser Rod Connecting Piece

Required for cabinets over 1219mm wide.

	Code	Description
	20Q091ZA 23575Blum Aventos HL connecting piece for stabiliser rod 1219mm	Blum Aventos HL connecting piece for stabiliser rod 1219mm	£POA ex vat

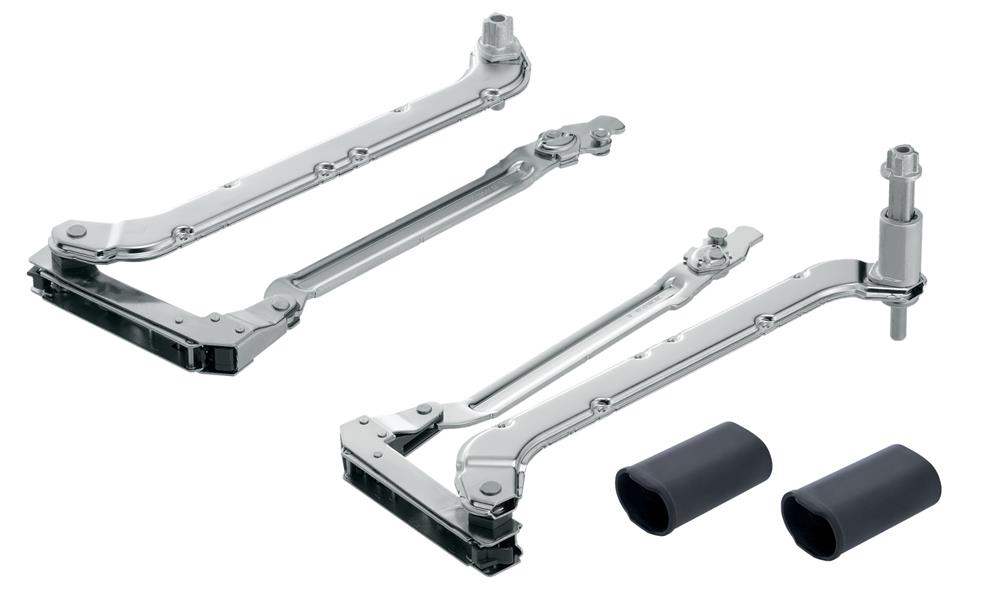

Blum Aventos HL Lever Arm Set

	Code	Carcass Height
	20L3200.06 78085Blum HL Aventos lever arm set 300-350mm high cabinets	300 - 350mm	£POA ex vat
	21L3900 11492Blum Servodrive HL Aventos lever arm set 450-580mm high cabinets	450 - 580mm	£POA ex vat

	Aventos HL Technical Specifications
	Aventos HL - Standard Applications
	Aventos HL - Special Applications
	Aventos Parts Calculator
	Servo-Drive for Aventos HL
	360x600 Cabinet Planning Example
	Aventos Calculator - Quick Version
	Watch the Aventos HL assembly video here
