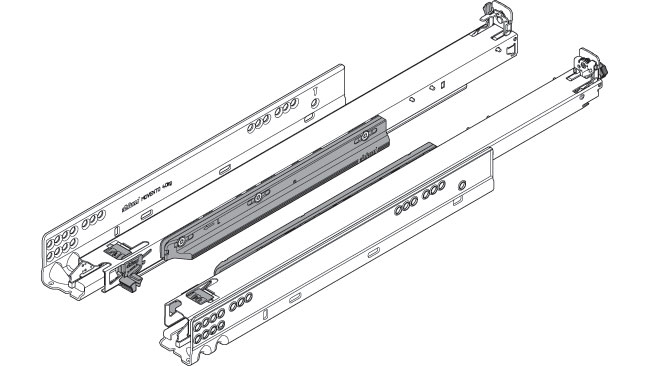

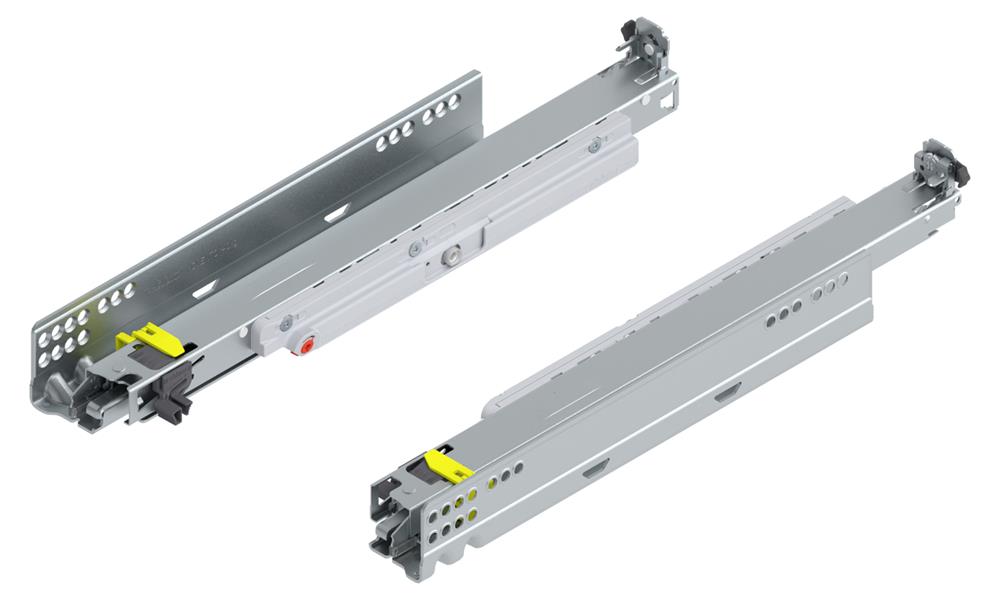

Blum full extension Movento runner with Tip On 40kg 400mm

Quick Order Code: 02431 / Product Code: 760H4000T

Product 760h4000t main image
  • List Price: £POA exc. VAT
  • Selling Unit: EACH
  • Please log in for your custom prices, stock info, offers and much more.
  • Don't have an account? Click here to learn how to apply for yours.
Rating: 4.3 / 5 - 4 Rating(s)

Tip-On mechanical opening support system for handleless unit design.

  • Four-Dimensional Adjustment
  • Can be combined with side stabilisation
  • Quick and Easy Assembly
Length400mm
Weight Rating40kg

Additional Features / Properties

Distance of BLUMOTION and BLUMATIC313.5 mm
Distance of latch276.3 mm
Distance of centre profile367.55 mm
Assembly typeSide mounted
Item packageSet
Bearing height28.5 mm
Pull-out typeFull extension
cabinet profile fixingwith screws
Motion technologyTIP-ON
mounting width (incl. spacing)21 mm
Weight2119.21 kg
hook position (from end of runner)9 mm
cabinet profile width40.9 mm
Runner systemSynchronised roller carriage system
length of cabinet profile311.5 mm
Drawer profile width29.7 mm
dynamic load bearing40 kg
Country of originAT
Delivery unit6
Height Outside carton12.1 cm
Layer quantity24
Lenght Outside carton59.8 cm
Palette height without transport equipment97 cm
Pallet quantity192
Replenishment lead time2 day
Transport time2 day
Volume/10004850 dm³
Weight (tare)/1000144.975 kg
Width Outside carton37.5 cm
MaterialSteel
minimum internal cabinet depth403 mm
Furniture componentsWooden drawer
Nominal Length400 mm
Colour/surfaceZinc plated
SAP-Distribution status20 - On sale
SAP - Program allocationSP - Stock Program
Shank height of cabinet profile47.5 mm
type of runner systemMOVENTO
Over extension1 mm
Weight based on1000 Piece
connection runner system with Box or drawerfor locking device
packagingMultipack
Packaging unit 16
Packaging unit 20
Packaging unit 30
Customs tariff number8302420090
Additional featureswith TIP-ON
