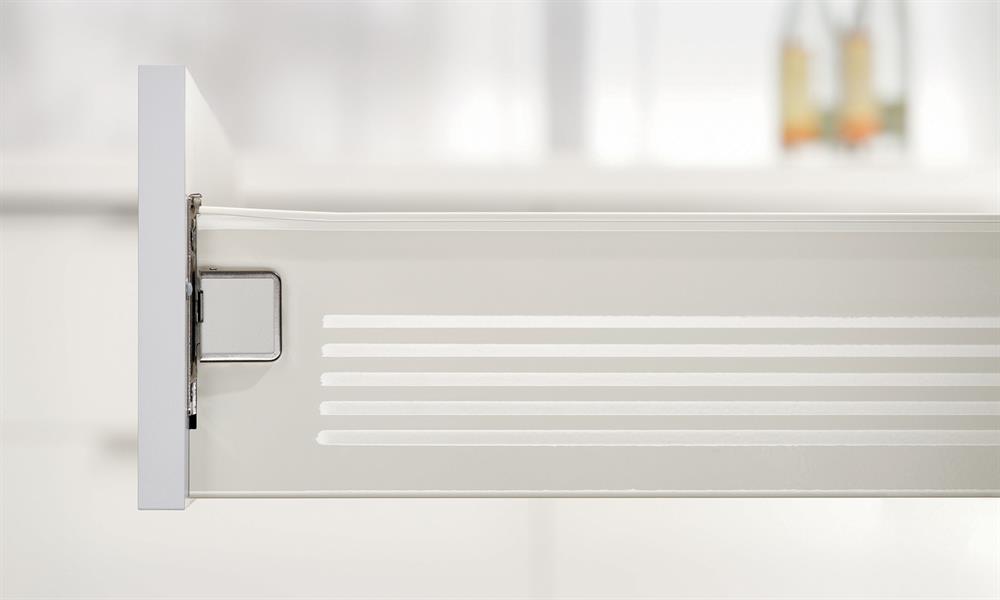

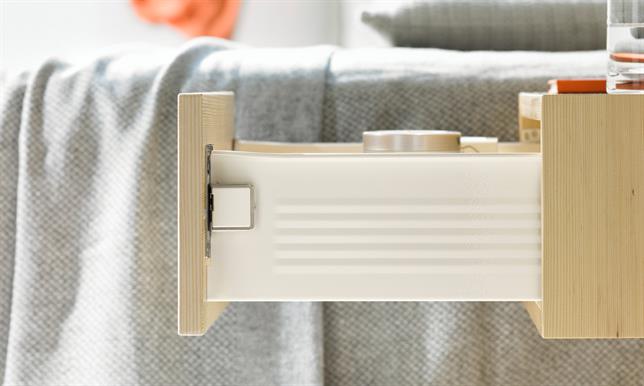

Blum Metabox

Offering excellent value for money the versatile and economical Metabox system caters for almost every conceivable application. The Metabox is available in various heights & depths including filing drawers and high fronted pullout solutions. Key features include:

  • Steel drawer sides
  • 25kg dynamic load bearing
  • High impact nylon runners
  • Blumatic self-closing feature

Read More...

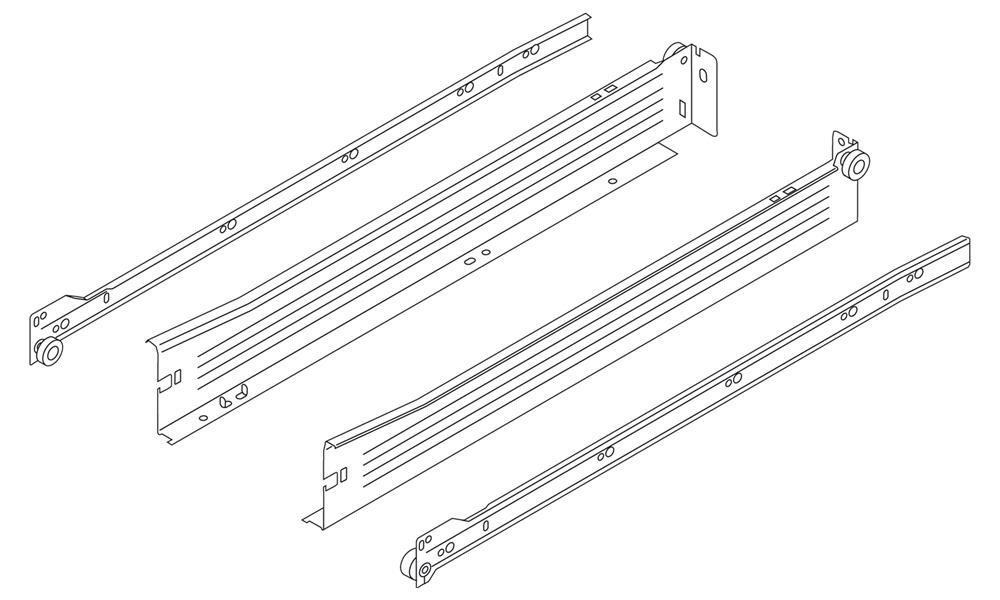

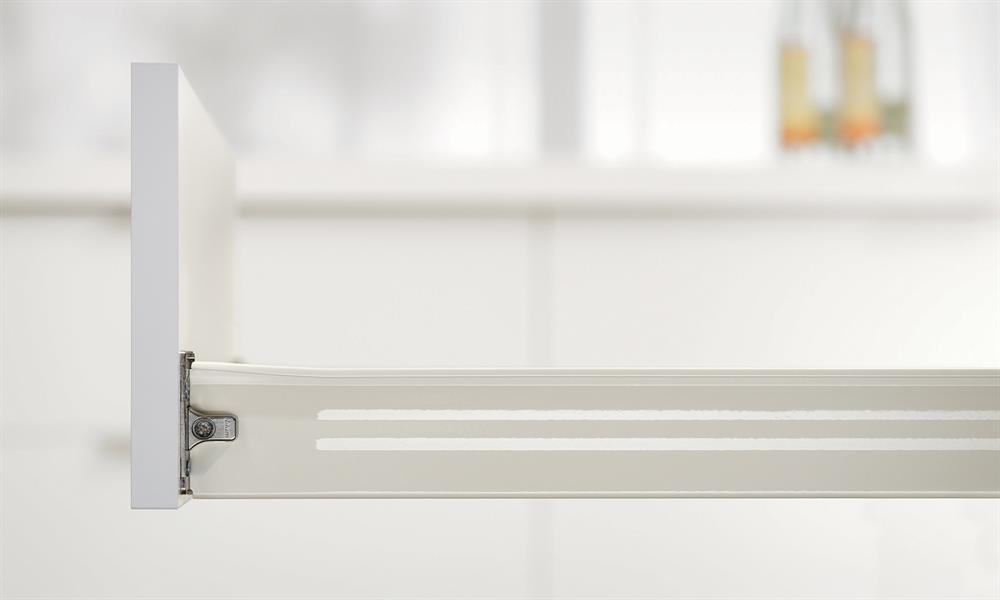

Metabox N-Height

Ideal for the storage of flat items such as place mats.

Two N-Height front fixing brackets - ZSF.151.05L / ZSF.151.04R (Screw-on) or ZSF.1610.05FRO / ZSF.1610.04FRO (Knock-in) are required per drawer.

MFC components not included.

DownloadMetabox N-M-K-H Height Specs
CodeDepthHeightFinish
320N4000C
66390Blum cream metabox drawer 400 x 54mm		400mm54mmCream£POA  ex vat
320N4500C
71185Blum cream metabox drawer 450 x 54mm		450mm54mmCream£POA  ex vat

Metabox N-Height Front Fixing Brackets

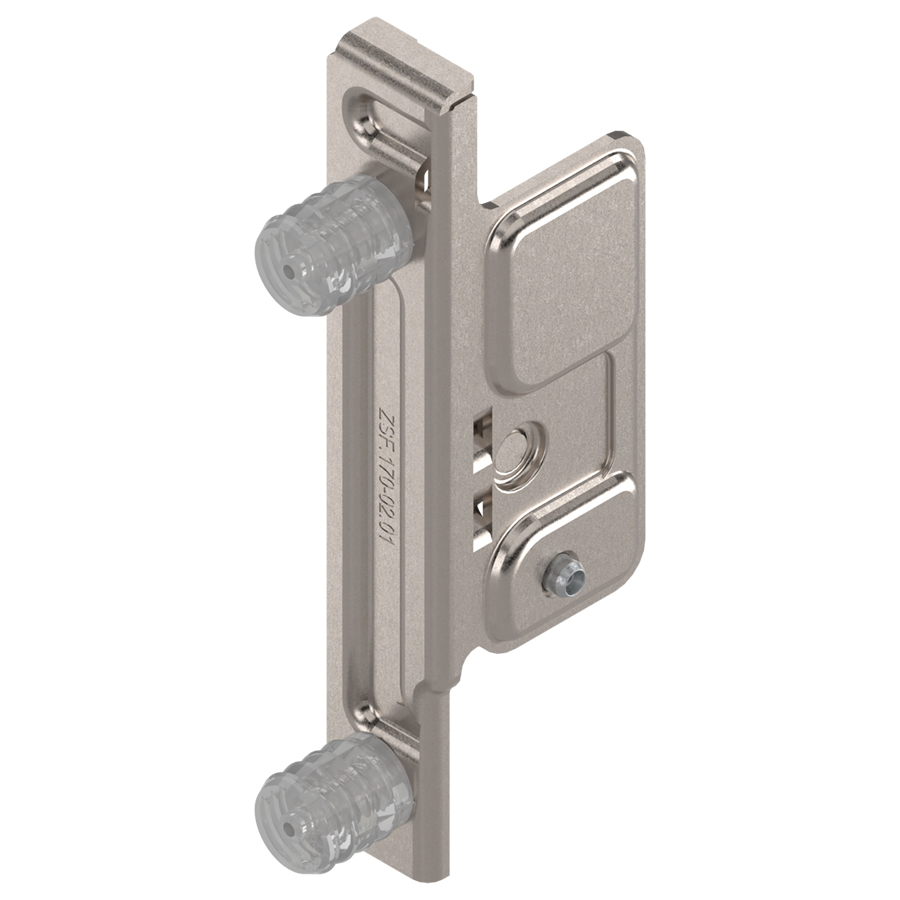

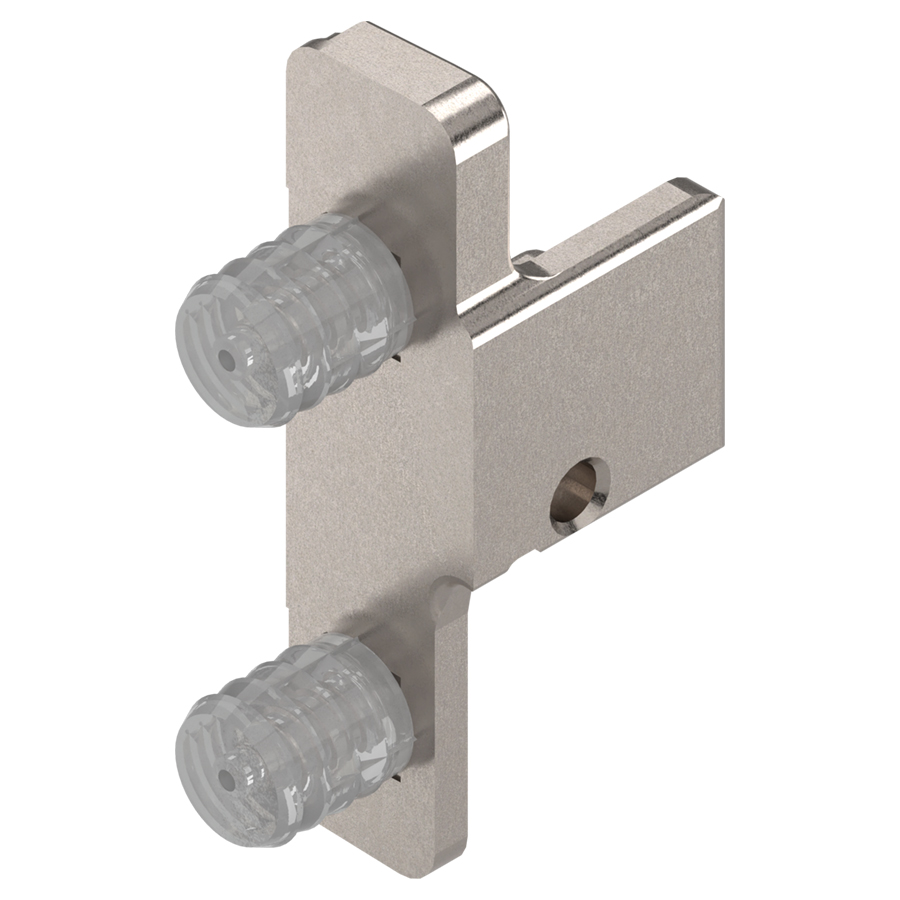

Knock-in, Left

Front fixing brackets for use with N-Height Metabox.

CodeFixingHand
ZSF.1610.05FRO
43156Blum metabox knock-in front fixing bracket (N Height) LH		Knock-inLeft£POA  ex vat
ZSF.1610.04FRO
73074Blum metabox knock-in front fixing bracket (N Height) RH		Knock-inRight£POA  ex vat

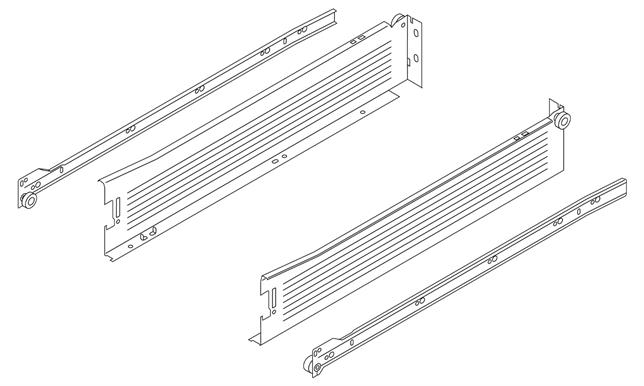

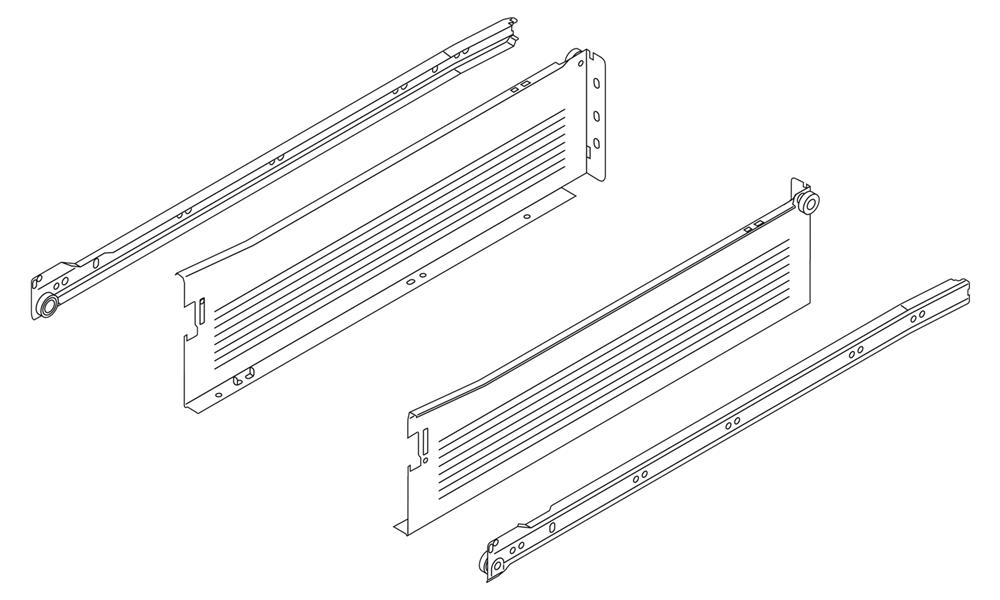

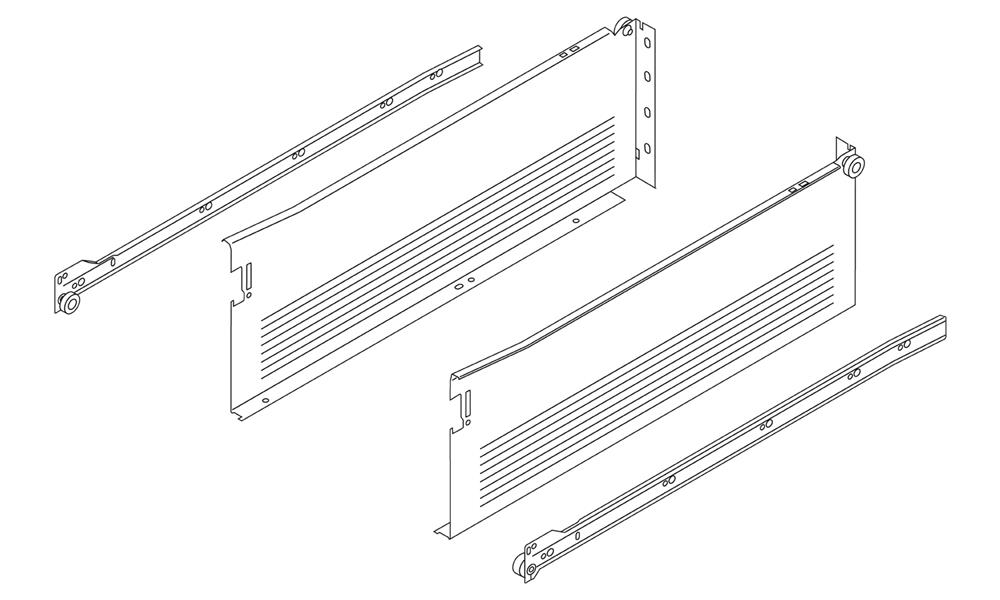

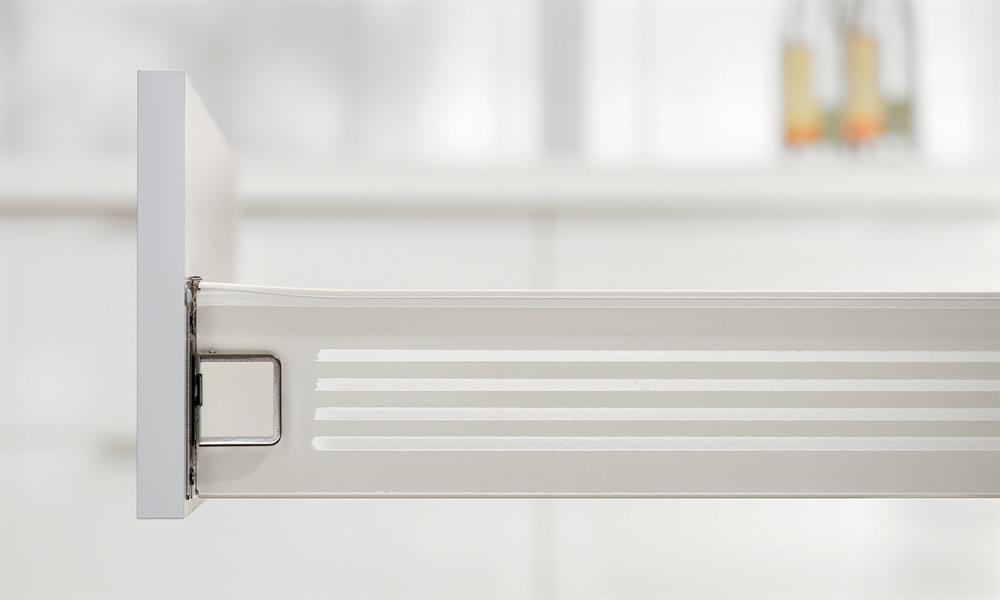

Metabox M-Height

Ideal for the storage of items such as cutlery and utensils.

Two Standard front fixing brackets - ZSF.1700L / ZSF.1700R (Screw-on) or ZSF.1800L / ZSF.1800R (Knock-in) - are required per drawer.

MFC components not included.

DownloadMetabox N-M-K-H Height Specs
CodeDepthExtensionHeightFinish
320M2700C
16988Blum cream metabox drawer 270 x 86mm		270mmSingle86mmCream£POA  ex vat
320M3500C
76695Blum cream metabox drawer 350 x 86mm		350mmSingle86mmCream£POA  ex vat
320M4000C
20410Blum cream metabox drawer 400 x 86mm		400mmSingle86mmCream£POA  ex vat

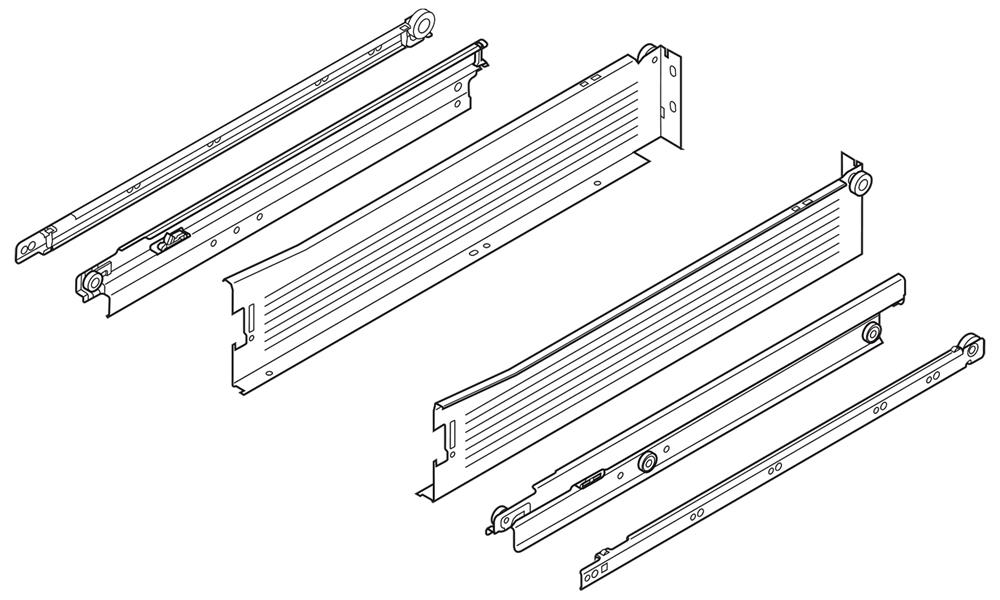

Clearance
330M4000
69931Blum cream metabox drawer 400 x 86mm full extension		400mmFull86mmCream£POA  ex vat
320M4500C
35832Blum cream metabox drawer 450 x 86mm		450mmSingle86mmCream£POA  ex vat
320M5000C
43913Blum cream metabox drawer 500 x 86mm		500mmSingle86mmCream£POA  ex vat

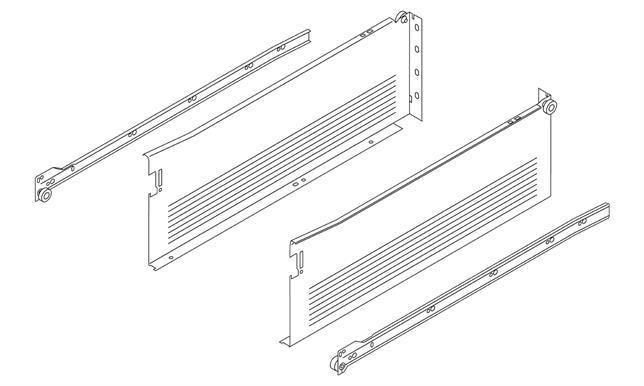

Metabox K-Height

  • Ideal for the storage of items such as crockery
  • 25kg max carrying capacity

Two Standard front fixing brackets - ZSF.1700L / ZSF.1700R (Screw-on) or ZSF.1800L / ZSF.1800R (Knock-in) - are required per drawer.

MFC components not included.

DownloadMetabox N-M-K-H Height Specs
CodeDepthHeightFinish
320K4000C
12707Blum cream metabox drawer 400 x 118mm		400mm118mmCream£POA  ex vat
320K4500C
97377Blum cream metabox drawer 450 x 118mm		450mm118mmCream£POA  ex vat

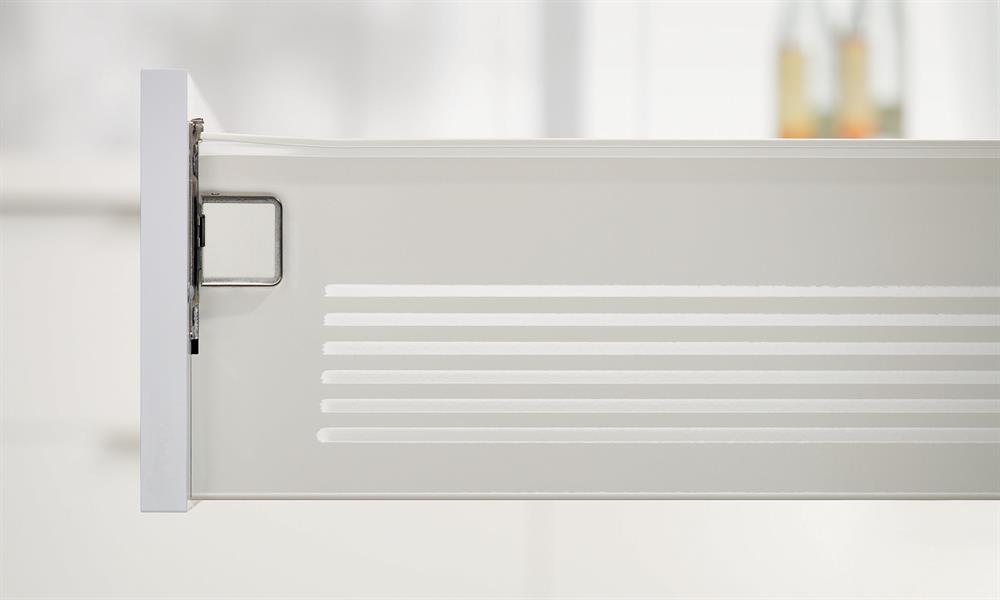

Metabox H-Height

  • Ideal for the storage of items such as pans, crockery and provisions
  • 25kg max carrying capacity

Two Standard front fixing brackets - ZSF.1700L / ZSF.1700R (Screw-on) or ZSF.1800L / ZSF.1800R (Knock-in) - are required per drawer.

MFC components not included.

DownloadMetabox N-M-K-H Height Specs
CodeDepthHeightFinish
320H3500C
77533Blum cream metabox drawer 350 x 150mm		350mm150mmCream£POA  ex vat
320H4000C
37452Blum cream metabox drawer 400 x 150mm		400mm150mmCream£POA  ex vat
320H4500C
37442Blum cream metabox drawer 450 x 150mm		450mm150mmCream£POA  ex vat
320H5000C
32790Blum cream metabox drawer 500 x 150mm		500mm150mmCream£POA  ex vat

Metabox Accessories

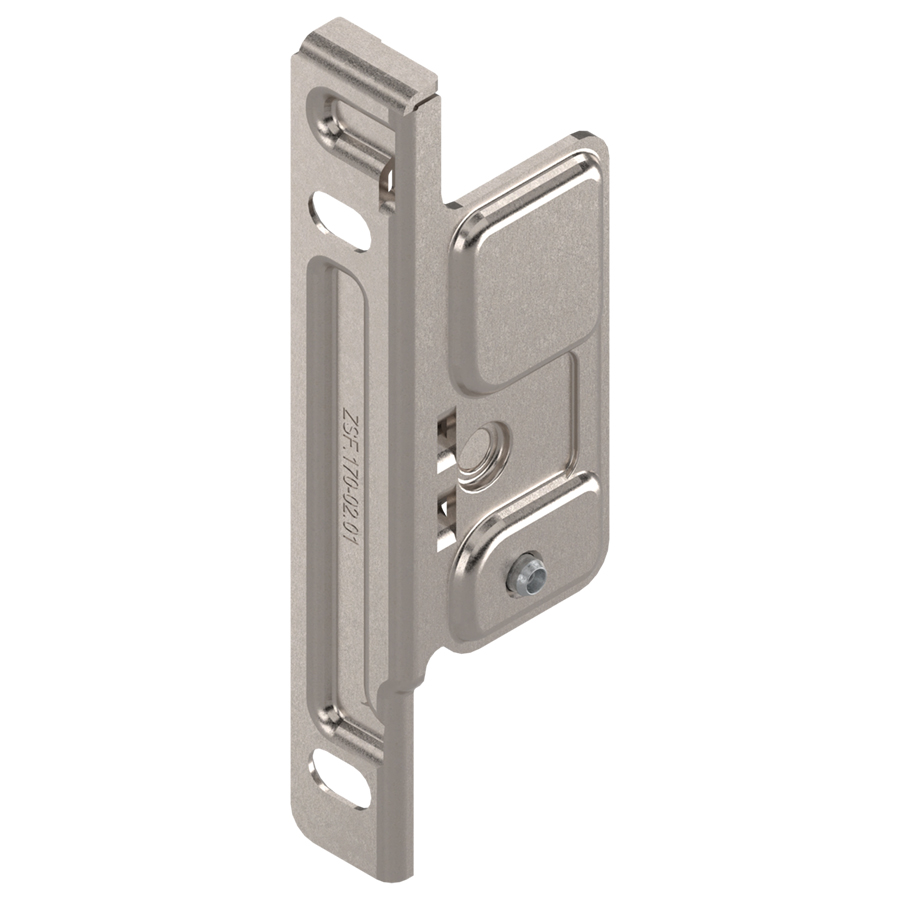

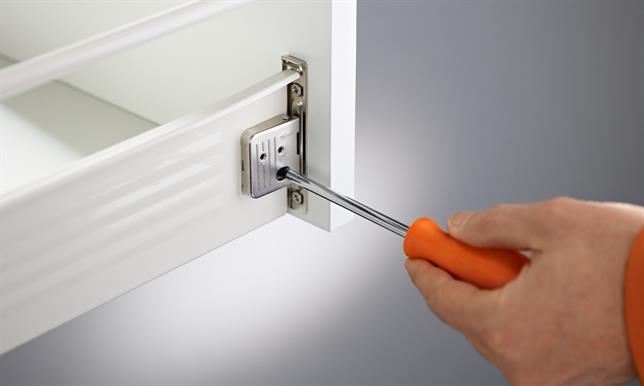

Metabox Standard Front Fixing Brackets

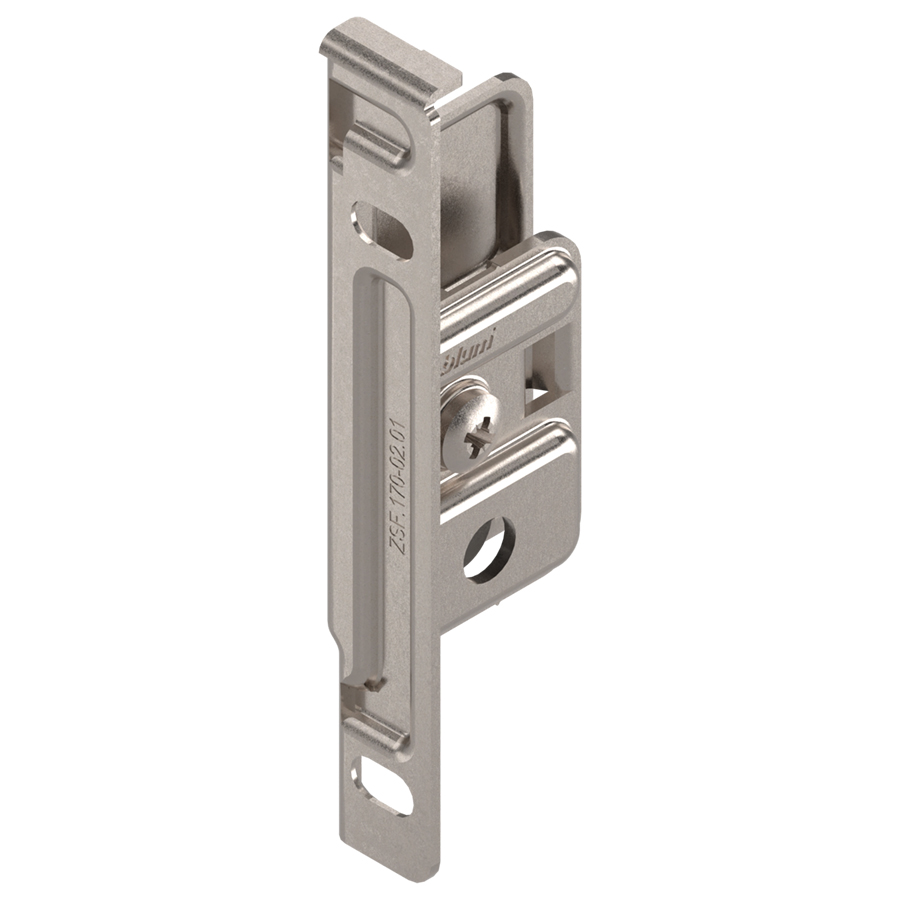

Screw-on left hand

Front fixing brackets for use with all Metabox except N-Height.

CodeFixingHandFinish
ZSF.1700L
14216Blum metabox stainless steel screw-on front fixing bracket LH		Screw-onLeftStainless Steel£POA  ex vat
ZSF.1700R
93865Blum metabox stainless steel screw-on front fixing bracket RH		Screw-onRightStainless Steel£POA  ex vat

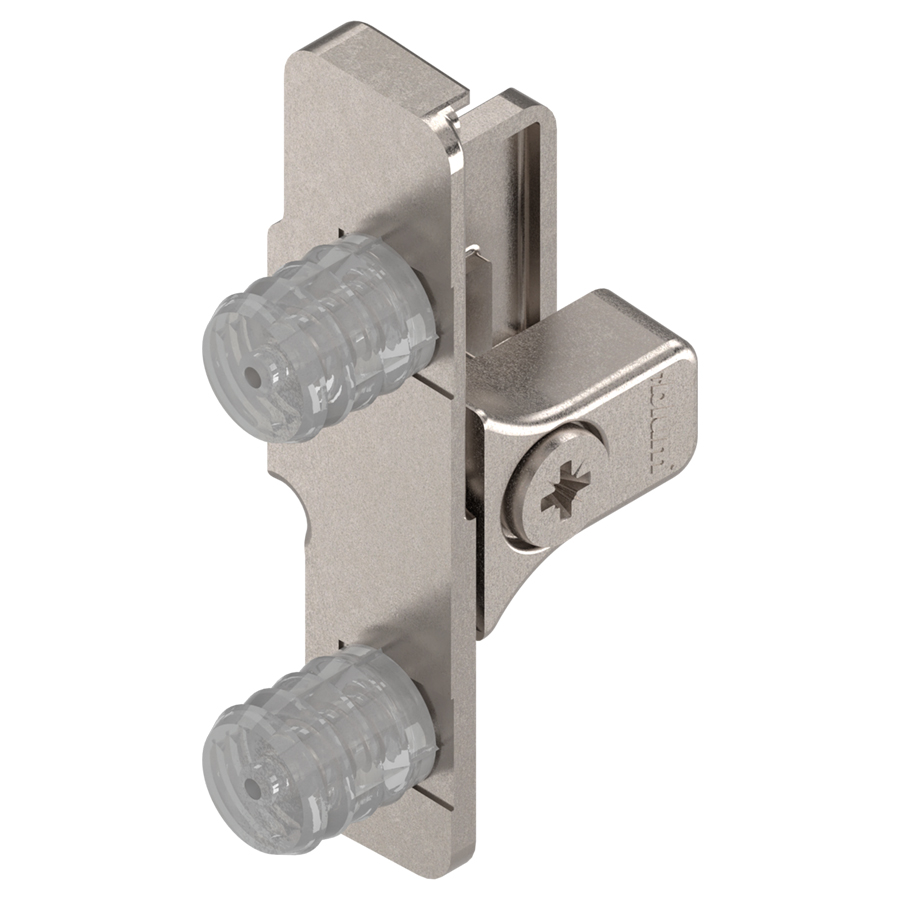

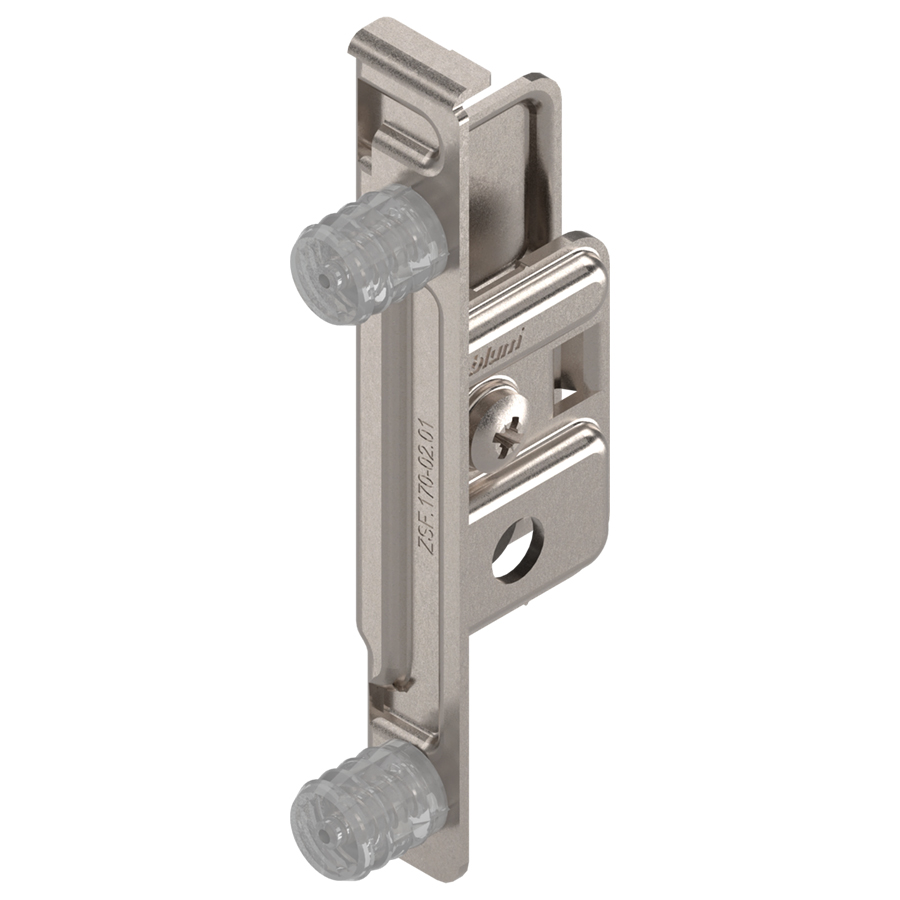

ZSF.1800L
12735Blum metabox stainless steel knock-in front fixing bracket LH		Knock-inLeftStainless Steel£POA  ex vat
ZSF.1800R
67906Blum metabox stainless steel knock-in front fixing bracket RH		Knock-inRightStainless Steel£POA  ex vat

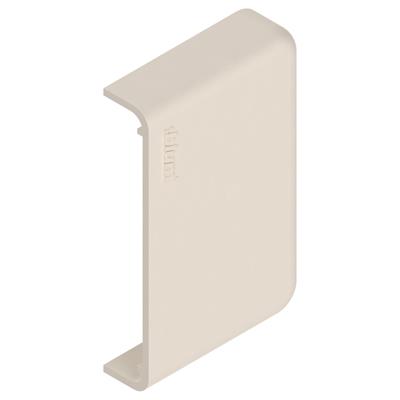

Metabox Cover Caps

Plain Cover Caps suitable for ZSF.1700 & ZSF.1800.

CodeFinish
ZAA.3500
02278Blum Metabox Cover Cap for ZSF.1700/ZSF.1800 Cream		Cream£POA  ex vat

Metabox N-Height Front Fixing Brackets

Knock-in, Left

Front fixing brackets for use with N-Height Metabox.

CodeFixingHand
ZSF.1610.05FRO
43156Blum metabox knock-in front fixing bracket (N Height) LH		Knock-inLeft£POA  ex vat
ZSF.1610.04FRO
73074Blum metabox knock-in front fixing bracket (N Height) RH		Knock-inRight£POA  ex vat

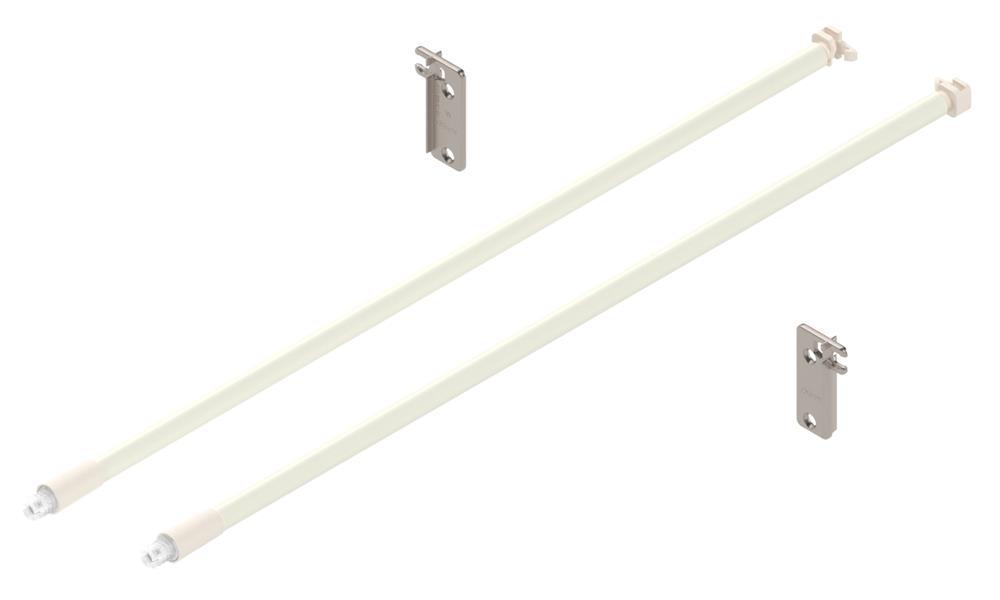

Metabox Gallery Rail

  • Designed for use with a 450mm deep Metabox
  • Raises the sides to create a pan drawer
  • Set includes two rails and back brackets
DownloadGallery Rail - Spec Sheet
CodeFinish
ZRE.421S.ID
78269Blum cream gallery rail (Pack of 2)		Cream£POA  ex vat

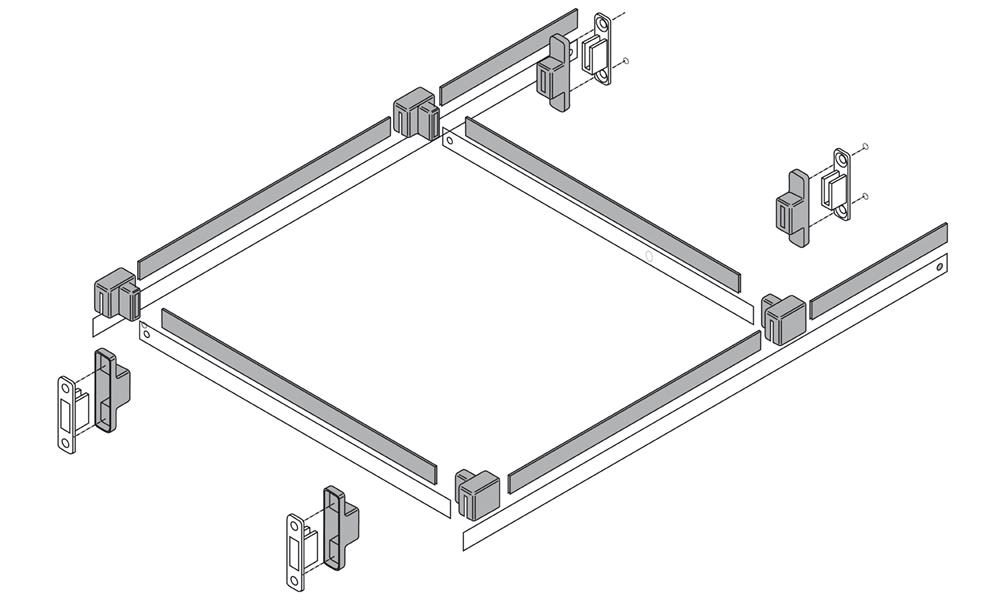

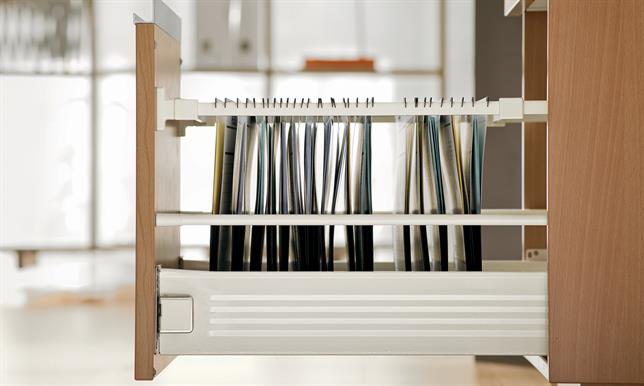

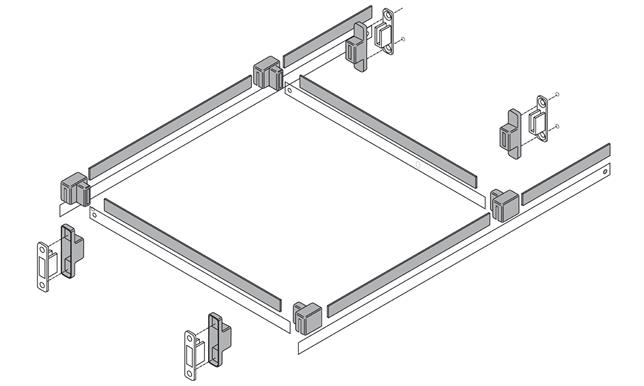

Metabox Hanging File System

Designed for use with either Tandembox or Metabox. Allows the drawer to be used as a hanging file system.

Nominal length 350mm to 550mm. Cabinet width 300mm up to 600mm

CodeFinish
ZRM.5500
45489Blum Cream Hanging File System		Cream£POA  ex vat
ZRM.5500G
72725Blum Grey Hanging File System		Grey£POA  ex vat

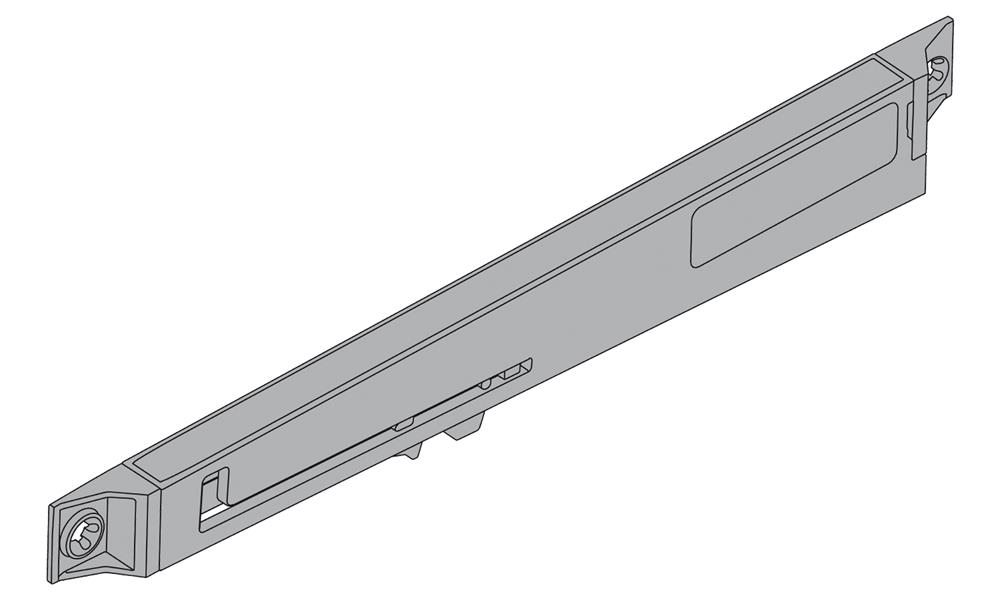

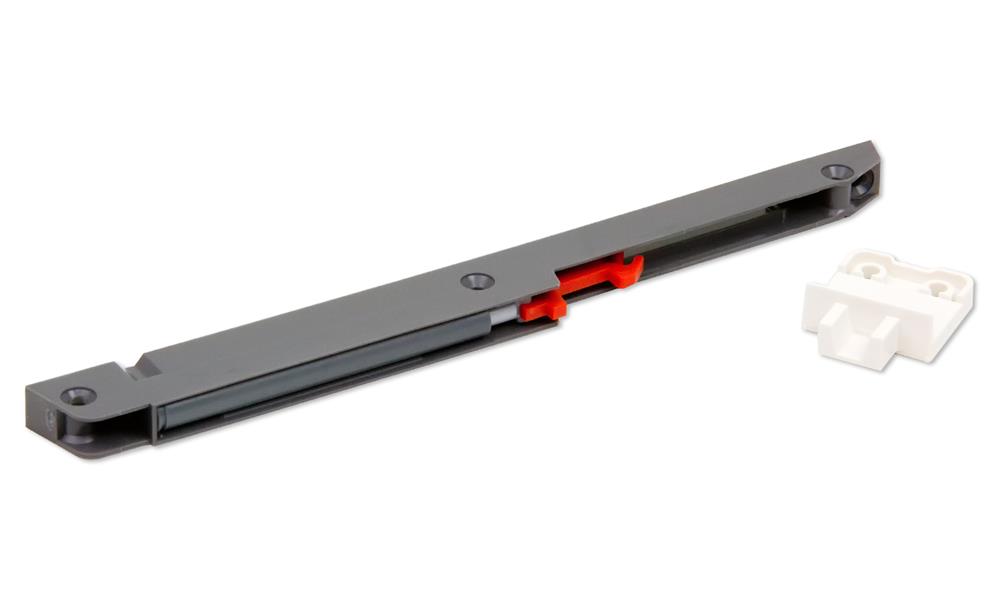

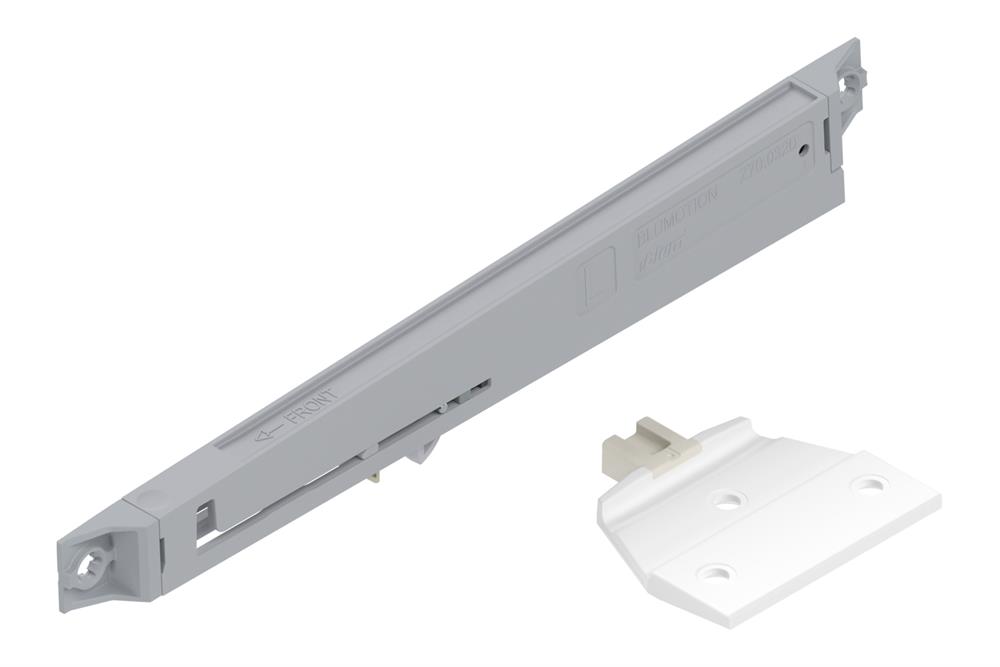

Metabox Soft Close

Allows soft close to be added to a Metabox, includes mechanism and catch.

DownloadBlum Soft Close - Installation
CodeDescription
Z70.0320
37374Blum soft close mechanism for Metabox with catch		Blum soft close mechanism for Metabox with catch£POA  ex vat

INDAmatic Soft Close

Allows soft close to be added to Metabox. Includes soft close unit and catch. 20kg capacity. Replaces the RCAT25.

DownloadInstalllation Instructions
CodeDescription
194.800.001
28378INDAmatic Soft closing for Metabox drawers		INDAmatic Soft closing for Metabox drawers£POA  ex vat

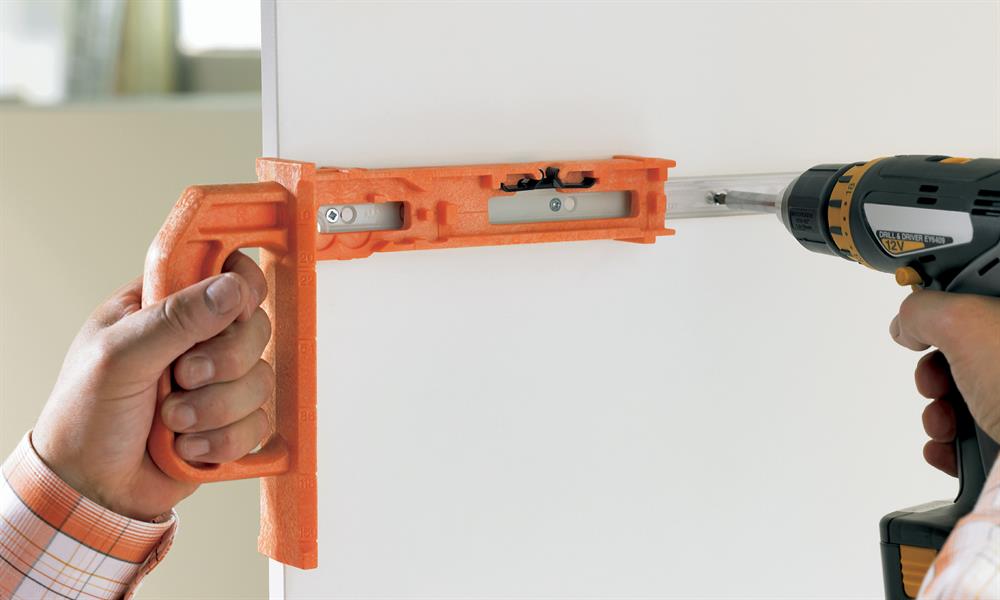

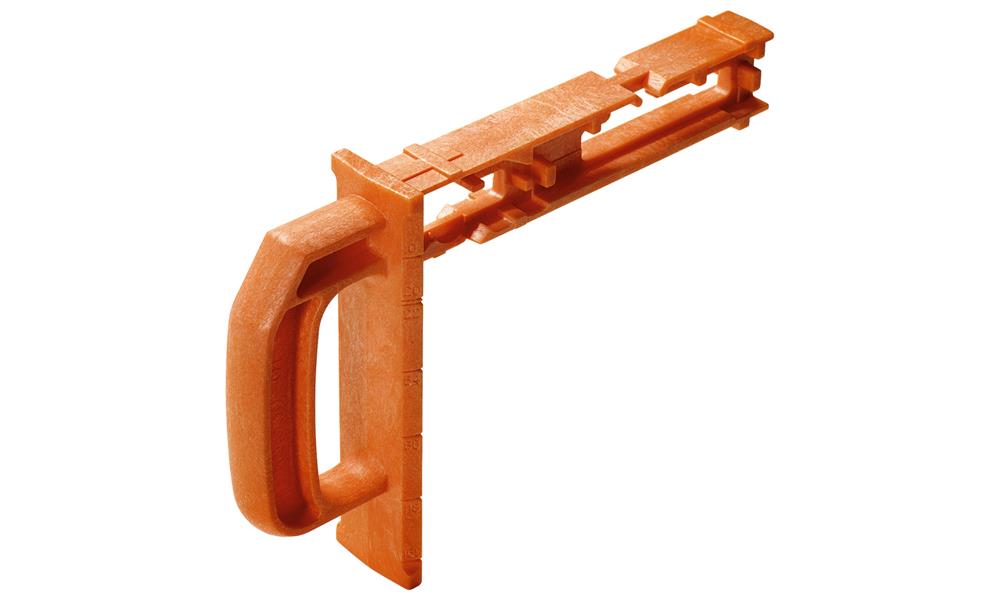

Metabox Jig

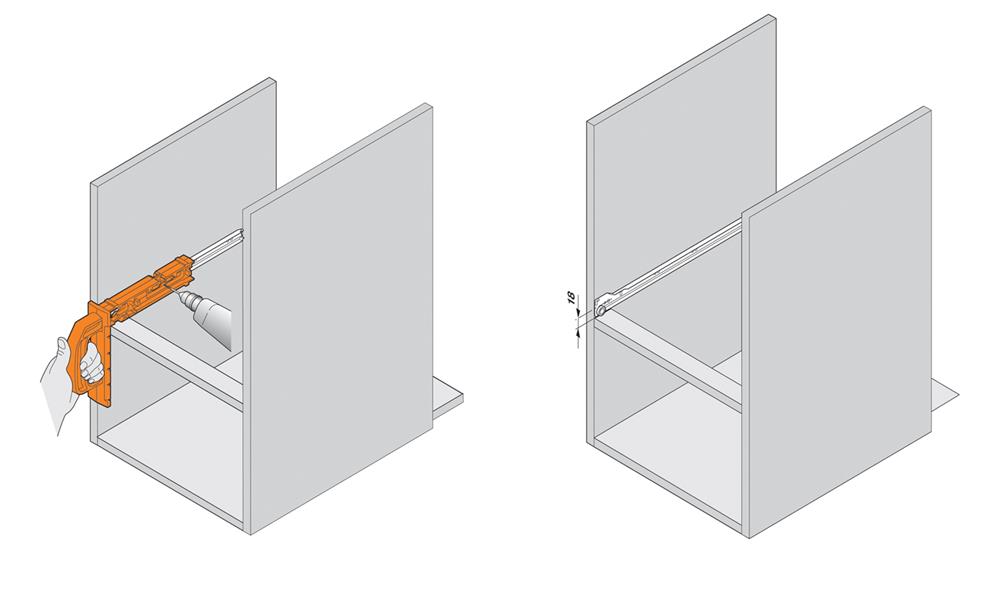

Using the MINIFIX runner jig, the runners are attached squarely to the cabinet.

DownloadMinifix Jig - Spec Sheet
CodeDescription
Special Net Price
65.33000
95944Blum minifix runner jig		Blum minifix runner jig£POA  ex vat
